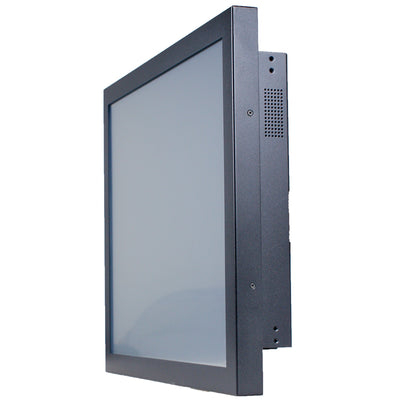

Panel PC 17' HPC-170BR-2930-4G (N2930, 4GB RAM)

  • Intel® BayTrail-M N2930
  • 4GB DDR3 / 9~24V DC
  • 17" Resistive Touch Panel
  • Slim design
  • IP65 frontal
com IVA
1,204.17€

sem IVA
979.00€
Sku: HPC-170BR-2930-4G
Product Type: Panel-PC Resistivo
Vendor: Jetway

Touch-PC 17" IP65 Resistive Touch

  • LCD de 17", 350 nits de alto brilho e retro-iluminação LED

  • Touch resistivo analógico de 5 fios

  • CPU integrado Intel® Bay Trail-M N2930 quad core

  • Memória DDR3L integrada SAMSUNG 4G/1333MHz

  • Suporta dual LAN Gigabit

  • Suporta 6* portas COM (suporte COM2 / COM3 RS422 / 485)

  • Suporta SATA HD de 2,5”

  • 1* slot M-SATA

  • 1* Mini PCI-E

  • Suporta cartão SIM 4G

  • Suporte para entrada de tensão ampla 9~24 V

  • Moldura frontal com protecão IP65

Características

Diagrama

HPC-170BR-2930-4G_diagram

Dimensões

HPC-170BR-2930-4G_Size
Especificações

Display

Front Bezel

– IP65, NEMA 4 rugged protection, metal front bezel

Display Type

– 17.0″ With LED Backlight

Brightness (cd/m²)

– 350 nits

Display Color

– 16.7M

Resolution

– 1280 x1024 @ 60Hz

Viewing Angle (H/V)

– 170°/160°

Pixel Pitch

– 0.264 x 0.264 mm

Aspect Ratio

– 4:3

Contrast Ratio

– 1000:1

Response Time

– 3.5 ms

Operating Temperature

– 0 ~50° C

 Touch Screen

Type

– 5 wires analog resistive type

Active Range

– 337.00 x 269.50mm ±0.2mm

Transparency

– 80 ±3%

Surface Hardness

– ≧3H (ASTM D3363, pressure 750g/45°)

Operating Force

– ≦ 80g

Knock test

– 10,000,000 times keystrokes

Operating Temperature

– -10 ~60° C

 Main System

CPU

– Intel® Bay Trail-M N2930 1.83GHz/QC

RAM

– 4G 1333MHz DDR3L SAMSUNG DRAM

BIOS

– 64MB SPI Flash ROM

Storage

– 1 * 2.5” SATA HDD (SATA2)
– 1 * M-SATA connector

Watchdog Timer

– 256 levels, 0~255 sec.

OS Support

– Windows 7 / 8.1 / 10 / Linux (Option)

 I/O Connector

I/O Ports and Switches

– 1 * USB3.0
– 3 * USB2.0
– 4 * RS232
– 2 * RS232/422/485
– 1 * CRT
– 2 * LAN (Intel® I211AT Gigabit LAN)
– 1 * Line-out (2-CH 3W Speaker)
– 1 * Euro terminal block 9~24V DC input

 Expansion Interface

Expansion

– 1 * PCI-E mini card for WIFI or 4G

 Power

Power Input

– AC version: 100~240V AC-DC 60W power adapter or
– DC version: 9~24VDC with over current protection fuse

Power Consumption

– 34.5W

 Power

Case Dimensions

– 383.0mm*316.0mm*60.0mm

 Certifications

Certifications

– CE, FCC, IP65

 Environment

Temperature

– Operating Temperature: 0 ~ 50° C (with W.T. DRAM/HDD in airflow condition)
– Operating Temperature: 0 ~ 50° C(with W.T. DRAM/HDD)
– Storage Temperature: -20 ~ 65° C

Shock

– Operating: 15G，11ms duration

Vibration

– Operating: 5~500Hz/1 Grms

 Warranty

Warranty

– 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year)

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.

Downloads
HPC-170BR-2930-4G_specs
