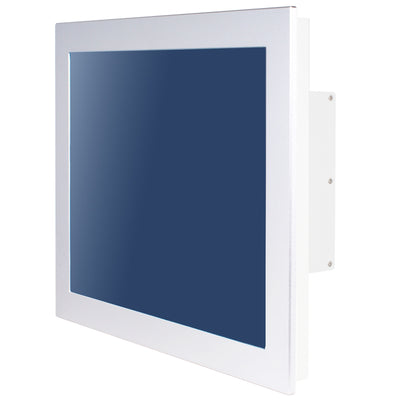

Panel PC 17' HPC170GR-HD1900B (J1900, 4G)

  • Intel® Bay Trail-D J1900
  • 4GB DDR3 / 9~28V DC
  • 17" NEMA4 Resistive Touch
  • Dual Intel® LAN Gigabit
  • IP65 frontal
com IVA
1,186.95€

sem IVA
965.00€
Sku: HPC170GR-HD1900B
Product Type: Panel-PC Resistivo
Vendor: Jetway

Touch-PC 17" Resistive Touch em Alumínio

  • 17.0” 350 nits high brightness TFT LCD with LED backlight

  • 5 Wire Resistive Touch/Anti-Reflection Protection Glass

  • Cable less, Streamlined enclosure for highly efficient heat dissipation Enclosed in robust aluminum casing

  • Strong solid aluminum frame design and Fanless cooling system

  • Support Open frameless design

  • Design for easy Wall mount, Panel Mount, VESA Mount installation

  • A true Flat, easy-to-clean front surface with edge-to-edge design

  • Lockable USB device bracket supported

  • Front bezel meets IP65-rated protection

  • 9-28V DC-input Support, with EOS, OVP design

Características

Diagrama

HPC-170GR-HD1900B_diagram

Dimensões

HPC-170GR-HD1900B_Size
Especificações

 Display

Front Bezel

– IP65, NEMA 4 rugged protection, metal front bezel

Display Type

– 17.0″ With LED Backlight

Brightness (cd/m²)

– 350 nits

Display Color

– 16.7M

Resolution

– 1280 x 1024 @ 60Hz

Viewing Angle (H/V)

– 170°/160°

Pixel Pitch

– 0.264 x 0.264 mm

Aspect Ratio

– 4:3

Contrast Ratio

– 1000:1

Response Time

– 3.5 ms

 Touch Screen

Type

– 5 wires analog resistive type

Active Range

– 337.00 x 269.50mm ±0.2mm

Operating Force

– ≦ 80g

Transparency

– 80 ±3%

Surface Hardness

– ≧3H (ASTM D3363, pressure 750g/45°)

Knock test

– 10,000,000 times keystrokes

 CASE

Panel Material

– Aluminum

Case Material

– Iron

Color

– Silver + white

Coating Requirement

– Spray Paint

 Main System

CPU

– Intel® Bay Trail-D J1900 2.0GHz/QC

RAM

– 4G 1333MHz DDR3L SAMSUNG DRAM

BIOS

– 64MB SPI Flash ROM

Storage

– 1* 2.5” SATA bay
– 1* M.2 connector (2242/2260/2280)

Watchdog Timer

– 256 levels, 0~255 sec.

OS Support

– Windows 7 / 8.1 / 10 / Linux (Option)

 I/O Connector

I/O Ports and Switches

– 2* USB3.0
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232
– 1* CRT
– 1* 8bit GPIO
– 2* LAN (Intel® I211AT Gigabit LAN)
– 1* Locking Jack 9~28V DC input
– 1* Power button

 Expansion Interface

Expansion

– 1 * PCI-E mini card for WIFI or 3G/4G
– 1 * SIM card holder for 3G/4G

 Power

Power Input

– Supports 9-28V DC Power in with over current protection fuse
– Provides 100~240V AC-DC 12V, 60W power adapter

Power Consumption

– 37.5W

 Dimension

Case Dimensions

– 400.0*335.0*74.0mm

 Certifications

Certifications

– CE, FCC, IP65(Front)

 Environment

Temperature

– Operating Temperature: 0 ~ 60° C (with W.T. DRAM/HDD in airflow condition)
– Storage Temperature: -20 ~ 85° C

Shock

– Operating: 15G，11ms duration

Vibration

– Operating: 5~500Hz/1 Grms

 Warranty

Warranty

– 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year)

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.

Downloads
HPC170GR-HD1900B_specs
