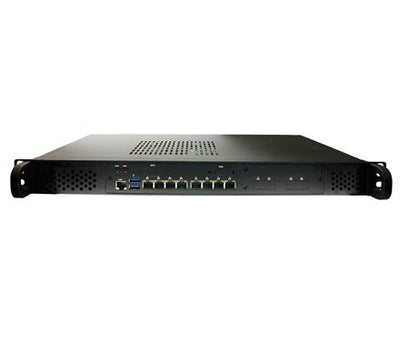

Rackmount PC HBJC153F592-Q170-B (Intel Q170, 8* LAN)
Rackmount PC HBJC153F592-Q170-B (Intel Q170, 8* LAN)

Rackmount PC HBJC153F592-Q170-B (Intel Q170, 8* LAN)

  • Intel® Core 6/ 7 Gen. LGA1151
  • DDR4 SO-DIMM 16GB
  • 8x RJ45, COM (RJ45), TPM
  • 2x 2.5” SATA HDD
  • 1U 250W FLEX
com IVA
772.44€

sem IVA
628.00€
Sku: HBJC153F592-Q170-B
Product Type: PCs Rackmount
Vendor: Jetway

HBJC153F592-Q170-B

Network Rackmount PC de 8 portas gigabit e Intel Skylake/ Kabylake

  • 2* SO-DIMM DDR3L 1333MHz até 16GB
  • 2* USB3.0, 8* RJ45 , 1* HDMI, 1* COM (tipo RJ-45 type), TPM Onboard TPM (opcional)
  • Formato da Board: Thin Mini ITX (170x170mm)
  • PSU FLEX AC 90~240V_200W
Certificação
Especificações

IO Frontal

HBJC153F592-Q170-B_Front

IO Traseiro

HBJC153F592-Q170-B_rear

Diagrama

HBJC153F592-Q170-B_size
Caraterísticas

MB Model

– JNF592-Q170 / MINI-ITX

Part No

Standard

Expansion 4 ports LAN PCI-E Card

2 Paris of Bypass LAN

– HBJC153F592-Q170-B

– HBJC153F592-Q170G4

– HBJC153F592-Q170B4

BIOS

– AMI 128MB SMT Flash ROM

CPU/Chipset

– INTEL® LGA 1151 Socket Core i7/i5/i3/Pentium Processor

Memory

– 2 * SO-DIMM slots DDR3L 1333/1066MHz up to 16GB

Storage

– 2 * 2.5” SATA HDD

Expansion

– 1 * Full size Mini-PCIE
– 1 * SIM Card Slot
– Support TPM (optional)

Network

– 8 * Intel i211AT Gigabit LAN
– 1 * Full-size mini-PCIE slot (802.11 b/g/n + BT 4.0 installed in WIFI model)

Rear Panel I/O

– 1 * Power SWITCH
– AC INPUT / 1U FLEX 200W Power build in

Front Panel I/O

– 8 * RJ45
– 2 * USB3.0
– 1 * COM (RJ45 TYPE)
– 1 * PW LED, 1 * Alarm LED
– 1 * HDMI (Max. Resolution: 4096×2160@24Hz, Not assembled when shipped, wire placed in the parts box)
– 1 * GPIO (Not assembled when shipped, wire placed in the parts box)
– 4 ports GbE PCIe expansion card: HBJC153F592-Q170G4
– 2 pairs of Bypass LAN PCIe expansion card: HBJC153F592-Q170B4

Power Source

– 1U FLEX 200W Power build in
– AC 90~240V input

Compliance

– CE, FCC, RoHS

Temperature

– Operating Temperature: 0 ~ 40° C
– Storage Temperature: -10 ~ 70° C

Dimensions

– 430 (W) x 252 (D) x 44 (H) mm

Packing

– Net Weight: 4.2KG
– Gross Weight: 5KG
– Color Box dimension: 560 (W) * 400 (D) * 380 (H) mm

OS Support

– Skylake CPU support Win7, Win8, Win10.
– Kabylake CPU only support Win10.

Warranty

– 2 Years limited warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.

Downloads
Datasheet
