• Intel® BayTrail-M N2930
  • SO-DIMM DDR3L 8GB
  • 4x GbE, 2 pair ByPass GbE
  • M/B Slim Mini ITX
  • AC 90~240V_250W
com IVA
682.65€

sem IVA
555.00€

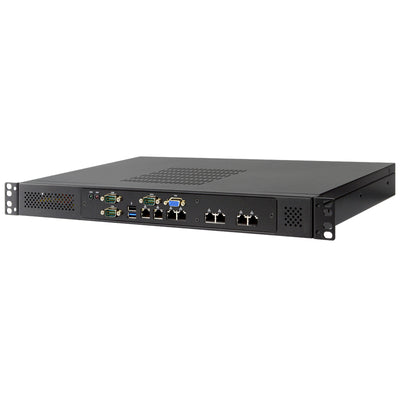

Sku: HBJC153F9HB-2930B4
Product Type: PCs Rackmount
Vendor: Jetway

HBJC153F9HB-2930-B

Intel® Bay Trail-M/D/I Processor

  • Intel® BayTrail-M N2930 Quad Core Processor
  • 2 * SO-DIMM DDR3L 1333MHz up to 8GB
  • 1* USB3.0, 1* USB2.0, 2* GbE, 1 pair ByPass GbE, 1* VGA, 2* COM, 1* GPIO
  • M/B Form Factor: Slim Mini ITX (170x170mm)
  • AC 90~240V_250W FLEX Power

Caraterísticas

I/O Frontal

HBJC153F9HB-2930-B_Front_diagram

I/O Traseiro

HBJC153F9HB-2930-B_Rear_diagram
Especificações

MB Model

– JNF9HB-2930 / Mini-ITX

Part No

Standard

4 ports GbE PCI-E expansion card

2 Paris of Bypass LAN expansion card

– HBJC153F9HB-2930-B

– HBJC153F9HB-2930G4

– HBJC153F9HB-2930B4

BIOS

– AMI 64MB SMT Flash ROM

CPU/Chipset

– Intel® Bay Trail-M N2930 SoC Processor (Default)

Memory

Support 2 * DDR3L 1333/1066MHz SO-DIMM up to 8GB

Storage

– Support 2 * 2.5” SATA Drive bay (only support 2.5″ HDD with a height ≤ 10mm)
– Support 1 * full-size mSATA/Mini-PCI Express shared slot

Expansion

– 1 * full size Mini-PCIe
– 1 * SIM card slot
– Support TPM (optional)

Network

– 4 * Intel i211AT GbE (1 pair support ByPass GbE)
– 1 * full-size Mini-PCIe slot (802.11 b/g/n + BT 4.0 installed in WiFi model)

Rear Panel I/O

– 1 * Power switch
– AC input / 1U FLEX 200W Power build in

Front Panel I/O

– 4 * RJ45 (1 pair support ByPass GbE)
– 1 * USB3.0
– 1 * USB2.0
– 1 * VGA (Max. Resolution: 1920×1080@60Hz)
– 2 * COM
– 1 * PW LED, 1 * Alarm LED
– 1 * GPIO (Not assembled when shipped, wire placed in the parts box)
– 4 ports GbE PCIe expansion card: HBJC153F9HB-2930G4
– 2 pairs of Bypass LAN PCIe expansion card: HBJC153F9HB-2930B4

Power Source

– 1U FLEX 250W Power/ AC 90~240V input
– MB : DC12V input

Compliance

– CE, FCC, RoHS

Temperature

– Operating Temperature: 0 ~ 50°C
– Storage Temperature: -40 ~ 85°C
– Humidity: 10%~95% @40°C (non-condensing)

Dimensions

– 430 (W) x 252 (D) x 44 (H) mm

Packing

– Net Weight: 4.2KG
– Gross Weight: 5KG
– Color Box dimension: 530 (W) * 353 (D) * 142 (H) mm

OS Support

– Windows 7, Windows 8.1, Windows 10, Linux

Warranty

– 2 Years limited warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
