Sku: D68i5-W10P-120/8
Product Type:
Signage Player
Vendor:
Giada
D68

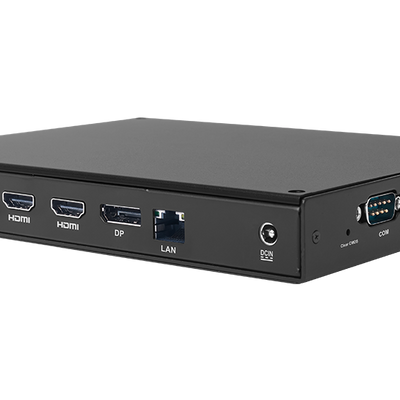

Slim PC do tamanho de um livro com suporte a exibição 4K (Intel 8ª geração Coffee Lake)
Coffee Lake Processor
Competitive Price
The ultra-slim, powerful computer is equipped with Coffee Lake-U, Intel's 8th generation mobile Core processor. It supports dual-channel DDR4 memory and it's flexible to extend the hard drive through the M.2 and MSATA slots.
Triple Display Outputs
Supporting 4K Video Playback
The player adopts Intel® UHD Graphics 620. It supports up to 3 screens simultaneously, via 1 x DP1.2 (4096 x 2304@60Hz), 1 x HDMI2.0 (4096 x 2304@60Hz) and 1 x HDMI 1.4 (4096 x 2304@24Hz) ports, in clone or extended mode. As for video decoding capability, it can support one 4K (4096 x 2304@60Hz) or triple 1080p (1920x1080@60Hz) video decoding.
Conectores I/O
Especificações
Downloads
Especificações
CPU |
CPU |
Intel® CoreTM i5-8259U processor |
Frequency |
3.80 GHz/3.90 GHz |
|
Chipset |
SoC |
|
Processing Units |
4 Cores/4 Cores |
|
TDP |
28 W/15 W |
|
Configurable TDP-up |
NA /25 W |
|
Memory |
Size |
Up to 32 GB |
Type |
2 x SO-DIMM DDR4-2400 MHz |
|
Storage |
Socket 1 |
1 x M-Key M.2 (2280) for SSD |
Socket 2 |
1 x Full-size Mini-PCIe for MSATA |
|
Display |
GPU |
Intel® Iris® Plus Graphics 655 (i5-8259U)
Intel® UHD Graphics 620 (i5-8260U)
|
Graphic Engine |
DirectX 12, OpenGL 4.5, OpenCL 2.1 |
|
Display Interface |
1 x DP (Max. 4096 x 2304 @60 Hz) |
|
Network |
Network Controller |
1 x Realtek RTL 8111H Gigabit Ethernet |
Ethernet Interface |
1 x RJ45 |
|
Wi-Fi/BT |
1 x E-Key M.2 (2230) for Wi-Fi/BT |
|
Mobile Network |
3G/4G colay with 1 x Mini-PCIe for MSATA 1 x SIM Slot |
|
I/O interface |
USB |
5 x USB3.2 Gen2 (10 Gbps) |
Serial Port |
1 x RS232 |
|
Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
Antenna |
1 x Connector for Wi-Fi/BT |
|
System |
TPM |
Optional: TPM2.0 |
Watchdog Timer |
Yes |
|
Auto Power On |
Yes |
|
RTC |
Set up independently every day, a week as a cycle |
|
Remo on |
NA |
|
Power Requirement |
DC-IN, 19 V/3.42 A |
|
Dimensions |
189.6mm x 148.3mm x 26mm (7.46” x 5.83” x 1.02”) |
|
Construction |
Metal, Black |
|
Operating System |
Windows 10 (64bit) /Linux Ubuntu (64bit) |
|
Operating Temperature |
0°C ~40°C (32°F~104°F) @0.7m/s Air Flow |
|
Humidity |
95% @ 40°C (non-condensing) |
|
Certifications |
CE, FCC Class B |
