com IVA
211.56€

sem IVA
172.00€
Sku: LNX-0501-M
Product Type: Switches Não-Gerenciáveis
Vendor: Antaira

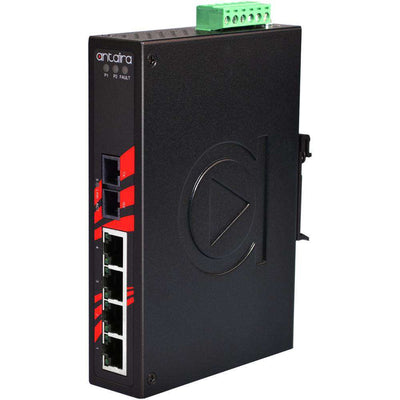

LNX-0501-M

    Especificações

    • Network broadcast storm protection
    • 4-Port 10/100Tx Fast Ethernet
    • Supports Auto MDI/MDI-X Function
    • Store-and-Forward Switching Architecture
    • 2K MAC Address Table
    • Surge Protection: 2,000 VDC support
    • ESD Protection: 6,000 VDC support
    • Redundant Power Input Design – 12~48VDC
    • Built-in 1 relay output for Port Break Alarm
    • IP30 Rugged Aluminum Case Design
    • DIN-Rail and Wall Mount support
    • Operating Temperature range: -10° to 70° C
    • 5-Year Warranty
    • 1-Port 100Fx SC type connector (Multi-mode)

    Descrição

    Antaira’s LNX-0501 series switches are smart 5-port Industrial Unmanaged Ethernet Switches supporting 4-Port 10/100Tx Fast Ethernet and 1-Port 100Fx of SC or ST type connector and support Multi-mode in 2Km, or Single-mode in 30Km.
    The LNX-0501 series switches support 12~48VDC power inputs. This series of switches offer an Extended Operating Temperature model (w/-T) which supports -40°C ~ 75°C. It supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network.
    In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.



    Especificações

    Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    PROCESSING TYPE Store and Forward
    Protocols CSMA/CD
    Switching Architecture Back-Plane (Switching Fabric): 1.0Gbps
    Transfer Rate 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port
    MAC TABLE SIZE 2K
    Ethernet Port 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection 4*10/100
    Fiber 1*100Fx SC type connector Multi-mode (2Km) - 50/125um ~ 62.5/125um
    Wavelength 1310nm (Multi-mode)
    Input Voltage 12~48VDC, Redundant Input
    Overload Current Protection Slow-Blown Fuse
    Connector 1 removable 4-contact terminal block
    Reverse Polarity Protection Yes
    Power Consumption 6.5 Watts
    Housing Metal, IP30 protection
    Dimensions 30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.)
    Weight Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs
    Mounting DIN-Rail mounting, wall mounting (optional)
    Operating Temperature STD: -10° to 70° C (14° to 158° F)
    Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
    Humidity 5 to 95%, (non-condensing)
    EMI IEC60068-2-32
    EMS IEC60068-2-27
    Free Fall IEC60068-2-6
    Shock RoHS Compliant
    Vibration FCC, CE, UL508
    Green 5 Years
    Certifications Liquid error: Index was outside the bounds of the array.
    Warranty Liquid error: Index was outside the bounds of the array.
