Sku: FPC-5210-2M4
Product Type:
GPU Edge box PC
Vendor:
Arbor

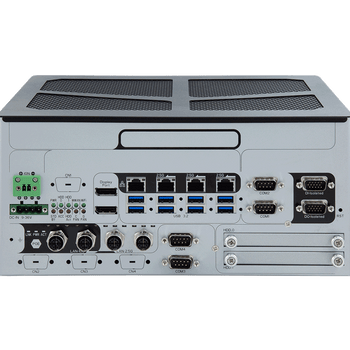

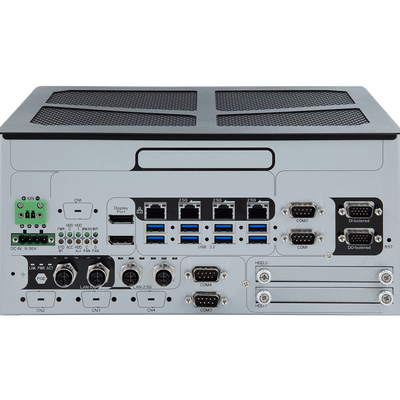

FPC-5210-2M4
Edge AI GPU PC para CPU's Intel® 12ª Geração e suporte para Nvidia® RTX-A4500
- SMART FAN
- Intel Core™ i9/i7/i5/i3 Alder Lake-S de 12ª Geração
- Modulo de Expansão MXM GPU até 120W
- Portas Gigabit PoE 802.3af (15.4W) / 802.3at(25.5W)
- Wide range DC power input (9~36V)
- Dual DP + HDMI + DVI, suporta 4 displays independentes
- Controle ON-OFF / desativação de energia / controle de ignição configurável
- Suporta TPM 2.0 e Time-Sensitive Networking (TSN)
- 2 mPCIe para módulos Wi-Fi/3G/4G/GPS ou expansões I/O
- 1x M.2 B-Key para armazenamento ou 5G/LTE e 1x M.2 E-Key para Wi-Fi / BT
- 1x M.2 M-Key para SSDs NVMe
Especificações
Downloads
Especificações
System
| CPU | Intel® 12th generation Core™ i9/i7/i5/i3 Processor in LGA1700 socket |
|---|---|
| Memory | 2 x 262-pin DDR5 SO-DIMM sockets, supporting 4800 MHz SDRAM up to 64GB |
| Chipset | Intel® R680E |
| Graphics | Integrated Intel® HD Graphics 770 |
| ATA | 2 x Serial ATA ports with 600MB/s HDD transfer rate |
| LAN Chipset FPC-5210-2M4/ FPC-5210-2P4 |
1 x Intel® I219LM GbE controller w/ iAMT 16.0 3 x Intel® I226 2.5GbE controllers 2 x Intel® I226 2.5GbE controllers for PoE 2 x Marvell® 10GbE controllers for PoE |
| LAN Chipset FPC-5210-M4 |
1 x Intel® I219LM GbE controller w/ iAMT 16.0 3 x Intel® I226 2.5GbE controllers 2 x Inte® I210 GbE controllers for PoE 2 x Intel® I226 2.5GbE controllers for PoE |
| Watchdog Timer | 1~255 levels reset |
| TPM | Infineon SLB9670 supports TPM 2.0 |
I/O Interface
| Serial Port | 2 x RS-232/422/485 configurable ports via DB-9 connectors (Default RS232,Switch via BIOS) 2 x RS-232 ports via DB-9 connectors |
|---|---|
| USB Port | 8 x USB 3.2 Gen2 ports |
| LAN Port FPC-5210-2M4 | 4 x RJ-45 connectors for GbE 4 x M12 X-coded connectors by 2 x Intel® I226(2.5GbE) + 2 x Marvell® 10GbE, max 60W supports 802.3at POE+ |
| LAN Port FPC-5210-2P4 | 4 x RJ-45 connectors for GbE 4 x RJ-45 connectors by 2 x Intel® I226(2.5GbE)+ 2 x Marvell® 10GbE, max 60W supports 802.3at POE+ |
| LAN Port FPC-5210-M4 | 4 x RJ-45 connectors for GbE 4 x M12 X-coded connectors by 2 x Intel® I210(1GbE) + 2 x Intel® I226(2.5GbE) supports 802.3af POE |
| Video Port | 2 x DP 1.4a from MXM module or Intel Graphics 1 x HDMI 2.0b female connector 1 x DVI-I female connector for digital/analog video output * Support 4 independent displays |
| DIO Port | 1 x DB15 connector for 8 x digital input ( Dry/ Wet contact ) with 2KV isolation 1 x DB15 connector for 8 x digital output with 2KV isolation |
| Expansion Bus | 1 x Mini-card socket interconnected with SIM card socket for optional Wi-Fi or LTE module(Full size) 1 x SIM socket/1 x CFast socket (outside accessible) |
| Selectable Port | 1 x DB25 connector for DIO (8 in/8 out) port or LPT port (either one, default is DIO) |
| Audio | Mic-in/Line-out |
| Expansion Bus | 1x MXM3.1 TYPE A/B GPU Slot (PCIe Gen5 x16) MXM A4500 Support 2 x mini-PCI Express Slots interconnected with SIM card sockets for optional WiFi/BT/3G/LTE/GPS (PCIex1+USB2.0, Full Size) 3 x SIM socket ( 2 for mPCIe / 1 for M.2 B key ) 1 x M.2 B key (2242/3052/2280) w/(PCIex2+USB3.0+SATA ) interconnected with SIM for 5G / LTE or for storage (either one) 1 x M.2 E key (2230) with PCIex1+USB2.0+CNVi) for Wireless |
Environmental
| Operating Temp. | -20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow (w/ 65W TDP CPU,115W GPU) |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 55°C (non-condensing) |
| Vibration | 5~500Hz 2G rms X,Y,Z axis w/SSD, according to IEC 60068-2-64 |
| Shock | 30 Grms, Half-sine 11 m sec. duration w/ SSD, according IEC60068-2-27 |
Qualification
| Certification | CE, FCC Class A |
|---|
Power Requirement
| Power Input | DC 9~36V input ( w/ 4-pin DC input terminal block) ( V+ ,V+, V-, V-) |
|---|---|
| Ignition Switch | 2-pin teminal block : IGN, GND |
| Power Consumption | Max. 280W |
Storage
| Type | 2 x 2.5” outside accessible drive bays 1 x M.2 B key ( 2242/2280 ) w/ (PCIex2+USB+ SATA ) for storage or LTE expansion ( either one) 1 x M.2 2280 M key supports 2242,2280 devices (PCIe x4 & SATA signal, support boot up function) |
|---|
Mechanical
| Construction | Metal |
|---|---|
| Mounting | Wall-mount |
| Weight | 4.68 Kg (10.32lb) |
| Dimensions (W x D x H) | 285 x 230 x 130mm (11.2” x 9.05” x 5.12”) |
OS Support
| Windows 10 IOT Enterprise 64-bit Linux ( Ubuntu 20.04 ) |
Ordering Information
| FPC-5210-2M4 | Embedded GPU Computer, Bare BOM, w/2x 10GbE POEs, M12 type |
|---|---|
| FPC-5210-2P4 | Embedded GPU Computer, Bare BOM, w/2x 10GbE POEs, RJ45 type (BTO) |
| FPC-5210-M4 | Embedded GPU Computer, Bare BOM, w/4x M12 POEs |
