• Intel Raptor Lake/ Alder Lake-S
  • 64GB DDR5 4800Mhz SO-DIMM
  • Modulo MXM GPU até 120W
  • 4x GbE, 2x 10GbE, 2x 2.5GbE, PoE
  • DC 9V - 36V
com IVA
1,943.40€

sem IVA
1,580.00€
Sku: FPC-5211-M4
Product Type: PCs Visão Artificial
Vendor: Arbor

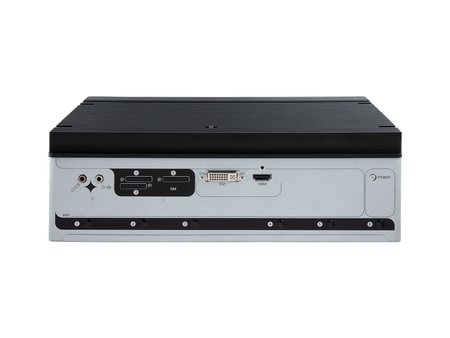

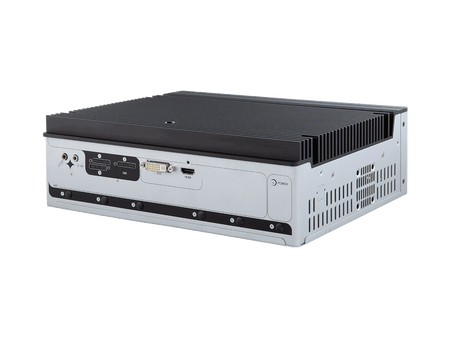

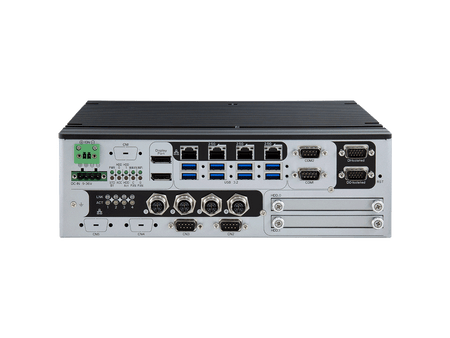

FPC-5211-M4

Edge AI GPU PC para CPU's Intel® 12 / 13 Gen. Alder Lake-S / Raptor Lake-s, com 4 saídas M12 e 2 portas PoE

  • Design Fanless (Embedded heat pipes cooling solution)
  • Intel Core™ i9/i7/i5/i3 Alder Lake-S / Raptor Lake-s, de 12 / 13 Geração
  • Modulo de Expansão MXM GPU 60W
  • 4x portas Gigabit PoE 802.3af (15.4W) (FPC-5211-M4)
  • Portas Gigabit PoE 802.3af (15.4W) / 802.3at(25.5W) (FPC-5211-2M4/2P4)
  • Dual DP + HDMI + DVI, suporta 4 displays independentes
  • Controle ON-OFF / desativação de energia / controle de ignição configurável
  • Suporta TPM 2.0 e Time-Sensitive Networking (TSN)
  • 2 mPCIe para módulos Wi-Fi/3G/4G/GPS ou expansões I/O
  • Conectores frontais de facil acesso
  • 1x M.2 B-Key para armazenamento ou 5G/LTE e 1x M.2 E-Key para Wi-Fi / BT
  • 1x M.2 M-Key para SSDs NVMe
Especificações

System

CPU Intel® 12th / 13th generation Core™ i9/i7/i5/i3 processor in LGA1700 socket (Max 35W CPU)
Memory 2 x 262-pin DDR5 SO-DIMM sockets, supporting 4800 MHz SDRAM up to 64GB (ECC/ Non-ECC)
Chipset Intel® R680E
Graphics Integrated Intel® HD Graphics 770
ATA 2 x Serial ATA ports with 600MB/s HDD transfer rate

LAN Chipset
FPC-5211-2M4/
FPC-5211-2P4

1 x Intel® WGI219LM GbE controller w/ iAMT 16.0
3 x Intel® I226 2.5GbE controllers
2 x Intel® I226 2.5GbE controllers for PoE
2 x Marvell® 10GbE controllers for PoE

LAN Chipset
FPC-5211-M4

1 x Intel® WGI219LM GbE controller w/ iAMT 16.0
3 x Intel® I226 2.5G GbE controllers
2 x Inte® I210 GbE controllers for PoE
2 x Intel® I226 2.5G GbE controllers for PoE

LAN Chipset
FPC-5211-P6

1 x Intel® WGI219LM GbE controller w/ iAMT 16.0
3 x Intel® I226 2.5GbE controllers
6 x Inte® I210 GbE controllers for PoE
Watchdog Timer 1~255 levels reset
TPM Onboard TPM 2.0

I/O Interface

Serial Port 2 x RS-232 / 422 / 485 configurable ports via DB-9 connectors (Default RS232, Switch via BIOS)
2 x RS-232 via DB-9 connectors
USB Port 8 x USB 3.2 / 2.0 ports

LAN Port(POE)
FPC-5211-2M4

4 x RJ-45 connectors for GbE
4 x M12 X-coded connectors by
2 x Intel® I226(2.5GbE) +
2 x Marvell® 10GbE, max 60W
supports 802.3at POE+

LAN Port
FPC-5211-2P4

4 x RJ-45 connectors for GbE by
2 x Intel® I226(2.5GbE) +
2 x Marvell® 10GbE, max 60W
supports 802.3at POE+

LAN Port
FPC-5211-M4

4 x RJ-45 connectors for GbE
4 x M12 X-coded connectors by
2 x Intel® I210(1GbE) +
2 x Intel® I225(2.5GbE) supports 802.3af POE

LAN Port
FPC-5211-P6

4 x RJ-45 connectors for GbE
6 x RJ-45 connectors by Intel® I210(1GbE) max
60W supports 802.3af POE
Video Port 2 x DP 1.4a from MXM module or Intel Graphics
(Default Intel graphics switch via BIOS)
1 x HDMI 2.0b female conn. for digital video output
1 x DVI-I female conn. for digital/ analog video output
* Support 4 independent displays
Expansion Bus 1 x MXM3.1 TYPE A/B GPU Slot (PCIe Gen5 x16) MXM A2000 support
2 x mPCIe Slots interconnected with SIM card sockets for optional Wi-Fi/BT/3G/LTE/GPS (PCIex1 + USB2.0, Full Size)
1 x M.2 B key (2242/3052/2280) w/ (PCIex2 + USB3.0 + SATA) interconnected with SIM for 5G / LTE expansion or for storage (either one)
1 x M.2 E key ( 2230) with PCIex1+USB2.0+CNVi) for Wireless
Digital I/O Port 1 x DB15 conn.for 8 x digital input (Dry/ Wet contact) with 2KV isolation
1 x DB15 conn.for 8 x digital output with 2KV isolation
Audio Mic-in / Line-out

Environmental

Operating Temp.
FPC-5211-2M4 /
FPC-5211-2P4
-20 ~ 50°C (-4 ~122°F), ambient w/ air flow
-20 ~ 60°C (-4 ~140°F), ambient w/ air flow (w/ External SMART FAN kit)
*A2000 GPU 100% loading without throttling
Operating Temp.
FPC-5211-M4
FPC-5211-P6
-20 ~ 50°C (-4 ~ 122°F), ambient w/ air flow
-20 ~ 65°C (-4 ~ 149°F), ambient w/ air flow ( w/ External SMART FAN kit)
*A2000 GPU 100% loading without throttling
Storage Temp. -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity 10 ~ 95% @ 60°C (non-condensing) (2M4/2P4)
10 ~ 95% @ 65°C (non-condensing) (M4/P6)
Vibration 5~500Hz 3G rms X,Y,Z axis w/SSD, according to IEC 60068-2-64
Shock 50 Grms, Half-sine 11 m sec. duration w/ SSD, according IEC60068-2-27

OS Support

System Windows 10 IOT Enterprise 64-bit
Linux ( Ubuntu 20.04 )

Storage

Type 2 x 2.5” outside accessible drive bays
1 x M.2 B key (2242/2280) w/ (PCIex2 + USB + SATA) for storage or LTE expansion (either one)
1 x M.2 2280 M key supports 2242, 2280 devices (PCIe x4 & SATA signal, support boot up function)

Qualification

Certification CE, FCC Class A, E mark.

Power Requirement

Power Input DC 9~36V input (w/ 4-pin DC input terminal block)(V+, V+, V-, V-)
Ignition Switch 2-pin terminal block: IGN, GND
Power Consumption Max. 180W

Mechanical

Construction Aluminum alloy
Mounting Wall-mount
Weight 5.83 Kg (12.85lb)
Dimensions (W x D x H) 285x230x 90mm (9.84” x11.50” x 3.54”),Fanless
285x230x110mm (9.84” x11.50” x 4.33”),w/ FAN

Ordering Information

FPC-5211-2M4 Edge AI GPU Computer Bare BOM, w/2x 10GbE PoEs, M12 type
FPC-5211-2P4 Edge AI GPU Computer Bare BOM, w/2x 10GbE PoEs, RJ45 type (BTO)
FPC-5211-M4 Edge AI GPU Computer Bare BOM, w/4x M12 PoEs
FPC-5211-P6 Edge AI GPU Computer Bare BOM, w/6x POEs
