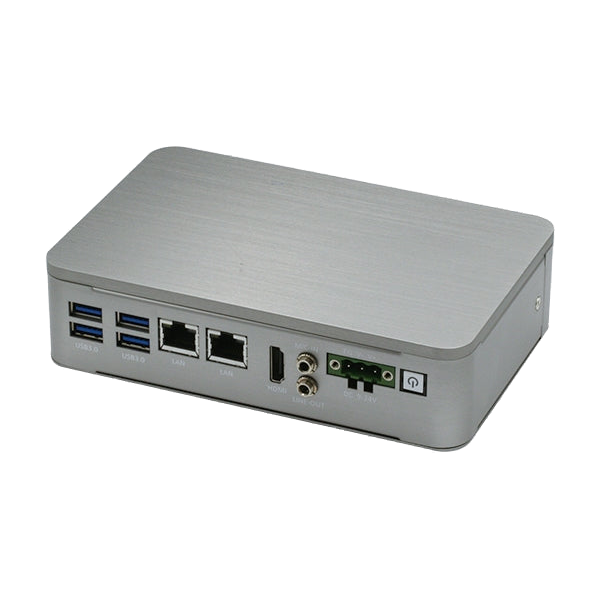

AAEON BOXER-6405M (Intel® Celeron/ Pentium, 2 LAN, 4 COM, 9-24V)
Price excludes VAT
430.00€
Sale price
Price excludes VAT
430.00€
Regular price
Total with VAT (23%): 528.90€
Shipping calculated at checkout.
BOXER-6405M-A1-1011
Intel® N3350
BOXER-6405M-A2-1011
Intel® N4200

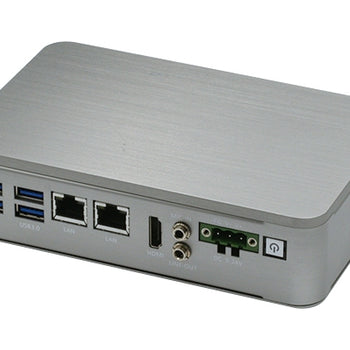

Fanless Box PC with Intel® Celeron/ Pentium processors
- Slim Boxer Design: 42mm
- Rich I/O, designed for automatic system control
- Wide operating temperature: -20°C ~ 60°C
- Gigabit Ethernet x 2, USB x 4
- Wall-mount support
The BOXER-6405M is an embedded box computer designed for a wide range of industrial applications. Powered by an Intel Pentium or Celeron processor and supporting up to 8GB of DDR3L SODIMM memory, it features one full-size and one half-size mini-PCIe slot supporting expansion options including mSATA, SIM Card, and PCIe.
Included
- Wall-Mount Bracket x 2
- 3-pin DC-In power connector x 1
- BOXER-6405M
| SYSTEM | |
| CPU | Intel® Celeron/Pentium™ processor |
| CHIPSET | Intel® System on Chip |
| SYSTEM MEMORY | DDR3L SODIMM slot x 1, supports 1867MHz and up to 8GB |
| DISPLAY INTERFACE | HDMI Type A x 1 for HDMI v1.4b VGA x 1 |
| STORAGE DEVICE | HDD/SSD (mSATA BOM option) |
| ETHERNET | Intel® i211-AT x 2 |
| I/O | Power button x 1 USB Type A x 4 for USB 3.2 Gen 1 HDMI Type A x 1 for HDMI v1.4b RJ-45 x 2 for GbE LAN with LED indicator (i211-AT x 2) Power input x 1 3-pin terminal block by default (+, - , GND) Co-layout: 3-pin terminal block and lockable DC-in jack,) Co-layout internal DC Mic-in x 1, Line-out x 1 RS-232/422/485 x 4 with automatic flow control (switchable via BIOS) VGA x 1 Remote On/Off Antenna opening x 2 |
| EXPANSION | Full-size Mini PCIe slot x 1 (PCIe/USB/SIM slot), one screw Half-size Minicard slot x 1 (optional for mSATA,PCIE/mSATA) |
| INDICATOR | Power LED x 1, HDD activity LED x 1 |
| OS SUPPORT | Windows® 10, Windows® 10 IoT, Linux |
| POWER SUPPLY | |
| POWER REQUIREMENT | 3-pin Phoenix DC input 9~24V without power protection |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 6.54" x 4.2" x 1.65" (166mm x 106.6mm x 42mm) |
| GROSS WEIGHT | 3.6 lb (1.6kg) |
| NET WEIGHT | 1.7 lb (0.8 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) with W.T. mSATA (according to IEC68-2-14, with 0.5 m/s airflow; with industrial devices) |
| STORAGE TEMPERATURE | -22°F ~ 140°F (-30°C ~ 60°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operating – mSATA 1 Grms /5 ~ 500Hz/ operating - HDD |
| CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-6405M]
| PART NUMBER | BOXER-6405M-A1-1011 | BOXER-6405M-A2-1011 |
|---|---|---|
| CPU | Intel® N3350 | Intel® N4200 |
| RAM | — | — |
| LAN | 2 | 2 |
| USB | USB 3.2 Gen 1 x 4 | USB 3.2 Gen 1 x 4 |
| RS-232 | — | — |
| RS-232/422/485 | 4 | 4 |
| DIGITAL I/O | — | — |
| AUDIO | MIC-in, Line-out | MIC-in, Line-out |
| STORAGE | SSD/HDD x 1 | SSD/HDD x 1 |
| DISPLAY | VGA/HDMI x1 | VGA/HDMI x1 |
| EXPANSION | Full-size Minicard x1 Half-size Minicard x 1 | Full-size Minicard x1 Half-size Minicard x 1 |
| MOUNTING | Wall mount | Wall mounting |
| POWER | 9~24V | 9~24V |
| OPERATING TEMPERATURE | -20°C ~ 60°C | -20°C ~ 60°C |
| 125530040F | Power Adapter |
| 1702031802 | Power cord (US type) |
| 1702031803 | Power cord (European type) |
| 170203180E | Power cord (Japanese type) |
| 9741238H00 | WiFi module & antenna |
| 9741EG25G0 | 4G module & antenna (for global use) |
| 9741640404 | DIN Rail Mount Kit |
