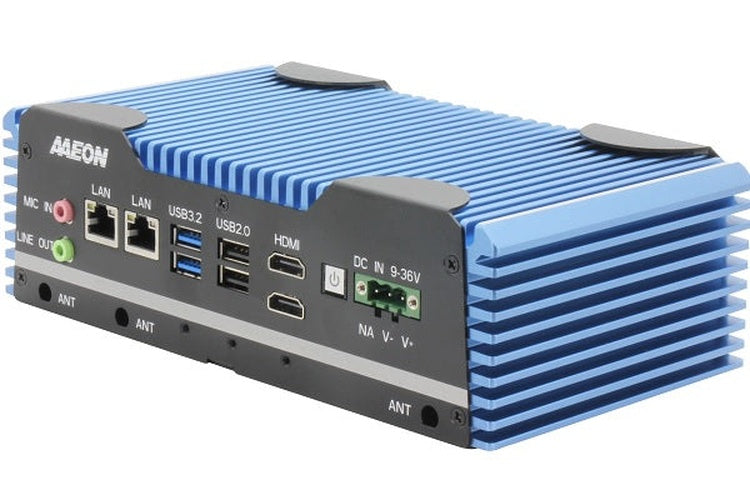

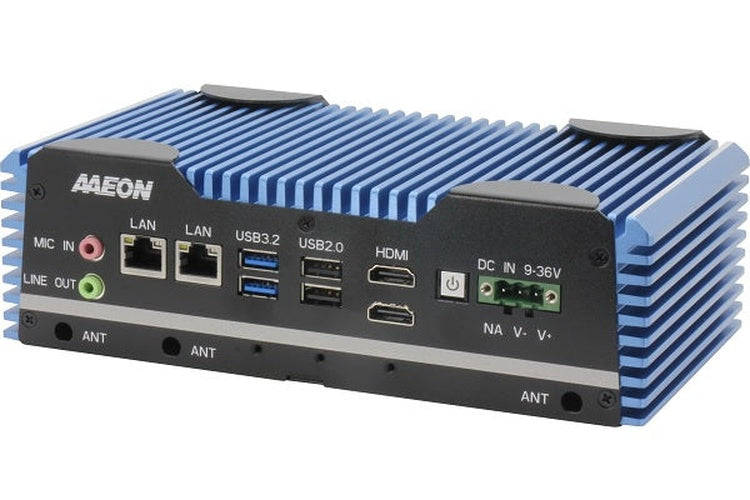

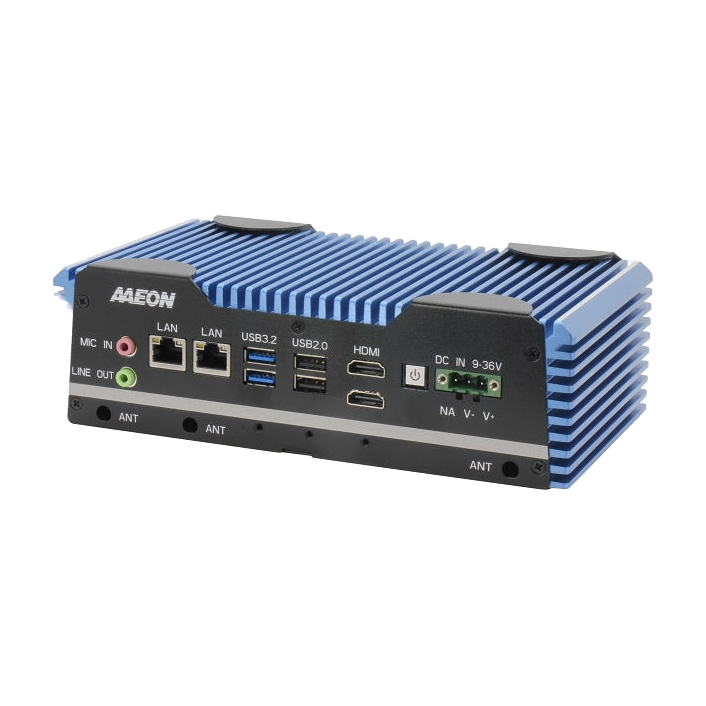

AAEON BOXER-6617-ADN (Intel Alder Lake-N, DDR5, GLAN 2.5, 9-36V)

BOXER-6617-ADN-A1-1010

Intel® Processor N50

BOXER-6617-ADN-A2-1010

Intel® Processor N97

BOXER-6617-ADN-A3-1010

Intel® Core™ i3- N305

BOXER-6617-ADN-A4-1010

Intel Atom® x7211E

Fanless Box PC com CPU Alder Lake-N Intel® Core™ i3-N305, Intel Atom® x7211E e Intel® N-series

• Intel® Core™ i3 Processor N/Intel® Atom® Processor X/Intel® Processor N-series SoC (formerly Alder Lake-N)
• DDR5 4800MHz SODIMM x 1
• 2.5GbE x 2
• M.2 2280 M-Key/M.2 2230 E-Key
• M.2 3052 B-Key for 5G
• SuperSpeed+ USB 3.2 Gen 2
• Onboard TPM 2.0
• Wide-range 9 ~ 36V DC input
• Ultra-wide operating temperature range, -20~70°C

Harnessing the potential of the Intel® Core™ i3-N305, Intel Atom® x7211E and Intel® Processor N-series platforms, the new BOXER-6617-ADN represents the pinnacle of robust, efficient industrial computing. With Intel® architecture, a rugged chassis design, dynamic expansion and a broad range of high-speed interfaces, it delivers a rugged, fanless solution that ensures reliable, high-level operation across a wide range of applications, including AMR, smart city and CNC devices, even in the harshest environments.

Low-Power, High-Performance Processing

The BOXER-6617-ADN's efficient yet powerful processor architecture is complemented by SODIMM-based, high-bandwidth DDR5 memory. This combination enables enhanced data analysis and decision-making while maintaining lower power consumption. As a result, it not only delivers high-performance solutions but also reduces ongoing costs when used in large-scale automation and smart city projects.

Dynamic Expansion for Wireless Communication

Utilizing SSD-based storage through a 2.5" SATA HDD and an M.2 M-Key slot, the BOXER-6617-ADN removes development constraints, enabling the implementation of complex algorithms required for Edge-based smart city applications. Furthermore, the BOXER-6617-ADN's M.2 E-Key and B-Key slots support 5G, Wi-Fi, and LTE connectivity, facilitating seamless Edge-to-cloud data exchange and wireless communication with industrial machinery in industrial automation deployments.

Robust Hardware for an Extended Lifecycle

Featuring a wide temperature range of -20°C ~ 70°C, a wide 9V ~ 36V DC input range with circuit protection, and a design engineered to withstand high levels of vibration and shock, the BOXER-6617-ADN is built for demanding environments, making it an ideal choice for factory deployment. Its longevity is further enhanced by its fanless chassis design and lockable I/O connectors. This design not only prevents dust ingress but also improves operational durability and resistance to environmental wear and tear.

Compact Connectivity for AMR Accuracy

At just 214mm x 115.5mm x 65.8mm, the BOXER-6617-ADN has a compact form factor. Despite this, it houses a complete array of interfaces for high-speed communication with external devices. Six DB-9 ports provide RS-232/422/485, while dual 2.5GbE LAN, dual HDMI, and a 10-pin terminal block provide the communication protocols required for precise AMR functionality. The system’s flexible storage also provides the resources needed for AGV route mapping.

Included

• Wall-Mount Bracket x 2
• Screw Package x 1
• 3 Pin DC-In Power Connector x 1
• BOXER-6617-ADN
