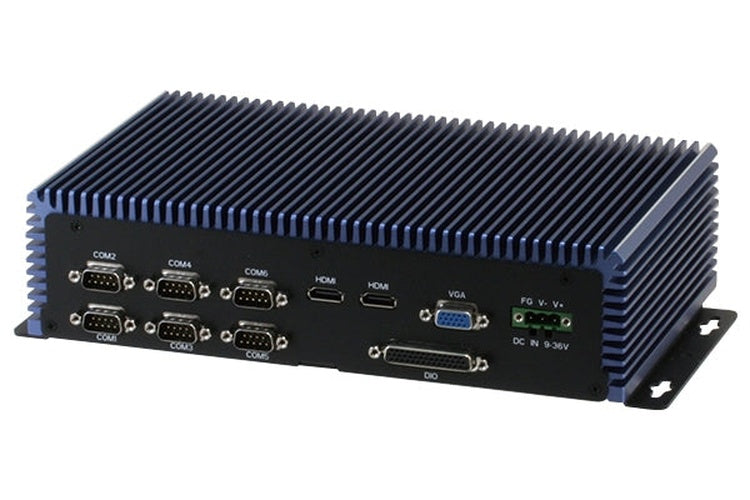

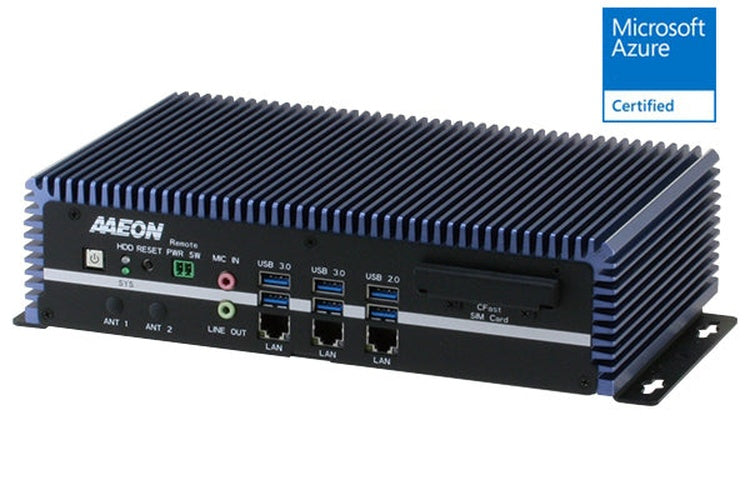

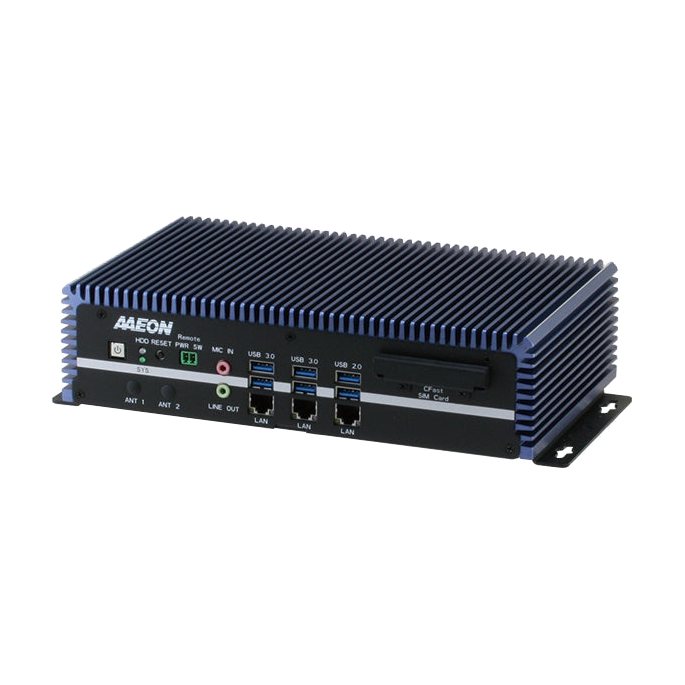

AAEON BOXER-6639 (Intel 6 Gen, 3 LAN. 4 USB3, 6 COM, 9-36VDC)
BOXER-6639-A1-1110
BOXER-6639-A2-1110
BOXER-6639-A3-1110
BOXER-6639-A4-1110
BOXER-6639-A5-1110
Fanless Embedded Box PC with Socket Type 6th Generation Intel® Processor and Q170 Chipset
- Extreme Computing Power & Graphics Display Capability
- Desktop-grade socket-type processor with longevity support
- Supports DDR4 ECC or Non-ECC SODIMM, up to 32GB
- Supports VGA + HDMI x 2 Triple Display, HDMI 4K Display
- Supports USB 3.2 Gen 1 x 4 and USB 2.0 x 2
- Supports industrial-grade Intel® GbE LAN x 3
- Supports BIOS-selectable RS-232/422/485 x 6
- Compact size and easy-access design
- Wide-range 9~36V DC input
- 34-bit digital input and output
Powered by a 6th Gen Intel® Core™ desktop processor with longevity support and a flexible mechanical design that allows the CPU to be replaced according to customer requirements, 2 x HDMI with 4K resolution, and 3 x industrial GbE LAN with an industrial-grade Intel® I210 chipset, the BOXER-6639 delivers excellent performance. Its rugged chassis design is ideally suited to smart control systems, machine vision inspection, digital signage, surveillance, and machine manufacturers.
With support for an extended operating temperature range from -20°C to 55°C and a 9 ~ 36V wide-range DC input, this BOX PC enhances operation in harsh factory environments.
AAEON’s BOXER-6639 features a variety of serial I/O connectors, including 6 COM ports, 4 USB 3.2 Gen 1 ports, and 34-channel DIO, offering flexible configuration and expansion capabilities. This allows customers to efficiently connect multiple systems to the central controller for various automation applications.
Packing list
- Wall-mount bracket x 2
- Screw package x 1
- BOXER-6639
| SYSTEM | |
| CPU | Intel® Core™ i7-7700T, 2.9 GHz Intel® Core™ i5-7500T, 2.7 GHz Intel® Core™ i7-6700TE, 2.4 GHz Intel® Core™ i5-6500TE, 2.3 GHz Intel® Core™ i3-6100TE, 2.7 GHz Intel® Pentium® G4400TE, 2.4 GHz Intel® Celeron® G3900TE, 2.3 GHz |
| CHIPSET | Q170 |
| SYSTEM MEMORY | DDR4 1866/2133 SODIMM slot x 2, up to 32 GB, ECC or Non-ECC support |
| DISPLAY INTERFACE | VGA, HDMI |
| STORAGE DEVICE | CFast, SATA HDD/SSD (optional: x2) |
| ETHERNET | Intel® i210, 10/100/1000Base-TX x 3 |
| I/O | RS-232/422/485 x 6 USB 3.2 Gen 1 x 4 USB 2.0 x 2 VGA x 1 HDMI x 2 Line-out x 1 Mic-in x 1 LAN x 3 CFast slot x 1 SIM slot x 1 Antenna holes x 2 34bit DIO x 1(A2 & A4 SKU) Power switch Power input Remote power switch Reset button |
| EXPANSION | Full-size Mini-Card x 1 (PCI-E + USB, with SIM slot) Full-size Mini-Card x 1 (PCI-E + USB, optional for mSATA and SIM slot) |
| INDICATOR | Power LED HDD activity LED |
| OS SUPPORT | Windows® 7 (32/64-bit), Windows® 8/8.1 (64-bit) , Windows® 10 (64-bit) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 - 36V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wall mounting, DIN rail (mounting kit is optional) |
| DIMENSIONS (W X H X D) | 10.4" x 2.6" x 6.1" (264.2mm x 66.5mm x 156.2mm) |
| GROSS WEIGHT | 7.7 lb (3.5 kg) |
| NET WEIGHT | 6.6 lb (3 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 131°F (-20°C ~ 55°C) (according to IEC68-2-14, with 0.5 m/s airflow; with industrial devices) |
| STORAGE TEMPERATURE | -49°F ~ 176°F (-45°C ~ 80°C) |
| STORAGE HUMIDITY | 5~95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 2 Grms/ 5 ~ 500Hz/ operating – CFast™ card 1 Grms/ 5~ 500Hz/ operating – HDD |
| SHOCK RESISTANCE | - |
| CERTIFICATION | CE/FCC class A |
Ordering information [BOXER-6639]
| PART NUMBER | BOXER-6639-A1-1110 | BOXER-6639-A2-1110 | BOXER-6639-A3-1010 | BOXER-6639-A4-1010 |
|---|---|---|---|---|
| CPU | — | — | — | — |
| RAM | — | — | — | — |
| LAN | 3 | 3 | 3 | 3 |
| USB | USB 3.2 Gen 1 x 4 USB 2.0 x 2 | USB 3.2 Gen 1 x 4 USB 2.0 x 2 | USB 3.2 Gen 1 x 4 USB 2.0 x 2 | USB 3.2 Gen 1 x 4 USB 2.0 x 2 |
| RS-232/422/485 | 6 | 6 | 6 | 6 |
| DIO | — | 34 bit | — | 34 bit |
| AUDIO | Mic-in, Line-out | Mic-in, Line-out | Mic-in, Line-out | Mic-in, Line-out |
| STORAGE | 2.5” SATA drive bay x 1, CFast™ slot x 1 | 2.5” SATA drive bay x 1, CFast™ slot x 1 | 2.5” SATA drive bay x 2, CFast™ slot x 1 | 2.5” SATA drive bay x 2, CFast™ slot x 1 |
| DISPLAY | VGA x 1, HDMI x 2 | VGA x 1, HDMI x 2 | VGA x 1, HDMI x 2 | VGA x 1, HDMI x 2 |
| EXPANSION | Full-size Mini-Card x 2 | Full-size Mini-Card x 2 | Full-size Mini-Card x 2 | Full-size Mini-Card x 2 |
| MOUNTING | Wall mounting | Wall mounting | Wall mounting | Wall mounting |
| POWER | 9-36V | 9-36V | 9-36V | 9-36V |
| TEMPERATURE | -4°F ~ 131°F (-20°C ~ 55°C) | -4°F ~ 131°F (-20°C ~ 55°C) | -4°F ~ 131°F (-20°C ~ 55°C) | -4°F ~ 131°F (-20°C ~ 55°C) |
Accessories
| 1255X00059 | Power Adapter |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (Europe) |
| 170203180E | Power Cord (Japan) |
| 9741663902 | DIN rail mounting kit |
| 9741663900 | I/O dust cover kit. For BOXER-6639 (A1 & A3 SKUs) |
