AAEON BOXER-6639M (Intel 6/ 7 Gen, 3GLAN, 4PoE, 6COM, 9-36VDC)
Price excludes VAT
1,100.00€
Sale price
Price excludes VAT
1,100.00€
Regular price
Total with VAT (23%): 1,353.00€
Shipping calculated at checkout.
BOXER-6639M-A1-1010
Machine vision system with 6th and 7th generation processors and PoE
- Extreme computing power & graphics display capability
- Desktop-grade socketed processor with longevity support
- DDR4 ECC or non-ECC SODIMM, up to 32GB
- VGA + HDMI x 2 for triple-display output, with HDMI 4K display support
- 802.3at GbE PoE x 4 (max. 80W in total)
- USB 3.2 Gen 1 x 6
- Industrial-grade Intel® GbE LAN x 3
- Supports BIOS-selectable RS-232/422/485 x 6
- Easy-access design
- Wide-range DC 12~36V input
- 34-bit digital input and output

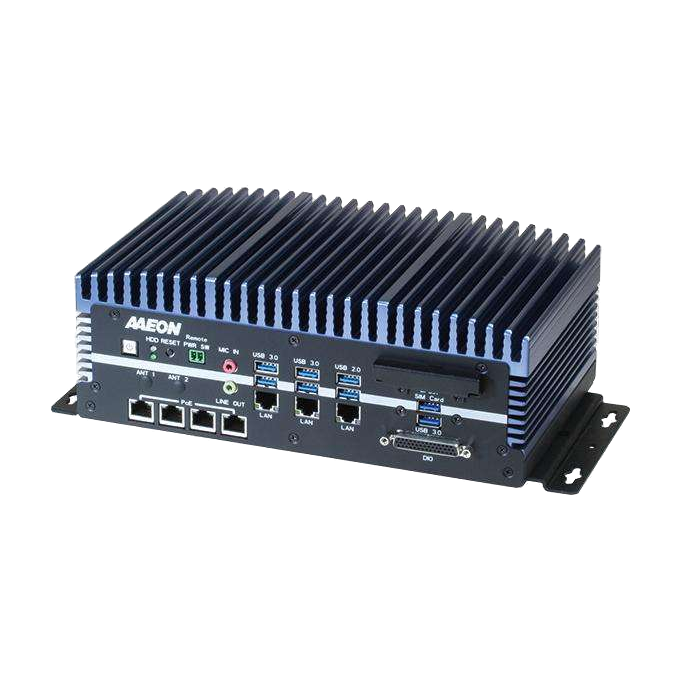

The Boxer-6639M is a fanless embedded Box PC designed to support a wide range of applications through a unified AI platform that optimizes and integrates factory automation, production-line management, and automotive control applications into a compact embedded vision system.
Designed to optimize industrial automation processes such as factory control and product lifecycle management, the Boxer-6639M is a reliable, flexible, low-maintenance option for machine vision architectures, engineered for rapid deployment. The CPU, DRAM, and Mini-Cards are easily accessible and installable, while the Boxer-6639m offers a wide range of expansion options, including 4 PoE (Power over Ethernet) ports that provide simultaneous network connectivity and power delivery of up to 80 watts, and up to 7 LAN ports.
Designed for longevity and resilience, the Boxer-6639M is a rugged, durable, and expandable computer built for demanding environments such as factories. It operates across a temperature range of -20- ~ 55 ° C and supports an input voltage range of 12-36V DC, providing a controlled environment for installed components and supporting systems. The RS- 232/422/485 interface is BIOS-selectable, allowing users to modify the software profile and switch between operating modes.

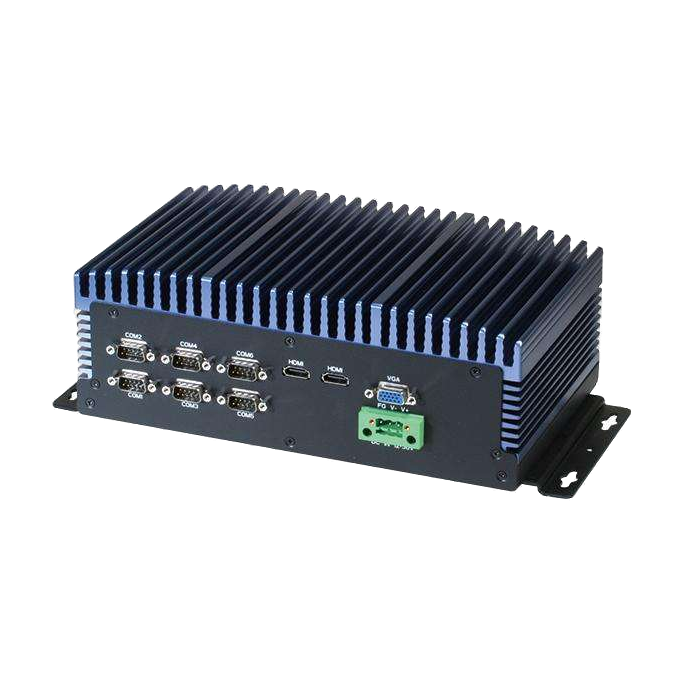

Storage options include two 2.5-inch drive bays and one CFast™ socket, while system memory is provided by two DDR4 1866/2133 SODIMM slots with a maximum capacity of 32 GB. I/O connectivity includes 6 RS-232/422/485 slots, 3 RJ-45 ports for GBE LAN, 4 POE slots (802.3AT, max. 80W in total), and a DB-44 connector for 34-bit digital I/O (5V). The system supports up to three independent displays through two HDMI slots with 4K output and one VGA slot.
Included
- Wall-mount bracket x 2
- Screw package x 1
- Thermal Pad x 3
- Phoenix connector x 2
- BOXER-6639M
| SYSTEM | |
| CPU | 7th Generation Intel® Core™ Processor family: Intel® Core™ i7-7700T, 2.9 GHz Intel® Core™ i5-7500T, 2.8 GHz Intel® Core™ i3-7101TE, 3.4 GHz Intel® Pentium® G4600T, 3.0 GHz Intel® Pentium® G4560T, 2.9 GHz Intel® Celeron® G3930T, 2.7 GHz 6th Generation Intel® Core™ Processor family: Intel® Core™ i7-6700TE, 2.4 GHz Intel® Core™ i5-6500TE, 2.3 GHz Intel® Core™ i3-6100TE, 2.7 GHz Intel® Pentium® G4500T, 3.0 GHz Intel® Pentium® G4400T, 2.9 GHz Intel® Celeron® G3900T, 2.6 Ghz |
| CHIPSET | Intel® Q170 |
| SYSTEM MEMORY | DDR4 1866/2133 SODIMM slot x 2, up to 32GB |
| DISPLAY INTERFACE | HDMI, VGA |
| STORAGE DEVICE | CFast™, HDD/SSD |
| ETHERNET | Intel® I210, 10/100/1000Base-TX x 3 |
| I/O | RS-232/422/485 x 6, USB Type A x 6 for USB 3.2 Gen 1, USB Type A x 2 for USB 2.0 RJ-45 x 3 for GbE LAN, RJ-45 x 4 for PoE (802.3at, max. 80W in total) DB-44 for 34-bit digital I/O (5V), CFast™ slot x 1, SIM card slot x 1 Power on/off button x 1, 2-pin remote power on/off, reset switch Mic-in x 1, line-out x 1, Antenna opening x 2, SYS LED indicator x 1, HDD LED indicator x 1, DB-15 x 1 for VGA, HDMI v1.3 x 2, DC-in 3-pin terminal block (12~36V) |
| EXPANSION | Full-size Mini-Card x 1 (PCI-E + USB, with SIM slot) Full-size Mini-Card x 1 (PCI-E + USB, optional for mSATA and SIM slot) |
| INDICATOR | Power LED, HDD activity LED |
| OS SUPPORT | 7th Generation Intel® Core™ Processor family: Windows® 10 IOT (64bit), Ubuntu 16.04 and above, Fedora 25 and above, CentOS 7.3 and above 6th Generation Intel® Core™ Processor family: Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit), Windows® 7 (32/64bit), Windows® Embedded Sta 7 (32/64bit), Ubuntu 16.04 and above, Fedora 25 and above, CentOS 7.3 and above |
| POWER SUPPLY | |
| POWER REQUIREMENT | 12 - 36V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wall mounting |
| DIMENSIONS (W X H X D) | 10.4" x 3.8" x 6.1" (264.2mm x 96.4mm x 154.2mm) |
| GROSS WEIGHT | 13.0 lb (5.9 kg) |
| NET WEIGHT | 8.8 lb (4.0 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -13°F ~ 131°F (-25°C ~ 55°C) (according to IEC68-2-14 with 0.5 m/s airflow; with industrial devices) |
| STORAGE TEMPERATURE | -49°F ~ 176°F (-45°C ~ 80°C) |
| STORAGE HUMIDITY | 5~95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 5 Grms/ 5 ~ 500Hz/ operation – SSD/CFast™ card 1 Grms/ 5~ 500Hz/ operation – HDD |
| ANTI-SHOCK | - |
| CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-6639M]
| PART NUMBER | BOXER-6639M-A1-1010 |
|---|---|
| CPU | — |
| RAM | — |
| LAN | 3 |
| POE | 4 |
| USB | USB 3.2 Gen 1 x 6 USB 2.0 x 2 |
| RS-232/422/485 | 6 |
| DIGITAL I/O | 34 bit |
| AUDIO | MIC-in x 1 Line-Out x 1 |
| STORAGE | 2.5” Drive Bay x 1 CFast™ x 1 |
| DISPLAY | VGA x 1 HDMI x 2 |
| EXPANSION | Full-size Minicard x 2 |
| MOUNTING | Wall mounting |
| POWER | 12~36V DC input |
| OPERATING TEMP | -13°F ~ 131°F (-25°C ~ 55°C) |
| 1255302300 | 230W Power Adapter (for 2 or more PoE cameras) |
| 125590120B | 120W Power Adapter (for only 1 PoE camera) |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (Europe) |
| 170203180E | Power Cord (Japan) |
| 9741324A00 | Wi-Fi/Bluetooth Module & Antenna |
| 9741EG25G0 | 4G Module & Antenna (Global Band with SIM holder) |
