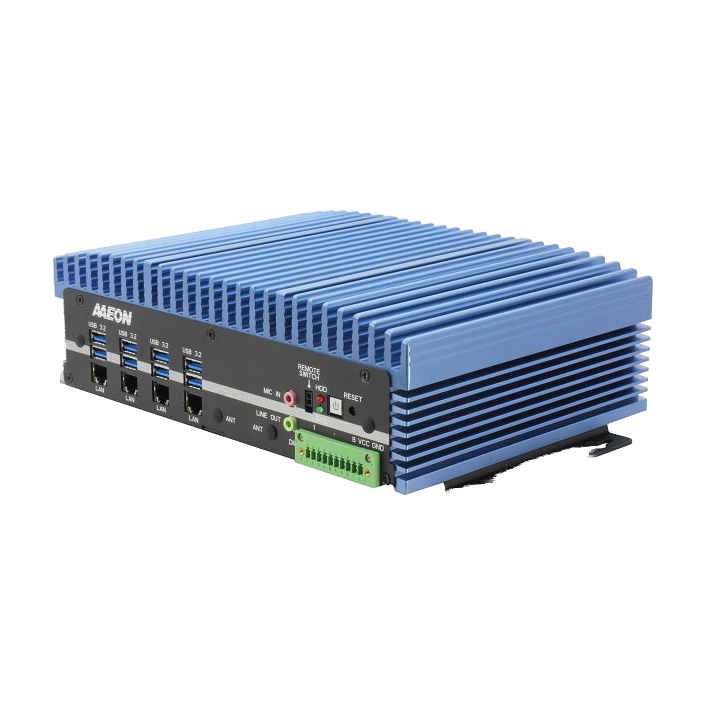

AAEON BOXER-6645-ADS (Intel 12 Gen, 4 LAN, 6 COM, DIO, 12-24VDC)
Price excludes VAT
935.97€
Sale price
Price excludes VAT
935.97€
Regular price
Total with VAT (23%): 1,151.24€
Shipping calculated at checkout.
BOXER-6645-ADS-A1-1010
Intel H610E chipset
BOXER-6645-ADS-A2-1010
Intel Q670E chipset
Fanless Embedded Box PC for Intel® 12th Generation processors
- Intel 12th Gen Desktop Processor
- Built-in high-performance Intel Iris Xe Graphic Engine
- Dual-Channel DDR5 SODIMM, Total max. 64GB
- Supports four independent displays (HDMI x 2, DP x 2)
- Supports SuperSpeed+ USB3.2 Gen2 10Gbps x 8 (A2)
- Supports M.2 3052 for a 5G module
- Supports four LAN ports (GbE x 3, 2.5GbEx1), vPRO, and iAMT
- Onboard TPM 2.0
The Boxer-6645-ADS offers exceptional processing resources, with up to 16 cores and 24 threads provided by 12th Generation Intel® Core ™ i3/i5/i7/i9 processors, delivering substantial potential for applications requiring high-performance computing. It also provides rich I/O, including four independent display outputs and multiple LAN ports, in a rugged fanless chassis.
The fanless chassis accommodates CPUs rated at up to 65W and supports an operating temperature range of -4 F ~ 140 ° F (-20 ° C ~ 60 ° C), making the Boxer-6645-ADS exceptionally rugged. Its wide 12 ~ 24V power input range and resistance to shock and vibration enable continuous operation in the most demanding deployment environments.
The Boxer-6645-ADS is ideal for traffic control and management applications. It is also the only PC in its class to offer M.2 expansion, with M.2 2230 and M.2 2252 slots for integrating Wi-Fi and 5G modules.
With its high processing power, the Boxer-6645-ADS integrates a wide range of technologies, from Intel® DL Boost to Iris® IRIS® XE graphics, enabling efficient performance for AI applications and smart city or Industria 4.0 solutions.
With dual-channel SODIMM slots supporting DDR5 4800MHz memory up to 64GB, the Boxer-6645-ADS delivers a 50% increase in bandwidth, significantly improving data transfer speeds. Combined with the power of 12th Generation Intel Core processors, this enables high-performance real-time communications and operation as an IoT gateway.
Packing List
- BOXER-6645-ADS x1
- Wall-mount bracket x 2
- 3 Pin DC-In Power Connector x 1
- Remote ON/OFF Connector x 1
- Screw Package x 1
| SYSTEM | |
| CPU | i9-12900E i7-12700TE i7-12700E i5-12500TE i5-12500E i3-12100TE i3-12100E G6900TE G6900E |
| CHIPSET | Intel H610E/Q670E |
| SYSTEM MEMORY | DDR5 4800MHz, slots x2, maximum up to 64GB |
| DISPLAY INTERFACE | HDMI Type A x2 for HDMI 1.4b DisplayPort x2 for DP1.4a |
| STORAGE DEVICE | 2.5” SATA-III Drive Bay x 2 (A2 sku supports RAID 0/1) M.2 2280 M key for NVMe SSD x 1 (an extra heatsink is required; refer to the optional accessories) (A2 sku only) |
| ETHERNET | Intel® I210AT, 10/100/1000 Base-TX x 2 Intel® I219LM, 10/100/1000 Base-TX x 1 Intel® I226LM, 2.5GbE Base-TX x 1 |
| I/O | USB 3.2 Gen2 5Gbps x 4 (A1 sku) USB 3.2 Gen2 10Gbps x 8 (A2 sku) USB2.0 x 4 (A1 sku) Audio x 1 (MIC-in, Line-out) DB-9 x 6 for RS-232/422/485 SMA Antenna Holes x6 DIO x 8 |
| EXPANSION | M.2 2230 E-Key x 1 for WiFi module M.2 3052 B-Key x 1 for 4G / 5G module |
| INDICATOR | System LED x 1 HDD LED x 1 |
| OS SUPPORT | Windows® 10 IoT Enterprise 64-bit Windows® 11 PRO 64-bit Linux Ubuntu 20.04 (Kernel 15.5 or above) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 3-pin DC Input 12~24V |
| MECHANICAL | |
| MOUNTING | Wall mounting |
| DIMENSIONS (W X H X D) | 10.39" x 3.8" x 7.33" (264mm x 80.92mm x 186.2mm) |
| GROSS WEIGHT | 10.4 lb (4.7 kg) |
| NET WEIGHT | 8.2 lb (3.7 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~122°F (-20°C ~ 50°C), IEC68-2 with 0.5 m/s airflow, with wide-temperature memory/storage (65W TDP CPU) -4°F ~140°F (-20°C ~ 60°C), IEC68-2 with 0.5 m/s airflow, with wide-temperature memory (Max. 32G)/storage (35W TDP CPU) |
| STORAGE TEMPERATURE | -40 °F ~ 176°F (-40°C ~ 80°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – SSD 1 Grms/ 5 ~ 500Hz/ operation – HDD |
| ANTI-SHOCK | 50G, IEC68-2-27, half-sine wave, 11ms duration (with SSD) |
| CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-6645-ADS]
| PART NUMBER | BOXER-6645-ADS-A1-1010 | BOXER-6645-ADS-A2-1010 |
|---|---|---|
| PCH | H610E | Q670E |
| LAN | 4 | 4 |
| USB | USB 2.0 x 4 USB 3.2 (5Gbps) x 4 | USB 3.2 (10Gbps) x 8 |
| RS-232 | — | — |
| RS-232/422/485 | 6 | 6 |
| DIGITAL I/O | 8 bit | 8 bit |
| AUDIO | Mic-in, line-out | Mic-in, line-out |
| STORAGE | 2.5” SATA-III drive bay x 2 | 2.5” SATA-III drive bay x 2 (RAID 0/1) M.2 2280 Key M for NVMe SSD x 1 |
| DISPLAY | HDMI x 2 DP x2 | HDMI x 2 DP x2 |
| EXPANSION | M.2 E-Key 2230 x1 M.2 B-Key 3052 x1 with SIM slot x1 | M.2 E-Key 2230 x1 M.2 B-Key 3052 x1 with SIM slot x1 |
| MOUNTING | Wall mounting | Wall mounting |
| POWER | 12~24V | 12~24V |
| OPERATING TEMPERATURE | -4°F ~122°F (-20°C ~ 50°C), IEC68-2 with 0.5 m/s airflow, wide-temperature memory/storage, and a 65W TDP CPU. -4°F ~140°F (-20°C ~ 60°C), IEC68-2 with 0.5 m/s airflow, wide-temperature memory (Max. 32G)/storage, and a 35W TDP CPU | -4°F ~122°F (-20°C ~ 50°C), IEC68-2 with 0.5 m/s airflow, wide-temperature memory/storage, and a 65W TDP CPU. -4°F ~140°F (-20°C ~ 60°C), IEC68-2 with 0.5 m/s airflow, wide-temperature memory (Max. 32G)/storage, and a 35W TDP CPU |
Accessories
| 1255X00070 | 180W power adapter (recommended for 35W CPU) |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (Europe) |
| 170203180E | Power Cord (Japan) |
| 1255903300 | 330W power adapter (recommended for 65W CPU) |
| PN available upon request | Wide-temperature M.2 2280 NVMe PCIe Gen4x4 SSD with heatsink (256G/512G/1T/2T) |
