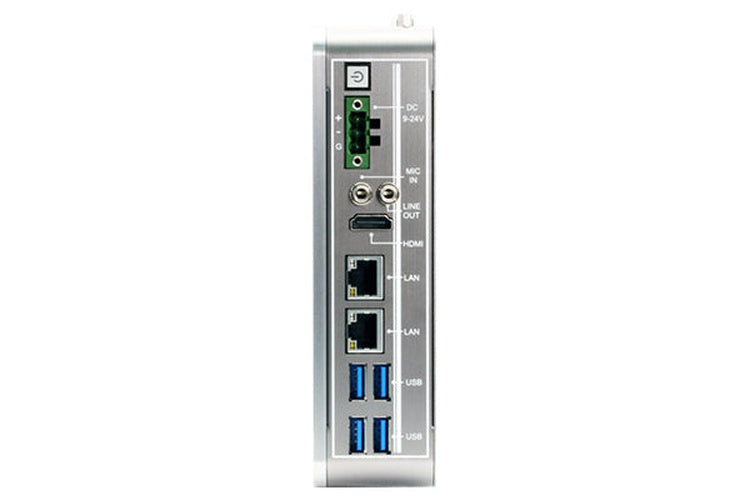

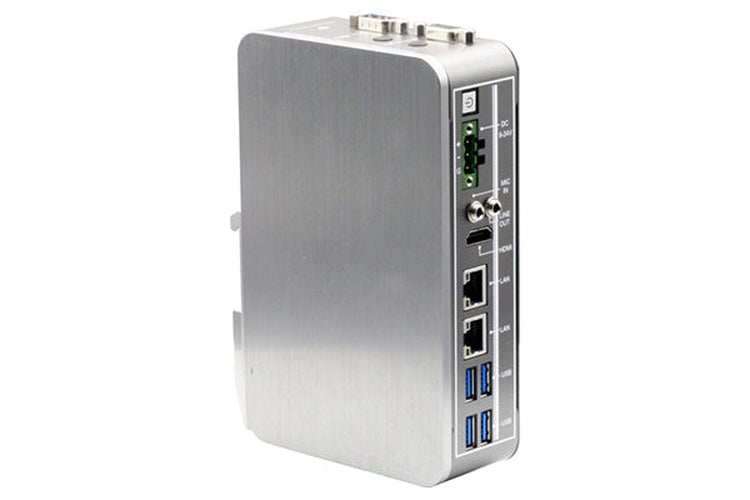

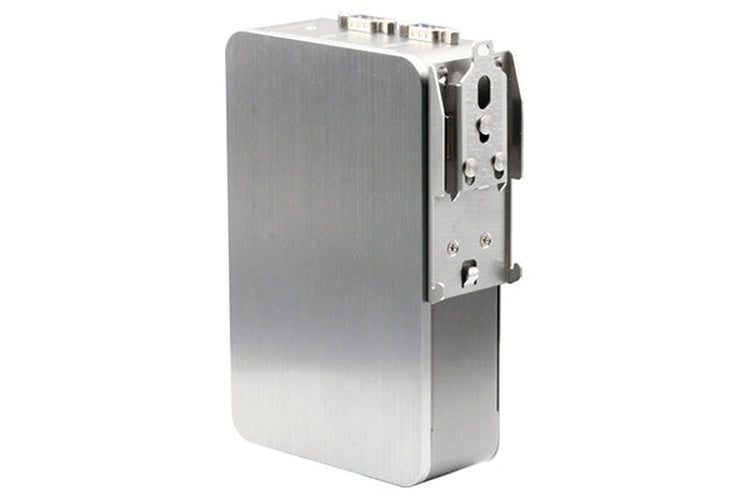

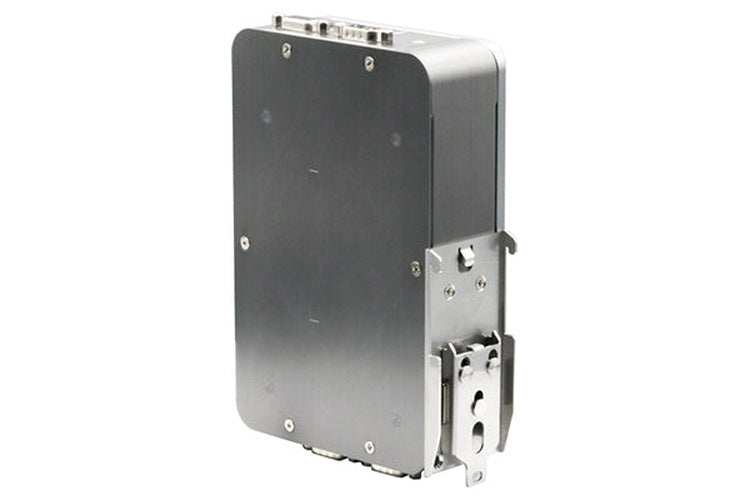

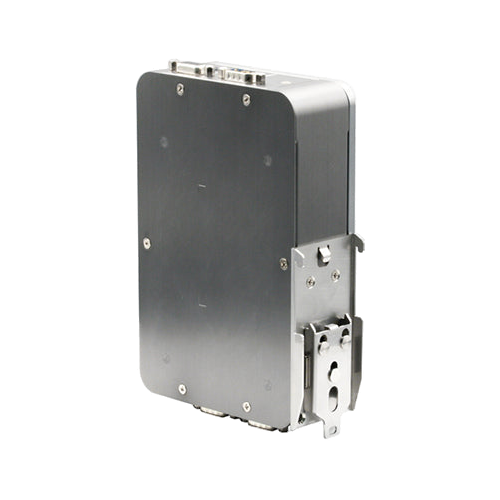

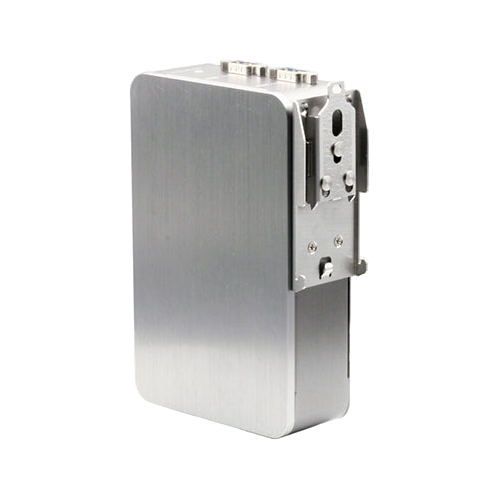

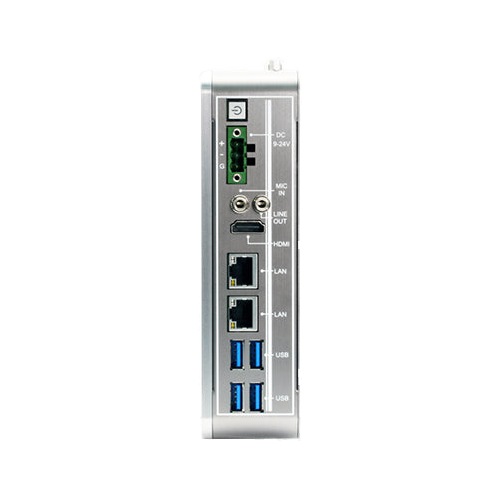

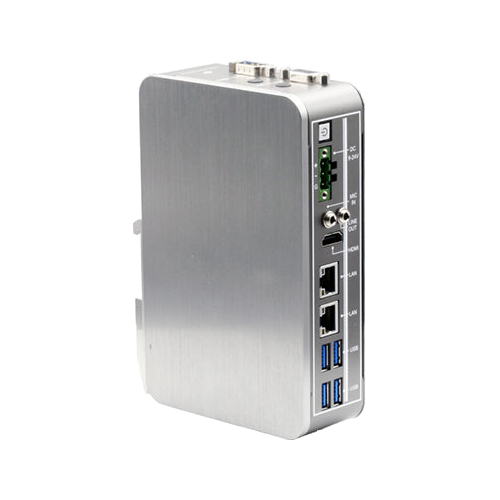

AAEON BOXER-6710 (Intel® Atom™ N3350, 2* GLAN, 9-24VDC)
AAEON BOXER-6710 (Intel® Atom™ N3350, 2* GLAN, 9-24VDC)
AAEON BOXER-6710 (Intel® Atom™ N3350, 2* GLAN, 9-24VDC)
AAEON BOXER-6710 (Intel® Atom™ N3350, 2* GLAN, 9-24VDC)

AAEON BOXER-6710 (Intel® Atom™ N3350, 2* GLAN, 9-24VDC)

  • Intel® Celeron® N3350
  • SODIMM DDR3L 8GB
  • HDMI, VGA
  • 2x Gigabit Ethernet
  • Temp Operação -20° ~ 60° C
com IVA
528.90€

sem IVA
430.00€
Sku: BOXER-6710-A1-1011
Product Type: PCs DIN Rail
Vendor: AAEON

BOXER-6710-A1-1011

Din Rail Mount Embedded BOX PC with Intel® Atom™ Processor N3350

  • Slim Design: Min. width 44mm
  • Designed for Embedded Automation Controller
  • Gigabit Ethernet x 2, USB x 4
  • Operate in -20°C ~ 60°C Environment
  • Support Din Rail Mount
Caraterísticas

The BOXER-6710 is a compact, Din Rail mounted embedded computer. Powered by the Intel Celeron N3350 or Pentium N4200, it is built rugged and powerful for industrial applications. It features a wide array of I/O ports, all located for ease of access and maintenance. The BOXER-6710 also features a full-sized and half-sized mini-Card slot, supporting expansion options like the mPCIe WiFi or LTE modules.

Operate in -20°C ~ 60°C Environment Slim Design: Min. width 44mm Designed for Embedded Automation Controller

Especificações
SYSTEM
CPU Intel® Pentium® processor N4200
Intel® Celeron® processor N3350
CHIPSET Intel® System on Chip
SYSTEM MEMORY DDR3L 1866 SODIMM slot x 1, up to 8GB
DISPLAY INTERFACE HDMI, VGA
STORAGE DEVICE HDD/SSD, optional mSATA
ETHERNET Intel® i211-AT x 2
I/O VGA x 1
HDMI x 1
RJ-45 x 2 for GbE LAN
USB Type A x 4 for USB 3.2 Gen 1
Mic-in x 1
Line-out x 1
RS-232/422/485 x 3 with automatic flow control
Power On/Off Button x 1
DC-in 3-pin terminal block (9~24V) x 1
EXPANSION Full-size Minicard x 1 w/ SIM Slot
Half-size Minicard x 1 (optional for mSATA)
INDICATOR Power LED on power button
OS SUPPORT Windows® 10 (64-bit)
Windows® 10 IoT (64-bit)
Linux Ubuntu 16.04.4
POWER SUPPLY
POWER REQUIREMENT 9 - 24V with 3-pin terminal block
MECHANICAL
MOUNTING DIN Rail Mount
DIMENSIONS (W X H X D) 1.73" x 6.54" x 4.17" (44mm x 166mm x 106mm)
GROSS WEIGHT 3.08lb (1.4kg)
NET WEIGHT 1.32lb (0.6kg)
ENVIRONMENTAL
OPERATING TEMPERATURE -4°F ~ 140°F (-20°C ~ 60°C) with W.T. SSD/HDD/mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
STORAGE TEMPERATURE -49°F ~ 176°F (-45°C ~ 80°C)
STORAGE HUMIDITY 95% @ 40°C, non-condensing
ANTI-VIBRATION 3 Grms/ 5 ~ 500Hz/ operation – mSATA/SSD
1 Grms/ 5~ 500Hz/ operation – HDD
ANTI-SHOCK -
CERTIFICATION CE/FCC class A
Downloads
Datasheet
Manual
Incluído
  • Din Rail Bracket x 1
  • Screw Package x 1
  • 3 Pin DC-In Power Connector x 1
  • BOXER-6710
