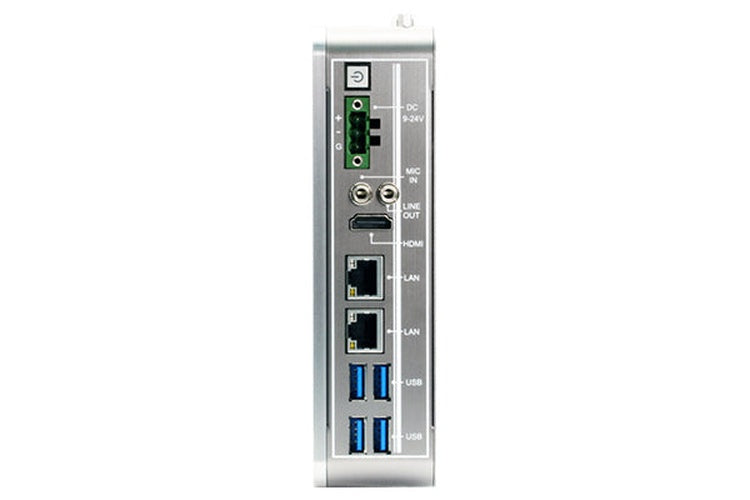

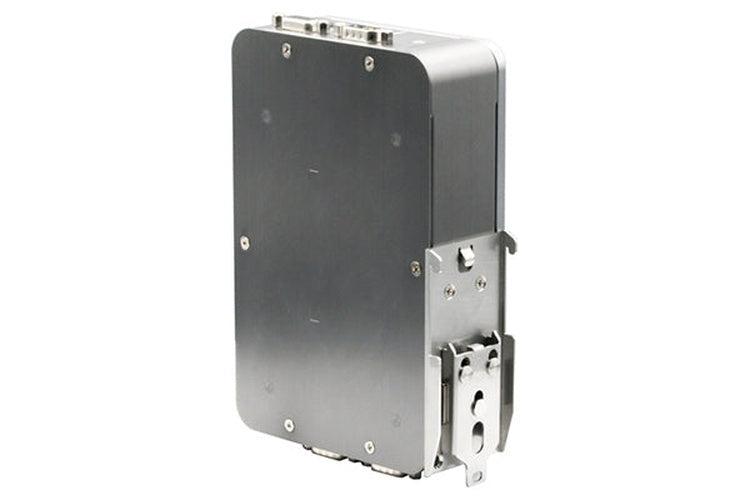

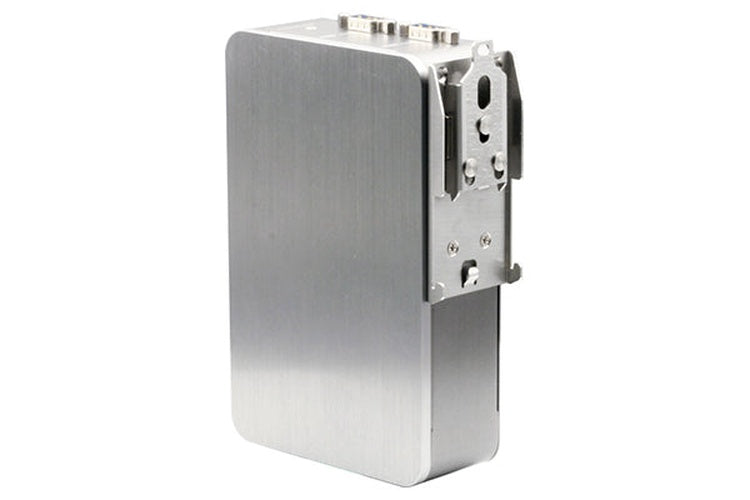

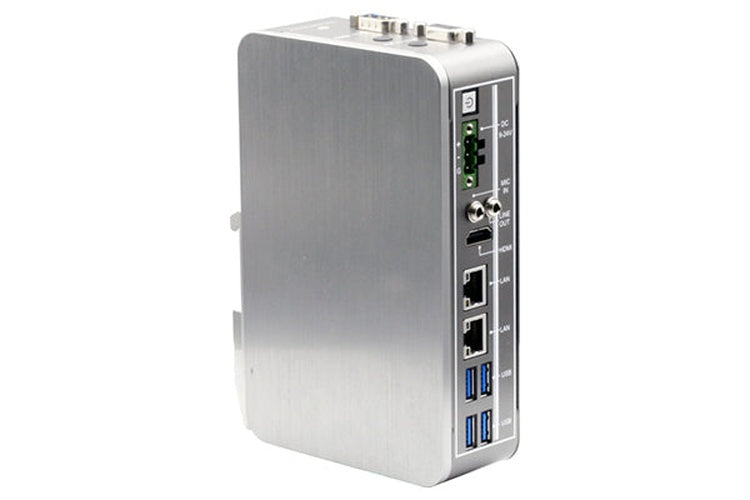

AAEON BOXER-6710 (Intel® Atom™ N4200, 2* GLAN, 9-24VDC)
Price excludes VAT
510.00€
Sale price
Price excludes VAT
510.00€
Regular price
Total with VAT (23%): 627.30€
Shipping calculated at checkout.
BOXER-6710-A2-1011
DIN rail-mount Edge BOX PC with Intel® Atom™ Processor N4200
- Slim Design: Min. width 44mm
- Designed as an embedded automation controller
- Gigabit Ethernet x 2, USB x 4
- Operation in -20°C ~ 60°C environments
- Supports DIN rail mounting
The BOXER-6710 is a compact DIN rail-mounted Edge computer. Powered by the Intel Celeron N3350 or Pentium N4200, it combines a rugged design with the performance required for industrial applications. It features a wide range of I/O ports, all positioned for easy access and maintenance. The BOXER-6710 also includes a full-sized mini-Card slot and a half-sized mini-Card slot, supporting expansion options such as mPCIe WiFi or LTE modules.
Included
- DIN rail bracket x 1
- Screw package x 1
- 3-pin DC-In power connector x 1
- BOXER-6710
| SYSTEM | |
| CPU | Intel® Pentium® processor N4200 Intel® Celeron® processor N3350 |
| CHIPSET | Intel® System on Chip |
| SYSTEM MEMORY | DDR3L 1866 SODIMM slot x 1, up to 8GB |
| DISPLAY INTERFACE | HDMI, VGA |
| STORAGE DEVICE | HDD/SSD, optional mSATA |
| ETHERNET | Intel® i211-AT x 2 |
| I/O | VGA x 1 HDMI x 1 RJ-45 x 2 for GbE LAN USB Type A x 4 for USB 3.2 Gen 1 Mic-in x 1 Line-out x 1 RS-232/422/485 x 3 with automatic flow control Power ON/OFF button x 1 DC-In 3-pin terminal block (9~24V) x 1 |
| EXPANSION | Full-size Minicard x 1 with SIM slot Half-size Minicard x 1 (optional for mSATA) |
| INDICATOR | Power LED on power button |
| OS SUPPORT | Windows® 10 (64-bit) Windows® 10 IoT (64-bit) Linux Ubuntu 16.04.4 |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 - 24V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | DIN rail mount |
| DIMENSIONS (W X H X D) | 1.73" x 6.54" x 4.17" (44mm x 166mm x 106mm) |
| GROSS WEIGHT | 3.08lb (1.4kg) |
| NET WEIGHT | 1.32lb (0.6kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) with W.T. SSD/HDD/mSATA (according to IEC68-2-14, with 0.5 m/s airflow; with industrial devices) |
| STORAGE TEMPERATURE | -49°F ~ 176°F (-45°C ~ 80°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – mSATA/SSD 1 Grms/ 5~ 500Hz/ operation – HDD |
| ANTI-SHOCK | - |
| CERTIFICATION | CE/FCC class A |
