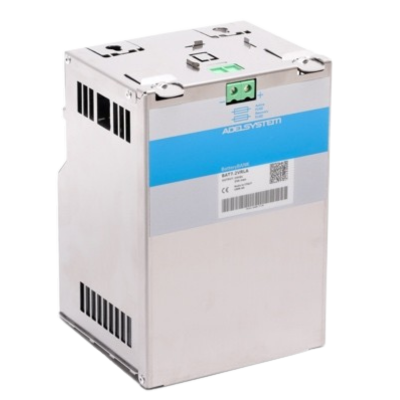

VRLA Cabinet for Batteries BTH7.2VRLA, 7.2Ah, 24 Vdc

TecTechnical Data

Nominal Input Voltage - 24 VDC

Battery Type: AGM Lead-Acid - No Battery

Dimensions (WxH xD) 65x94x151 mm

Protection Fuse Flat type Mini 25 A

Replacement Fuse Mini Flat Type 25 A CCharging Data

End-of-charge voltage (trickle charge) at 20°C            27.5 VDC

End-of-charge voltage (trickle charge) at 30°C            26.8 VDC

End-of-charge voltage (trickle charge) at 40°C            26.1 VDC

Maximum permissible charging current                           2.16 A

Discharge Data

Battery disconnection from CBI                              < 19 VDC

Maximum permissible discharging current 25 A

Self-discharge rate at 20 °C                                   15% x month

General Data

Degree of protection (EN/IEC 60529) IP 20

Protection class III

Connection terminal block screw type 0.5-16 mm2 (20-6 AWG)

Dimensions (WxHxD)                                                  139x203x129 mm

Weight 1.5 kg

DIN rail Yes

Wall mounting Yes

Climatic Data

Operating ambient temperature 0 … 40 °C

Storage ambient temperature 0 … 40 °C

Humidity at 25 °C, non-condensing                          95 %

Standards and certifications

CE marking in accordance with EMC Directive 2014/30/UE and the Low Voltage

Directive 2014/35/UE.

Electrical safety

Compliant with UL508, EN IEC 61010-2-201:2018

In accordance with EN 60950-1/VDE 0805 (SELV) and EN 50178/VDE 0160 (PELV). EN IEC 62368-1: 2014/AC:2015

Buffering time (min) (indicative value)
