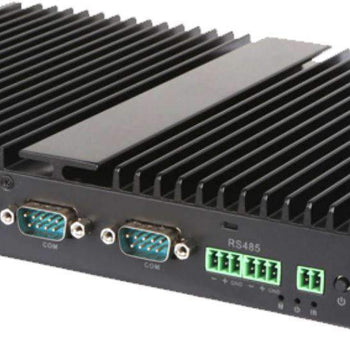

The new Giada AE67-W1 fanless Mini PC features an extended temperature range and three video outputs.
The outdoor series is equipped with an Intel Core i5-7200U Kabylake CPU, 2x SO-DIMM DDR3L supporting up to 32GB, and Intel HD 620 graphics for smooth content playback at a resolution of 4096x2304 at 60Hz. All of this is achieved without a fan or disruptive ambient noise. With its extended operating range of -20 to 60 ° C, it is an ideal system for continuous operation outdoors or in harsh environments.
- Intel Core i5-7200U
- Intel HD 620 graphics for 4K
- Fanless metal enclosure
- Temperature: -20 - +60°C
- 1x HDMI, 1x DP, 1x VGA
- 4x USB 3.0, 4x USB 2.0, 6x RS232
Applications
Digital signage
Installation in booths and kiosks
In hospitals, banks, government buildings, and other noise-sensitive institutions
For managing the flow of information to web-based or multimedia applications
-
Ambientes de Multi-display
| Product | Giada AE67-W1 |
| Processor | Intel Core i5-7200U up to 2.5 GHz Intel Pentium 4415U up to 2.3 GHz |
| Graphics | Intel HD Graphics 620 Direct3D 2015, OpenGL 5.0, OpenCL 2.1 |
| RAM | 2x SO-DIMM DRR3L-1600 MHz up to 32GB |
| Storage | 1x 2.5" SATA / 1x mSATA III / 1x M.2 / 1x Full-size Mini-PCIe |
| FAN | no |
| Operating System | Windows 10, Windows IoT Linux |
| Power adapter | 19V/3.42A |
| I/O USB 2.0 USB 3.0 COM | 4x 4x 6x |
| Ports HDMI DisplayPort VGA | 1x 1x 1x |
| Audio input/output | 1/1 |
| Network LAN WLAN | 1x optional 802.11 a/b/g/n/ac |
| Expansion | 1x SIM 1x M.2 1x mSATA III 1x SATA III 1x Full-Size Mini PCIe (WiFi,3G,4G) |
| MTBF | 50.000 h |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 5 ~ 90% non-condensing |
| Enclosure | Metal |
| Dimensions (HxWxD) | 260 x 173 x 39 mm |
| Color | Black |
