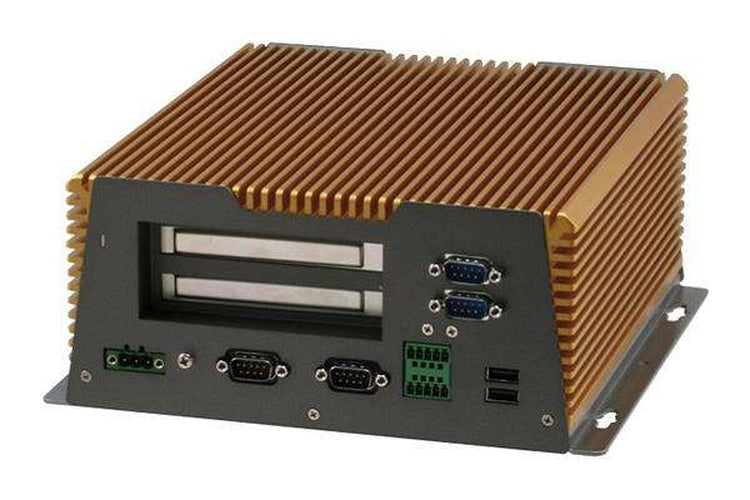

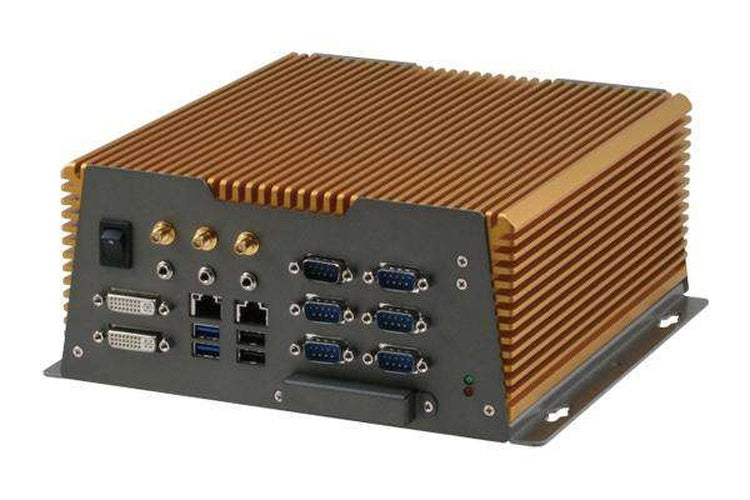

In response to the growing popularity of the IPC market, AAEON introduced the latest model in the Boxer® series, the AEC-6950. Designed as a control centre, the AEC-6950 is suitable for machine control, data processing, fleet management and data management. The AEC-6950 incorporates a highly efficient heat-conduction mechanism.
The AEC-6950 is compact yet offers flexible expansion capabilities, including 4 USB 2.0 ports and 2 USB 3.0 ports, VGA, audio, 8 COM ports, and 2 PCI or PCI-E〔x1〕 slots.
Applications:
- Machine control
- Data processing
- Fleet management
- Data management
Features:
- Intel® Core™ i7-3517UE 1.7GHz processor
- QM77 chipset
- Integrated COM module
- Isolated DI x 4 & DO x 4 (3KV)
- Isolated RS-232/422/485 x 2 (3KV)
- PCI x 2 or PCI-E ﹝x1﹞/ PCI-E ﹝x16﹞
- SIM slot x 1
- PCIe Mini-Card slot x 2
- Fanless operation (-20°C ~ 55°C) with airflow
Specifications:
| SYSTEM | |
| CPU | Intel® Core™ i7 3517UE 1.7 GHz |
| CHIPSET | Intel® QM77 |
| SYSTEM MEMORY | DDR3 1333/1600 MHz, SODIMM slots x 2, up to 16 GB |
| DISPLAY INTERFACE | DVI-I, DVI-D |
| STORAGE DEVICE | CFast™, HDD/SSD |
| ETHERNET | Intel® 82583V, 10/100/1000Base-TX x 1 Intel® 82579LM, 10/100/1000Base-TX x 1 |
| I/O | Isolated RS-232/422/485 x 2 RS-232/422/485 x 2 RS-232 x 4 USB 3.0 x 2 USB 2.0 x 4 DVI-I x1 DVI-D x 1 LAN x 2 Isolated digital input x 4 Isolated digital output x 4 Isolated CAN bus x 2 (optional) Line-out x 1 CFast™ slot x 1 Antenna hole x 3 Power switch |
| EXPANSION | Full-size Mini-Card x 2 PCIe [x1] x 1 & PCIe [x 16] x 1 (SKU A1) PCI x 2 (SKU A2) |
| INDICATORS | Power LED HDD activity LED |
| OS SUPPORT | Windows® 7, Windows® XP, Windows® XP Embedded, Linux Fedora |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 - 30V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wall mounting |
| DIMENSIONS (W X H X D) | 8.4" x 3.9" x 9.5" (214mm x 100mm x 241mm) |
| GROSS WEIGHT | 11 lb (5 kg) |
| NET WEIGHT | — |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -20°C ~ 55°C with wide-temperature CFast™ card (according to IEC68-2-14, with 0.5 m/s airflow; with industrial devices) * Power consumption of the add-on PCI/PCI-E card must be under 30W. |
| STORAGE TEMPERATURE | -20°C ~ 70°C |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – CFast™/SSD 1 Grms/ 5~ 500Hz/ operation – HDD |
| CERTIFICATION | CE/FCC class A, UL |
Packing List
- Phoenix Power Connector x 1
- Wall-Mount Bracket x 2
- Product DVD
- AEC-6950
Optional Accessories
| ‧ 1255901202 | Power Adapter (120W), Output: DC 19V |
| ‧ 1702031802 | Power Cord (US Type) |
| ‧ 1702031803 | Power Cord (European Type) |
| ‧ 170203180E | Power Cord (Japanese Type) |
| ‧ PER-T248-A10 | CAN Bus Kit |
