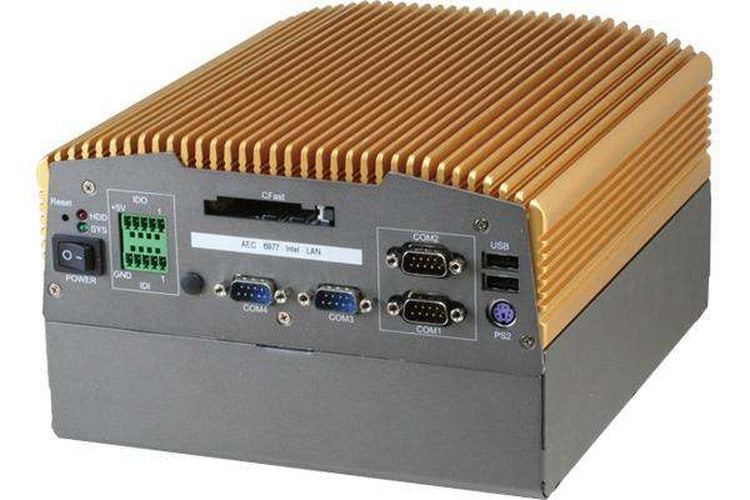

Designed as a control center, the AEC-6977 is suitable for machine control, data processing, fleet management, and data management. The AEC-6977 incorporates a highly efficient heat-conduction mechanism.

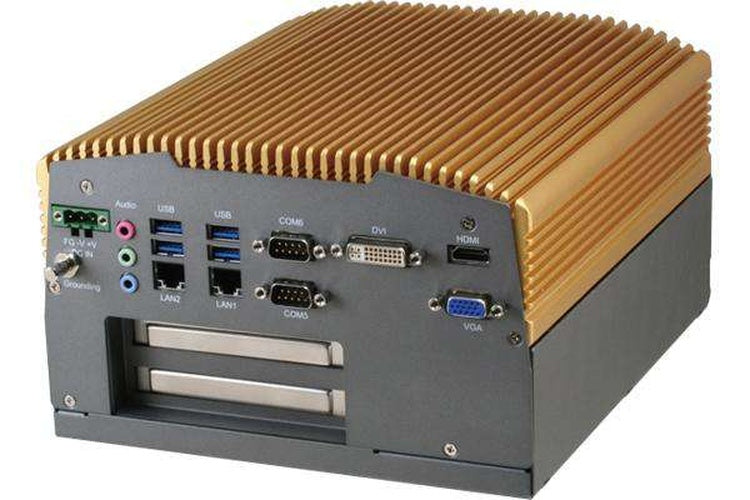

The AEC-6977 is compact yet offers versatile expansion capabilities, including 2 USB 2.0 ports and 4 USB 3.0 ports, VGA, audio, 6 COM ports, PCI, and PCI-E〔x4〕.
Applications
- Heavy Automation
- Factory Automation
- Energy
- Power
- Warehouse
- Steel Automation
Features
- Intel® Core™ i7-3517UE 1.7 GHz Processor
- QM77 Chipset
- COM x 6 (2.5KV Isolation x 2), 2.5KV Isolated DIO
- Mini-PCIe x 2 & CFast™ x 1
- Riser Card: PCI x 2, PCI-E[x4] x 2, PCI x 1 and PCI-E[x4] x 1
- Hi-Safe and Hi-Manager Support
- Built-in TPM
Specifications
| SYSTEM | |
| CPU | Intel® Core™ i7-3612QE, 2.1 GHz Intel® Core™ i7-3517UE, 1.7 GHz Intel® Core™ i3-3217UE,1.6 GHz Intel® Celeron® 1020E, 2.2 GHz |
| CHIPSET | Intel® QM77 |
| SYSTEM MEMORY | DDR3 1066/1333 MHz SODIMM slot x 2, up to 16 GB |
| DISPLAY INTERFACE | HDMI, DVI-D, VGA |
| STORAGE DEVICE | CFast™, HDD/SSD |
| ETHERNET | Intel® 82579LM, 10/100/1000Base-TX x 1 Intel® 82574L, 10/100/1000Base-TX x 1 |
| I/O | RS-232/422/485 x 1 with isolation RS-232 x 1 with isolation RS-232 x 4 USB 3.0 x 4 USB 2.0 x 2 HDMI x1 DVI-D x 1 VGA x 1 LAN x 2 Programmable 8-bit isolated digital input/output Mic-in x 1 Line-in x 1 Line-out x 1 PS/2 x 1 Grounding x 1 CFast™ slot x 1 Antenna hole x 1 |
| EXPANSION | Full-size Mini-Card x 2 PCIe[x4] x 2 (SKU A1, A4, A7, A10) PCI x 2 (SKU A2, A5, A8, A11) PCIe[x4] x 1 & PCI x 1 (SKU A3, A6, A9, A12) |
| INDICATOR | Power LED HDD Activity LED |
| OS SUPPORT | Windows® 7, Windows® XP, Windows® XP Embedded, Linux Fedora |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 - 30V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 8.19" x 4.9" x 9.37" (208mm x 124.4mm x 238mm) |
| GROSS WEIGHT | 13.2 lb (6.0 kg) |
| NET WEIGHT | — |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) with Intel® Core™ i7-3612QE CPU or Celeron® 1020E and a wide-temperature CFast™ card (according to IEC68-2- 14, with 0.5 m/s airflow; with industrial devices) -4°F ~ 167°F (-20°C ~ 75°C) with Intel Core™i7-3517UE or Core™ i3- 3217UE CPU and wide-temperature CFast™ card c 8-2-14 with 0.5 m/s airflow; with industrial devices) |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – CFast™/SSD 1 Grms/ 5~ 500Hz/ operation – HDD |
| CERTIFICATION | CE/FCC Class A |
Packing List
- Phoenix Power Connector x 1
- Wallmount Bracket x 2
- Product DVD
- AEC-6977
Optional Accessories
| 1255901202 | Power Adapter (120W), Output: DC 19V |
| 1255900841 | Power Adapter (84W), Output: DC 12V |
| 1702031802 | Power Cord (US Type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| 9741696701 | I/O Dust Cover Kit |
| 9741696702 | 2nd 2.5" SATA HDD Kit |
