Sku: AEV-6356
Product Type: EOL
Vendor: AAEON

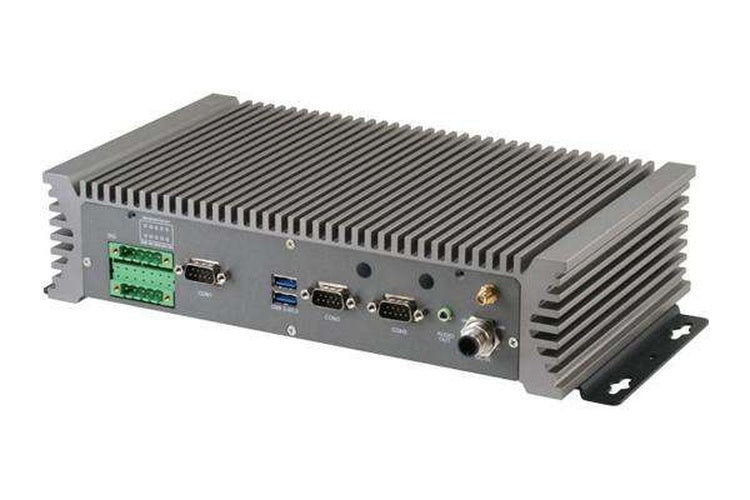

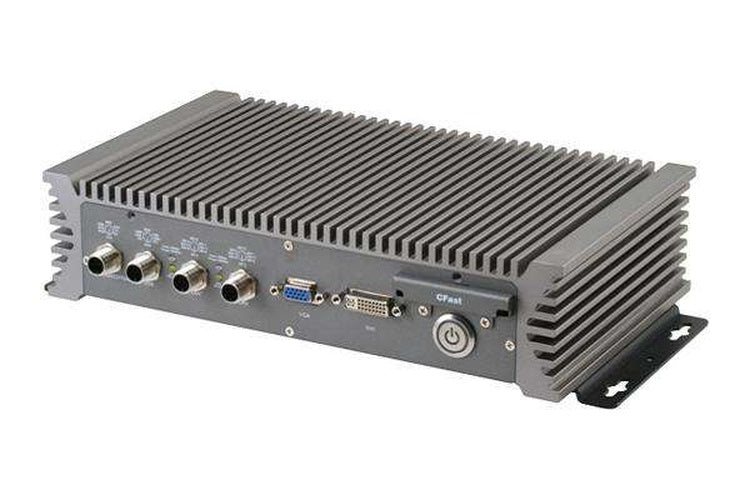

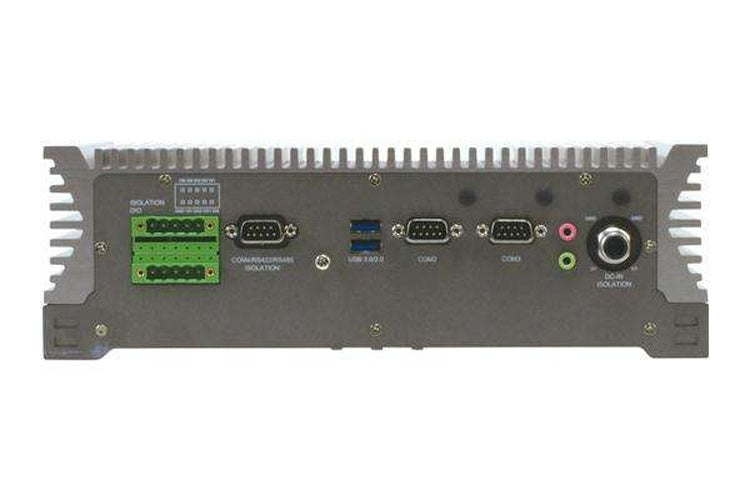

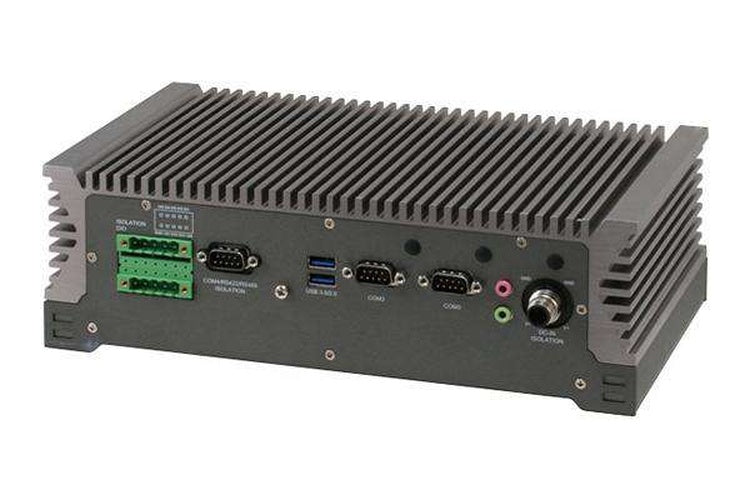

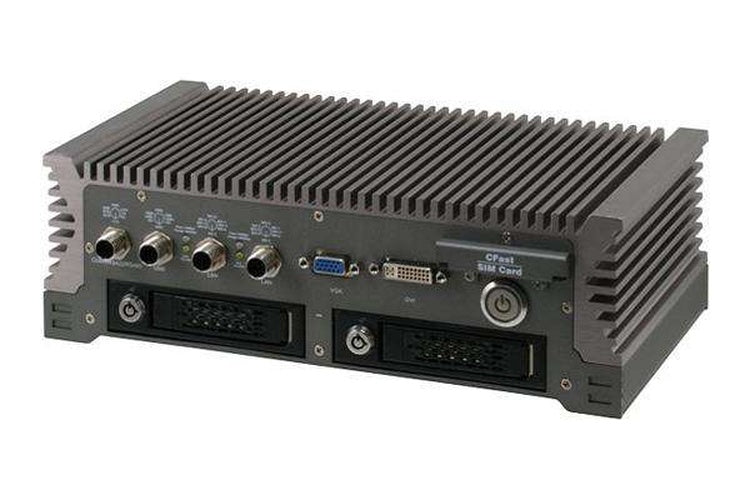

In-vehicle Embedded Controller Solutions. The newest Boxer series AEV-6356 utilizes Intel® Core™ processor and is designed for public transportation system that demands for anti-vibration and anti-shock protection. Moreover, this model features one DDR3 SODIMM, up to 8 GB. For the storages, the AEV-6356 equips two SATA 3.0Gb/s HDD bays and one CFast™ slot. It offers low power consumption system that while operating in ambient temperatures ranging from -40° to 70°C. Max. operating temperature is 85C for 10 minutes. All of the temperature follows the standard of EN50155 Tx standard. The AEV-6356 is a standalone high performance controller designed for long-life operation and with high reliability. It also supports a wide DC input range from 17V to 30V to meet the demands of railway application. It can replace traditional methods and become the mainstream controller for the Railway markets.

Applications

  • Railway
  • In-Vehicle P

Features

  • Onboard Intel® Core™ i7-3517UE or Celeron® 827E Processor
  • EN50155Tx Certified
  • Isolated RS-232/422/485 x 1
  • Isolated Digital Input x 6 + Digital Output x 2
  • WiFi/ 3G/ GPS
  • Rugged M12 Connector for LAN/ Serial/ USB/ Power
  • 17V~30V (Certified by EN50155), 17V~75V (Compliant with EN50155)
  • Supports OVP/UVP/SCP/Reverse-Voltage Protection



Datasheet_AEV-6356



Specifications

SYSTEM
CPU Intel® Core™ i7 3517UE 1.7 GHz
CHIPSET Intel® QM77
SYSTEM MEMORY DDR3 1333/1600 SODIMM slot x 1, up to 8 GB
DISPLAY INTERFACE DVI-D, VGA
STORAGE DEVICE CFast™, HDD/SSD (for HDD SKU)
ETHERNET Intel® 82579LM, 10/100/1000Base-TX x 1 Intel® 82574L, 10/100/1000Base-TX x 1
I/O M12 RS-232/422/485 x 1
M12 LAN x 2
M12 dual USB2.0 x 1
Isolated RS-232/422/485 x 1
RS-232/422/485 x 2
USB3.0 x 2
VGA x 1
DVI-D x 1
Isolated Digital input x 4
Isolated Digital output x 2
Antenna hole x 3
Removable 2.5” HDD kit x 2 (for HDD SKU)
Power on/off
EXPANSION Full-size Mini-Card x 1 Half-size Mini-Card x 1
INDICATOR Power LED on power button
OS SUPPORT Windows® 8.1, Windows® 7, Windows® XP
POWER SUPPLY
POWER REQUIREMENT 17~30V with M12
MECHANICAL
MOUNTING Wallmount
DIMENSIONS (W X H X D) 11.26” x 6.86” x 5.32” (286mm x 174.2mm x 135mm)
GROSS WEIGHT 18.2 lb (8.3 kg)
NET WEIGHT 17.0 lb (7.7 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE -40°F ~ 158°F (-40°C ~ 70°C), 85°C for 10 minutes (according to EN50155 Tx)
STORAGE TEMPERATURE Compliant with EN50155/EN50121 standard
STORAGE HUMIDITY Compliant with EN50155/EN50121 standard
ANTI-VIBRATION Compliant with EN613731 standard
CERTIFICATION CE/FCC class A,, EN50155, EN50121, EN45545

Packing List

  • Waterproof Power Kit x 1
  • Wallmount Bracket x 2
  • M12 Power DC Jack Kit x 1
  • M12 USB Y Cable x 1
  • M12 COM Cable x 1
  • M12 LAN Cable x 2
  • Product DVD
  • AEV-6356

Optional Accessories

1700080308 USB Y Cable with M12 Connector
1700090309 COM Cable with M12 Connector
1700080309 LAN Cable with M12 Connector
M996356000 Waterproof Power Kit
9761635600 3G & GPS Module
9761635601 WiFi 802.11 b/g/n Module
