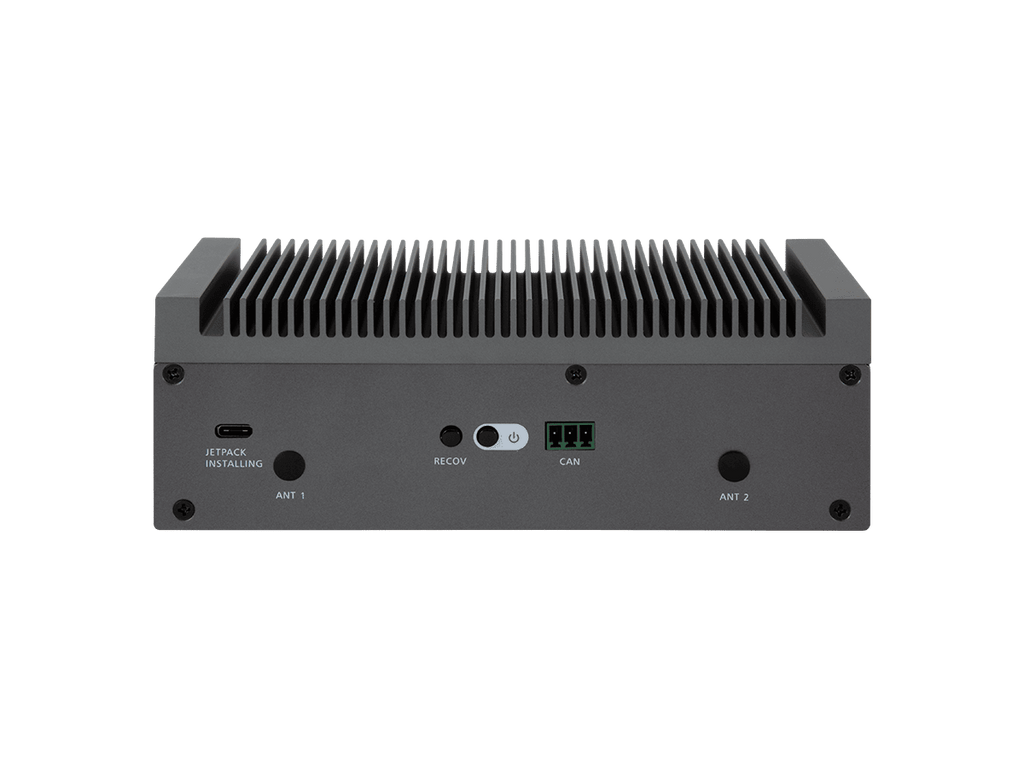

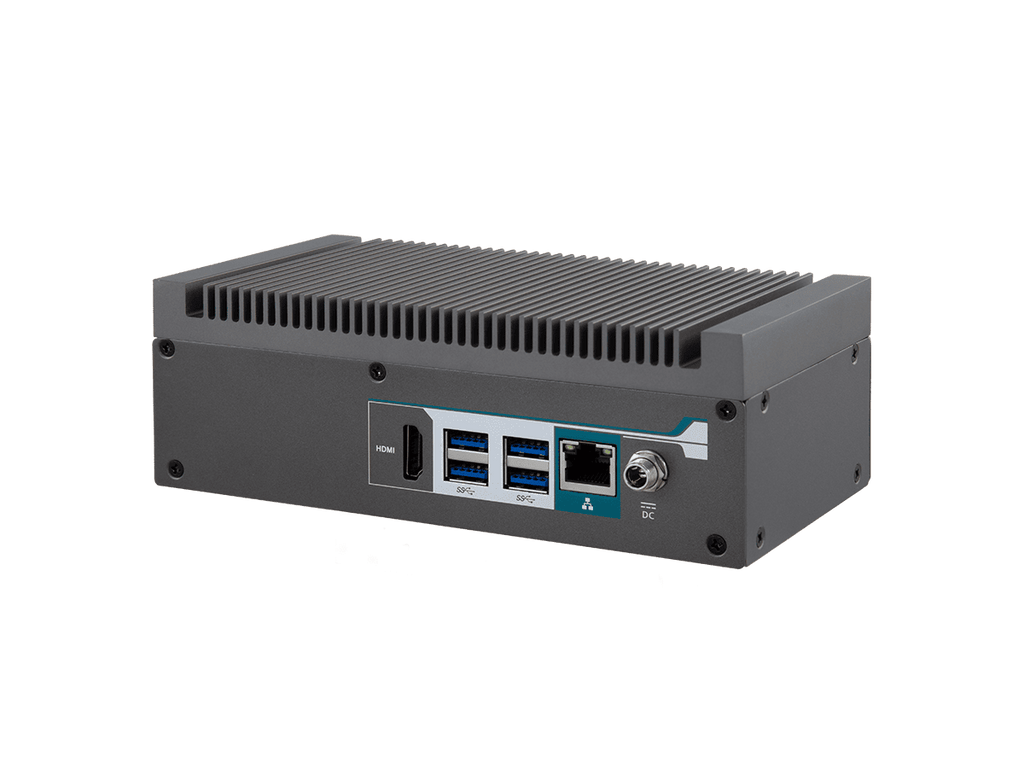

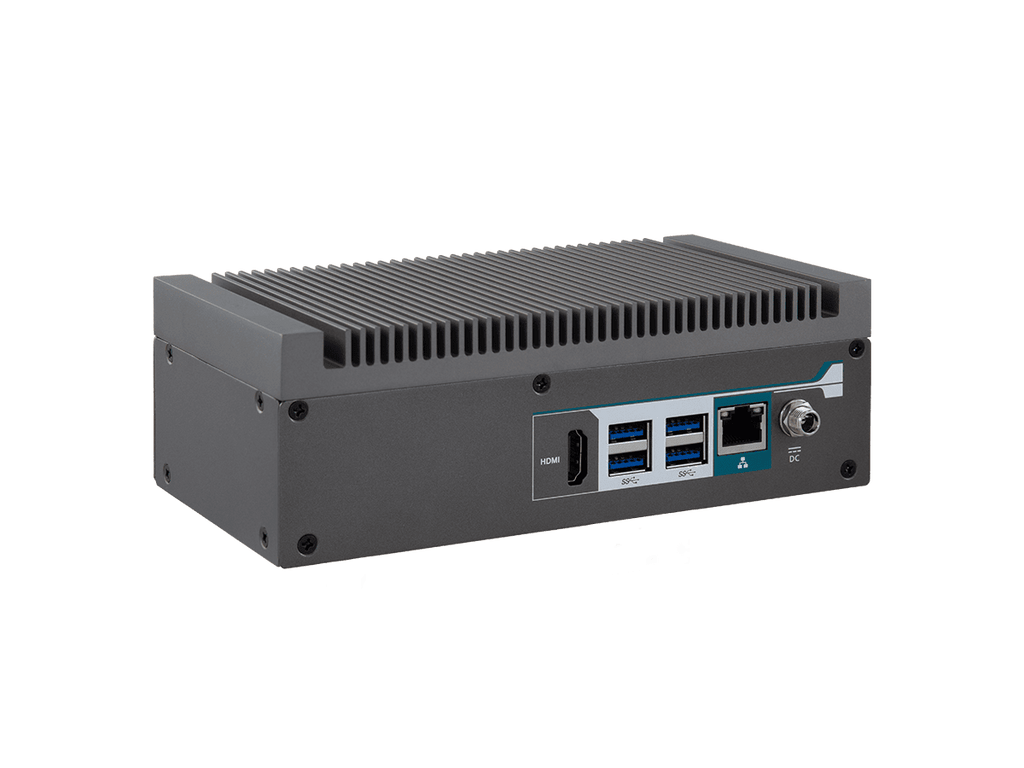

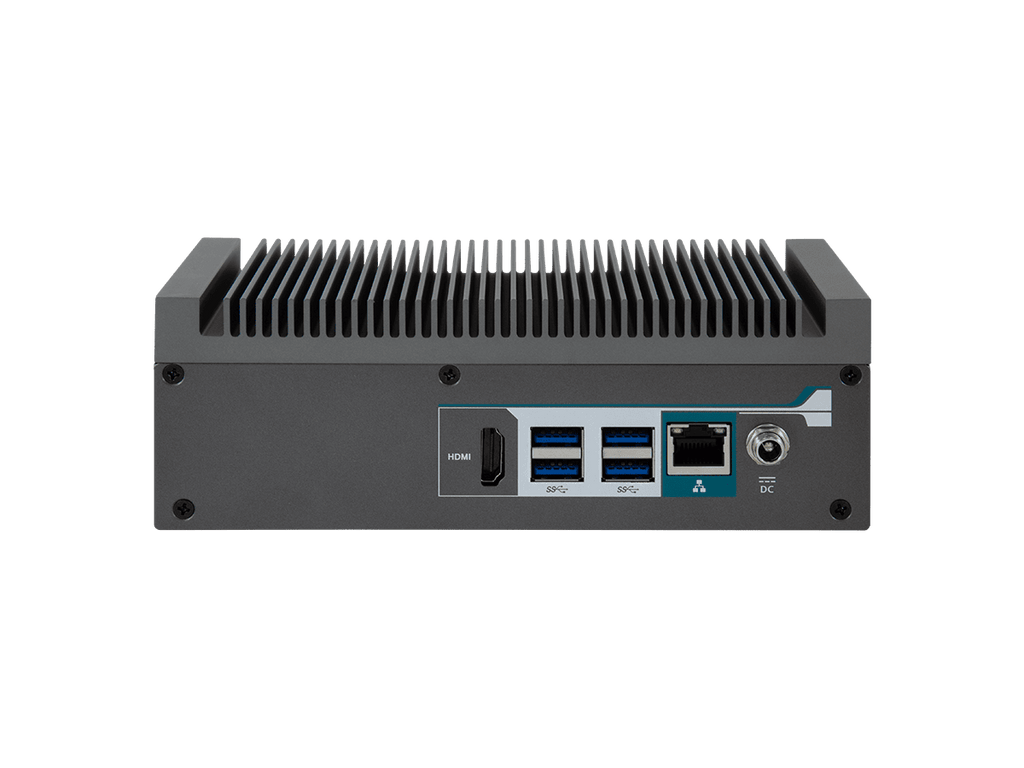

Arbor AEC-2001-8GB (NVIDIA® Orin Nano, 8GB LPDDR5, 67 TOPS)
Price on request
AEC-2001-8
NVIDIA® Jetson Orin™ Nano Edge AI Computer
- Supports NVIDIA® Jetson Orin™ Nano with "Super Mode"
- Supports 1 GbE port
- 4 USB 3.2 ports
- 1 HDMI 2.0 port
- Wide-range 9 to 24 V DC input
- Operating temperature: -25°C to 50°C
System
| CPU | Arm CPU® Cortex®-A78AE v8.2, 64-bit and 8-core |
|---|---|
| Memory | 8GB LPDDR5 DRAM |
| GPU | GPU with NVIDIA Ampere™ architecture, 1024 cores and 32 Tensor cores |
| Storage | 1 x M.2 Key M (2280), 256GB NVMe SSD (default), optional up to 1TB |
I/O Interfaces
| LAN | 1 GbE port |
|---|---|
| USB Port | 1 USB 2.0 Type-C port for recovery 4 USB 3.2 ports with Type-A connectors |
| Expansion | 1 M.2 M-Key 2280 socket (for NVMe SSD) 1 M.2 E-Key 2230 socket (for Wi-Fi module) 1 x CAN 2.0 (3-pin terminal block) 1 x OOB (optional) |
| Video port | 1 x HDMI 2.0, 3840 x 2160 4K 30Hz |
Environmental conditions
| Operating temperature | -20°C to 65°C (-4°F to 149°F), with an airflow of 0,63 m/s (TDP: 25W) |
|---|---|
| Storage temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Operating humidity | 5 ~ 95% (non-condensing) |
| Relative humidity | 95% @ 50°C |
Operating systems
| System | Ubuntu 22.04/ NVIDIA JetPack 6.2 |
|---|
Power
| Power input | DC 9V ~ 24V |
|---|
Mechanical characteristics
| Button | 1 power button and 1 forced recovery button |
|---|---|
| Antenna | Antenna opening for Wi-Fi |
| Mounting | Wall mounting |
| Weight | 1,25 kg (to be confirmed) |
| Dimensions (W × D × H) | 180 mm x 96 mm x 60.9 mm |
