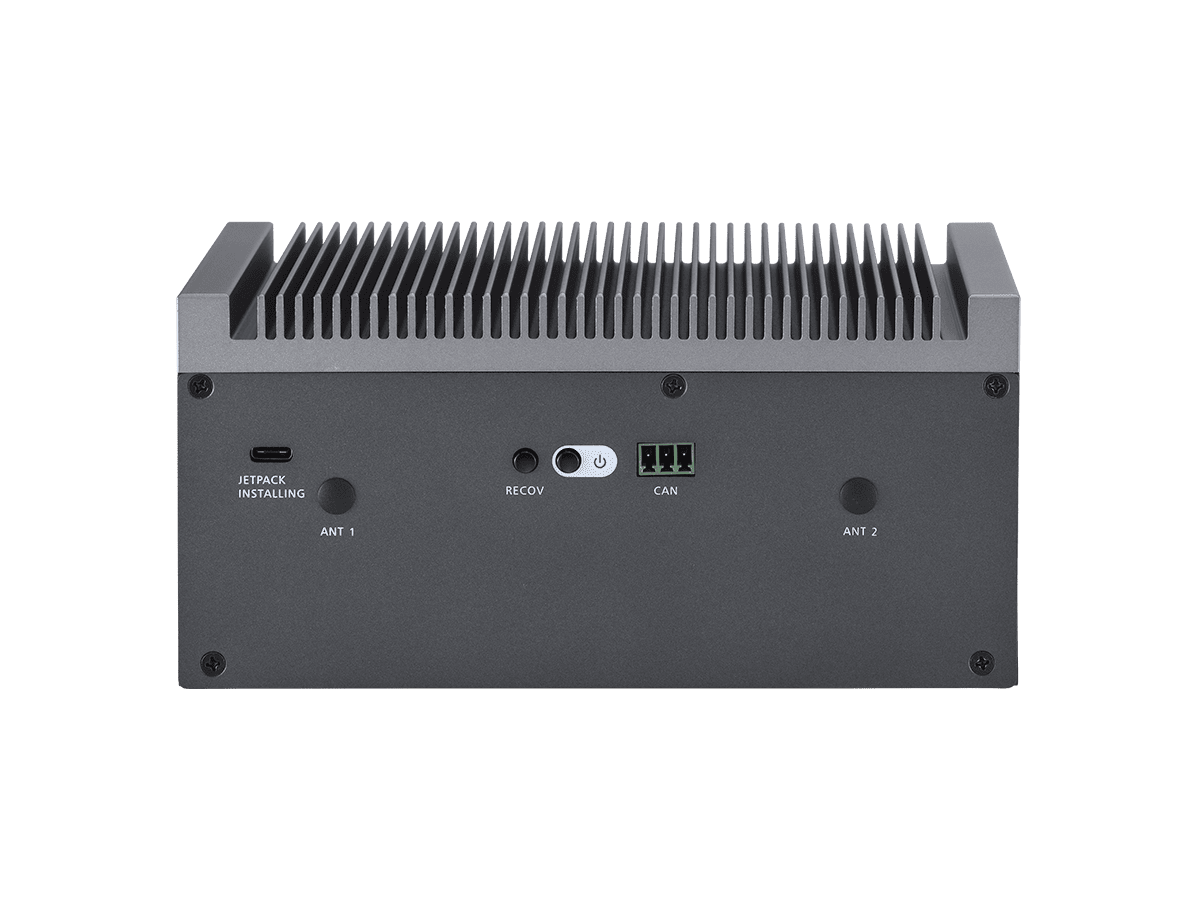

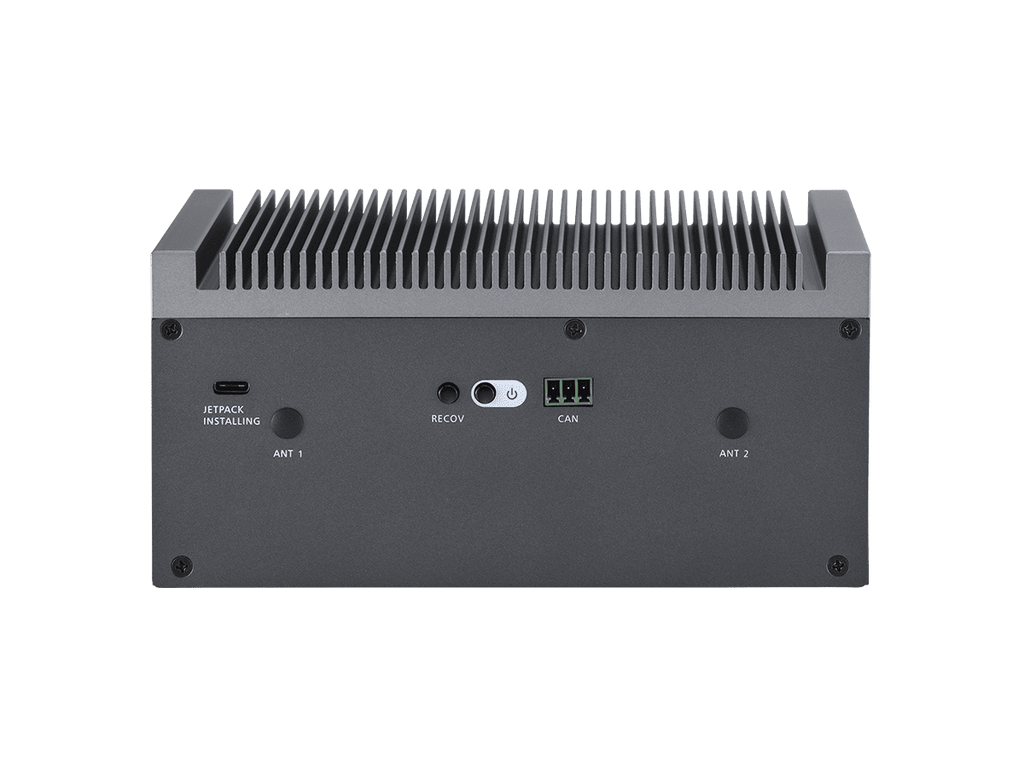

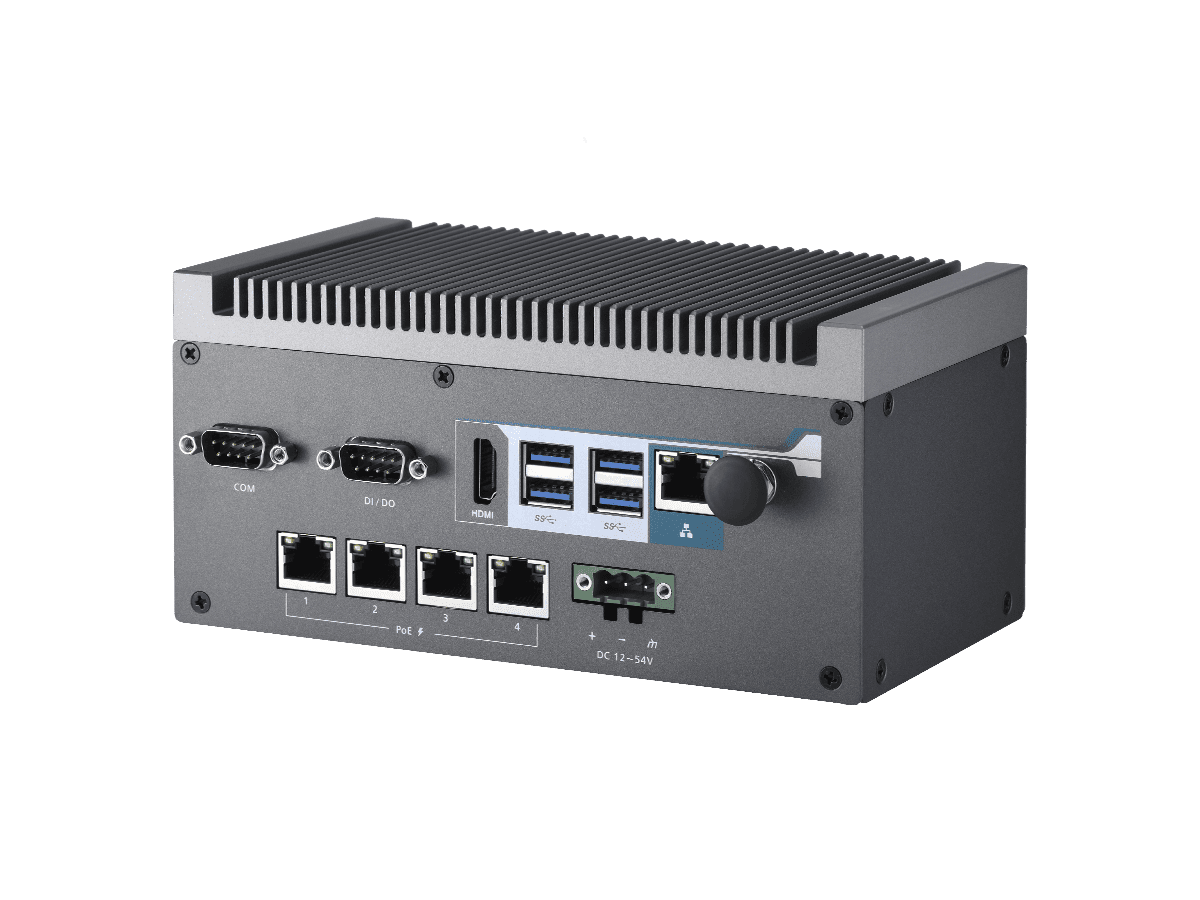

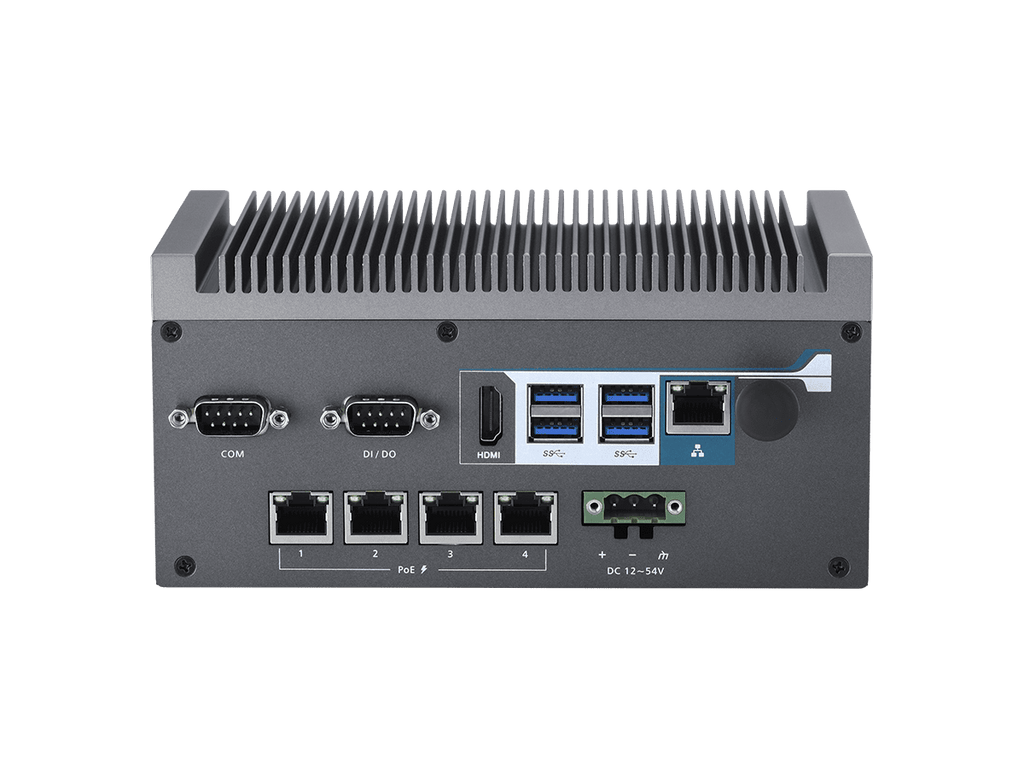

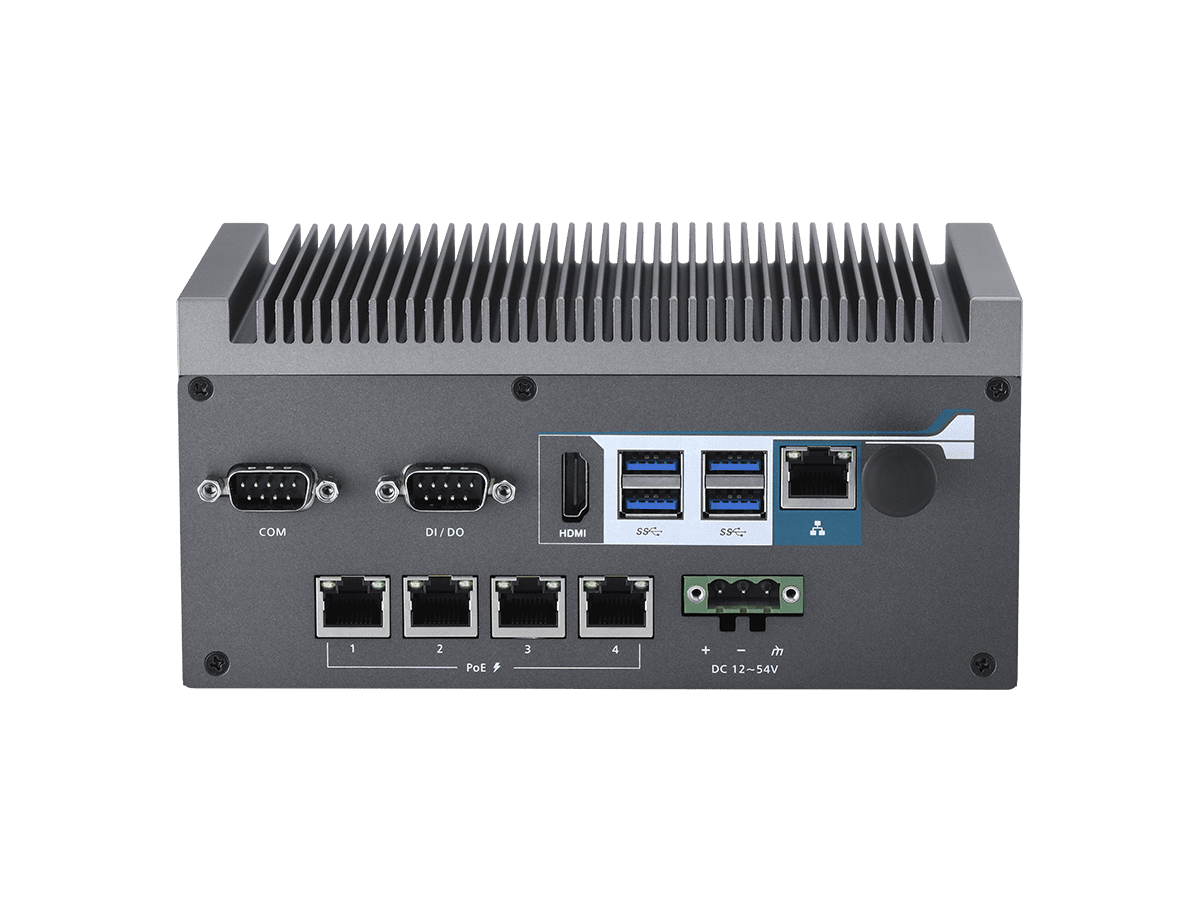

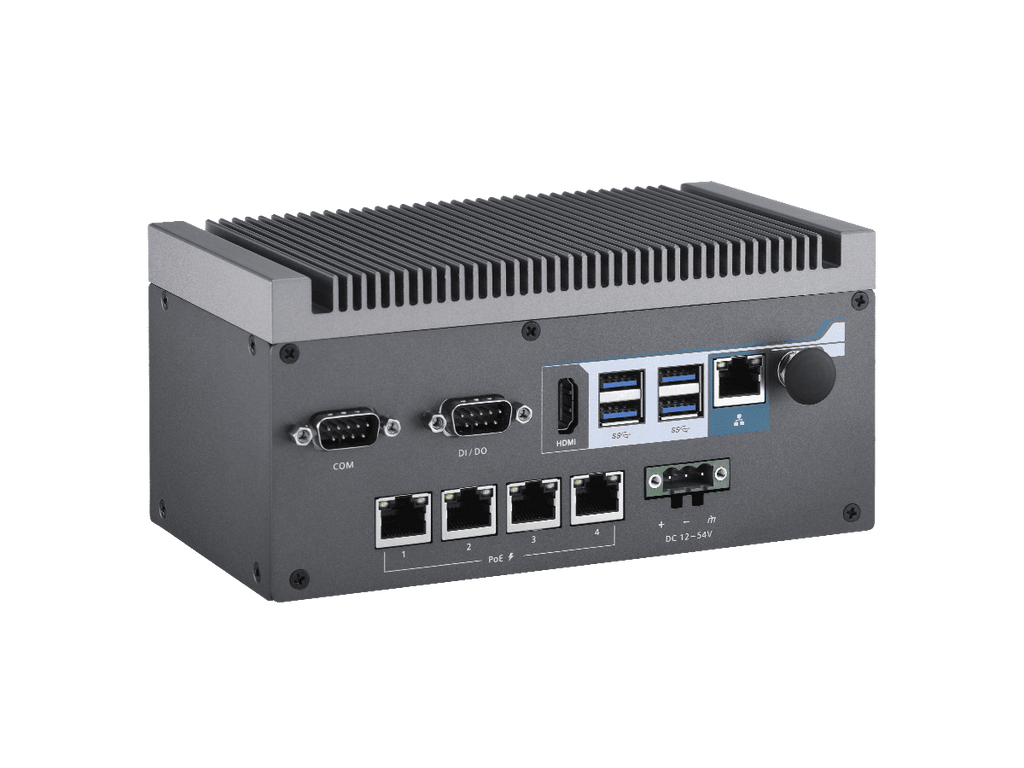

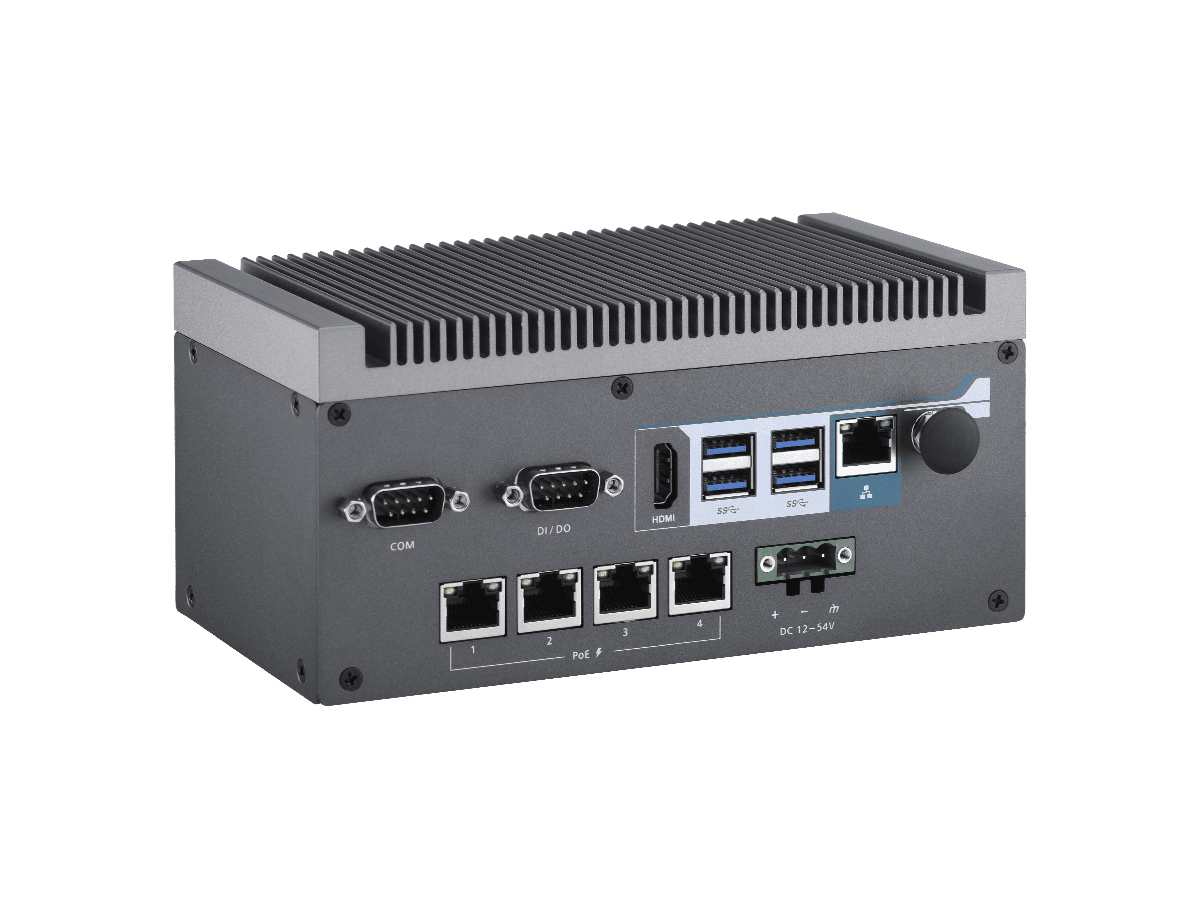

Arbor AEC-2201 (NVIDIA® Jetson Orin™ Nano, 117 TOPS, 4x PoE+)
Price on request
The Arbor AEC-2201 is a compact industrial Edge AI computer powered by NVIDIA® Jetson Orin™ Nano, designed for machine vision, autonomous mobility and intelligent edge analytics. It delivers up to 117 TOPS of AI performance, 8 GB LPDDR5 memory and four Gigabit Ethernet PoE+ ports for direct camera connectivity.
Key features
- NVIDIA® Jetson Orin™ Nano with Super Mode support
- NVIDIA Ampere™ GPU with 1024 cores and 32 Tensor Cores
- 8 GB LPDDR5 memory
- 4x GbE PoE+ and 1x GbE
- 4x USB 3.2 Gen 1 and 1x USB-C recovery port
- HDMI 2.0 with 4K resolution
- M.2 expansion for NVMe, Wi-Fi and 4G/5G communications
- 12–54 VDC wide-range power input
- -20°C to 65°C operating temperature
System
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit |
|---|---|
| Memory | 8 GB LPDDR5 |
| GPU | NVIDIA Ampere™, 1024 cores, 32 Tensor Cores, up to 117 TOPS |
| Storage | M.2 M-Key 2280; 128 GB NVMe SSD, optional up to 2 TB |
Interfaces and expansion
| Network | 1x GbE and 4x GbE PoE+ |
|---|---|
| USB | 4x USB 3.2 Gen 1 Type-A and 1x USB 2.0 Type-C recovery port |
| Serial/GPIO | 1x RS-232/422/485 and 6-bit GPIO |
| Video | HDMI 2.0, 3840 × 2160 at 30 Hz |
| Expansion | M.2 M-Key, E-Key and B-Key; SIM; CAN 2.0 |
Environment and mechanical
| Input | 12–54 VDC |
|---|---|
| Temperature | -20°C to 65°C |
| Certifications | CE and FCC |
| Mounting | Wall mount |
| Dimensions/Weight | 180 × 96(+) × 85.9 mm; 2.0 kg |
| OS | Ubuntu 22.04 / NVIDIA JetPack 6.2 |
