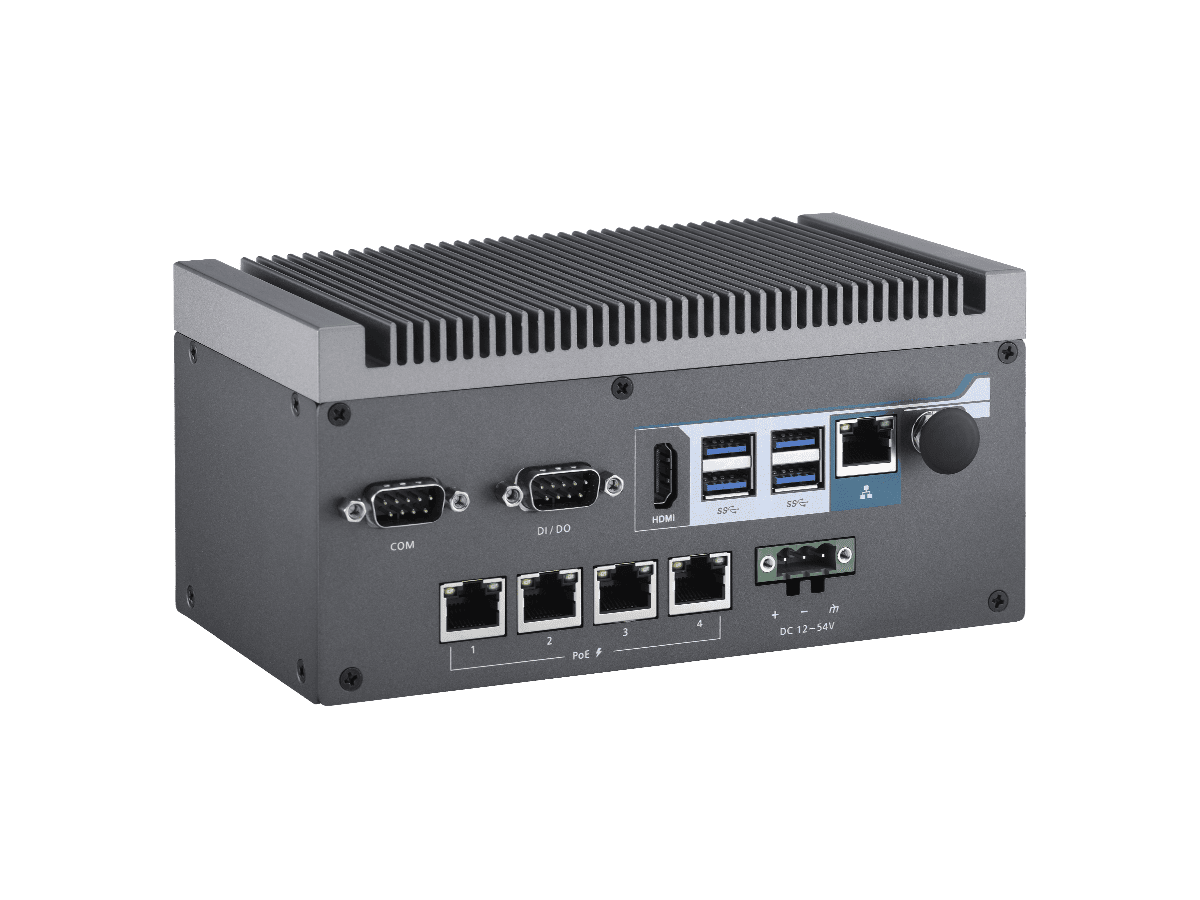

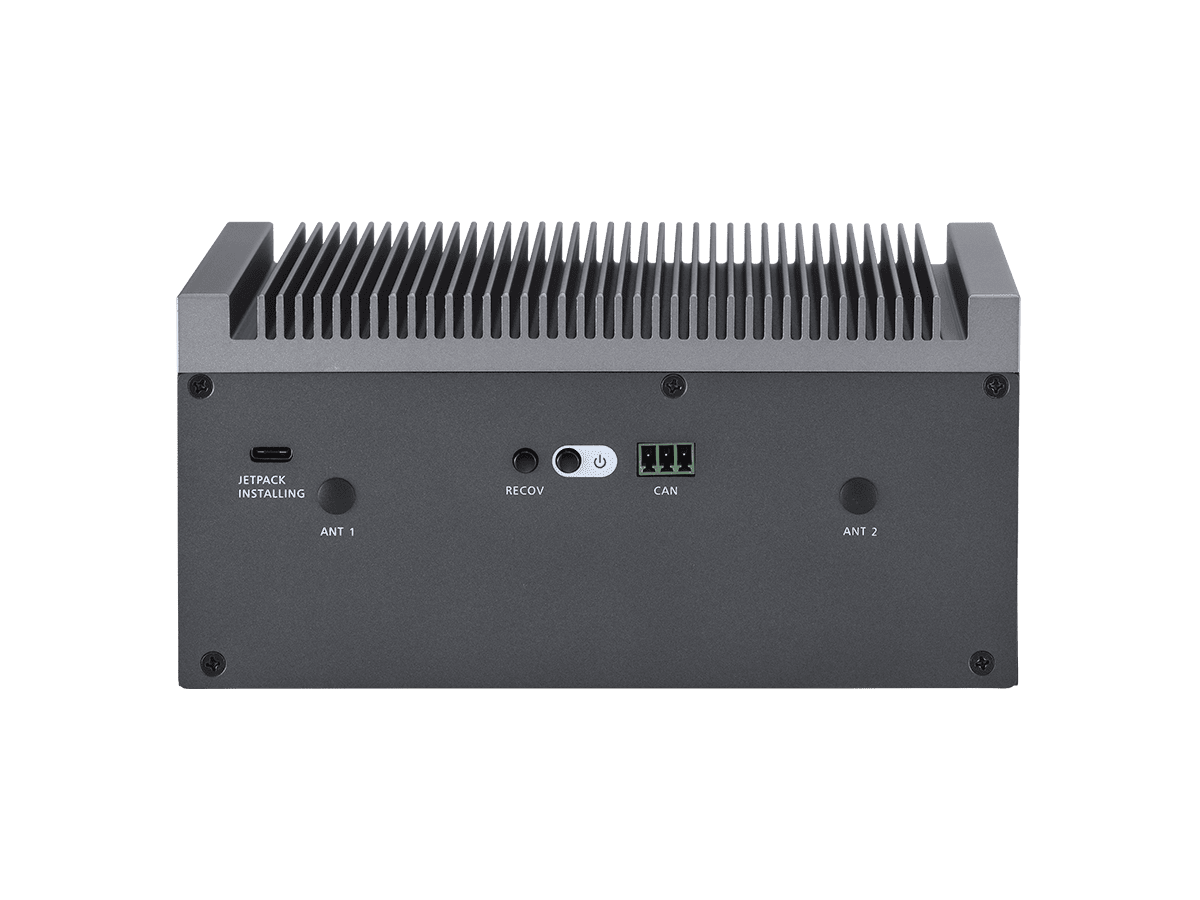

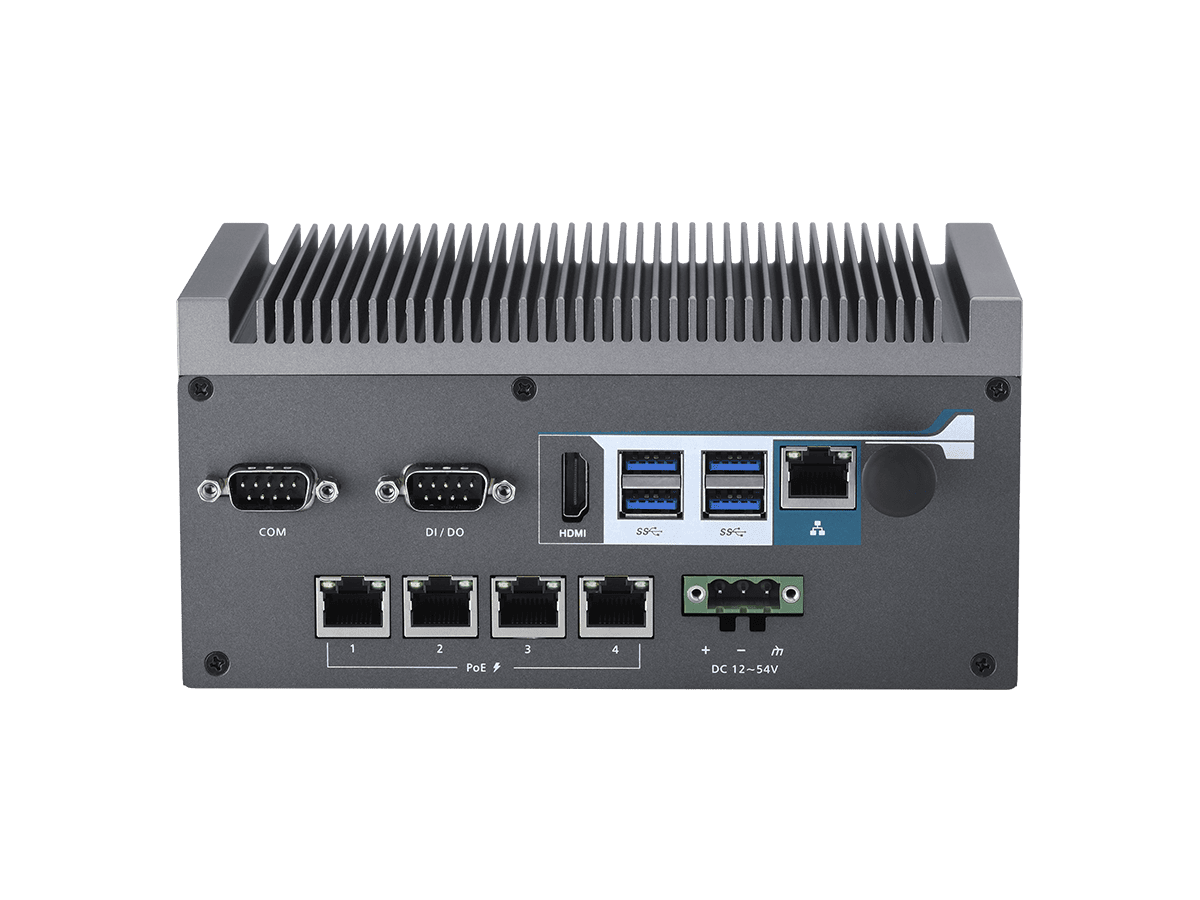

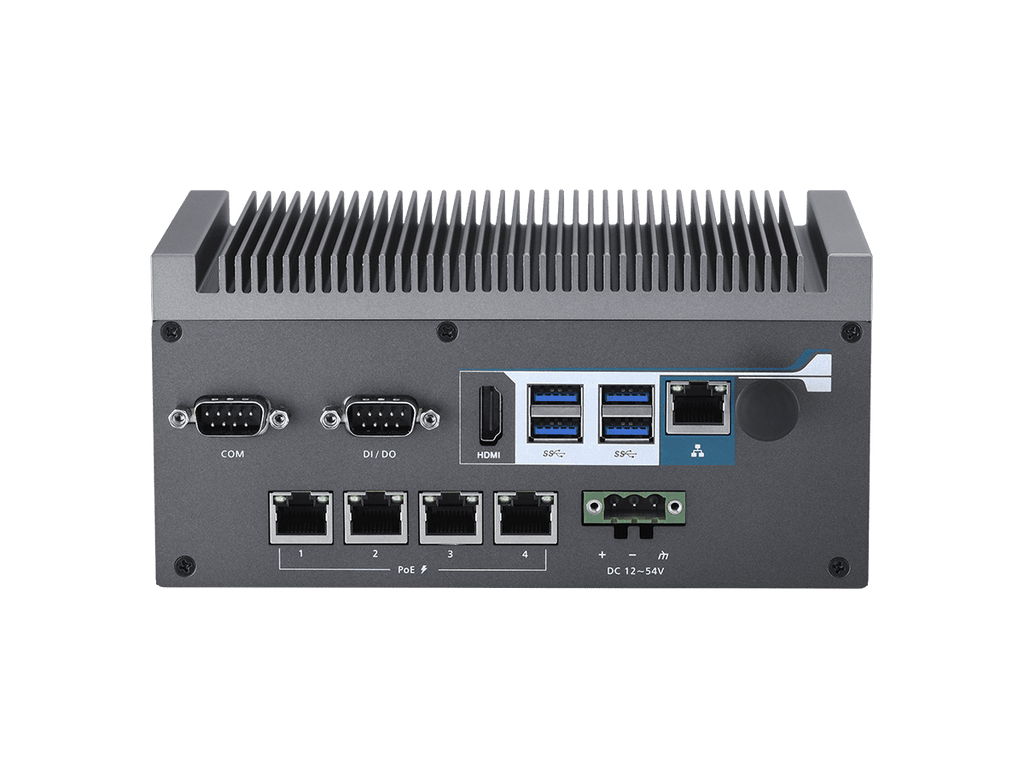

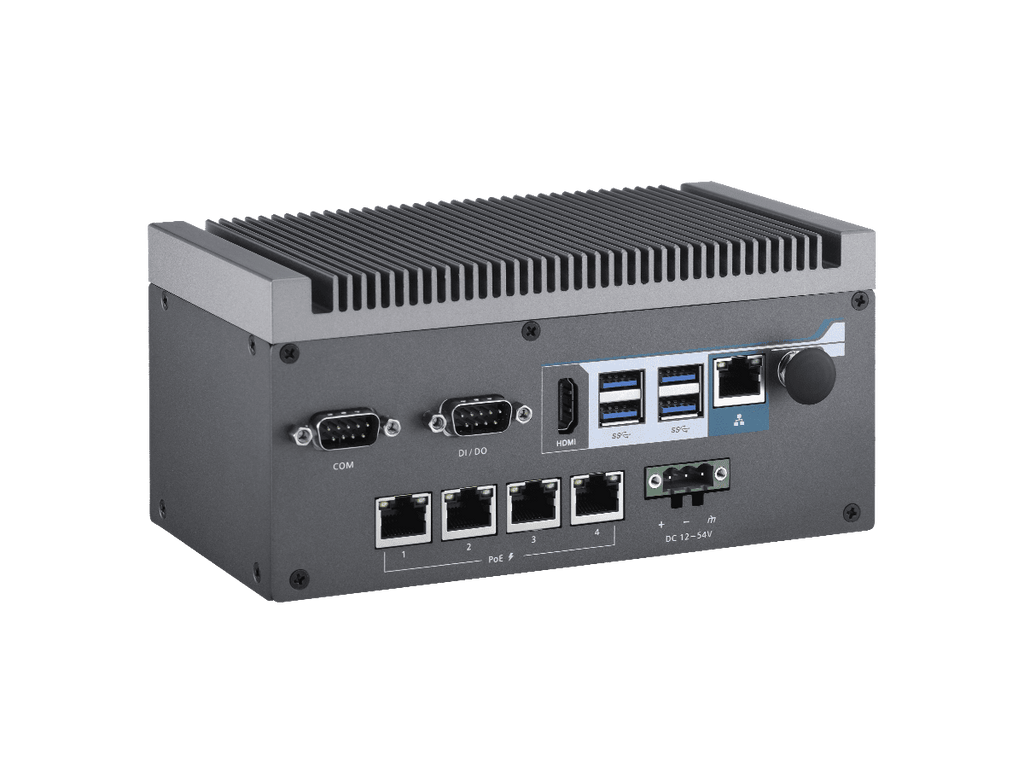

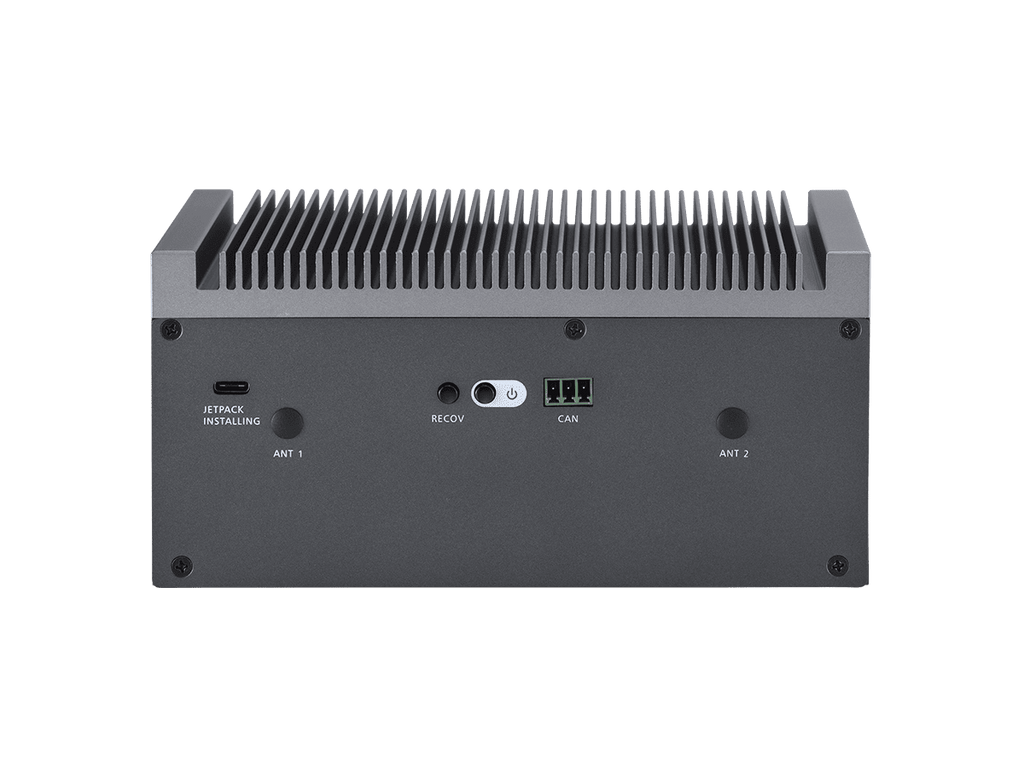

Arbor AEC-4201 (NVIDIA® Jetson Orin™ NX, 117/157 TOPS, 4x PoE+)
Price on request
The Arbor AEC-4201 is a compact industrial Edge AI computer powered by NVIDIA® Jetson Orin™ NX, available with 8 GB or 16 GB LPDDR5. It delivers up to 157 TOPS for machine vision and edge inference, with four PoE+ ports and reliable operation in demanding industrial environments.
Key features
- NVIDIA® Jetson Orin™ NX 8 GB or 16 GB with Super Mode
- 117 or 157 TOPS AI performance
- 4x GbE PoE+ and 1x Gigabit Ethernet
- 4x USB 3.2 Gen 1 and HDMI 2.0 with 4K output
- 128 GB NVMe SSD, expandable up to 2 TB
- M.2 M-Key, E-Key and B-Key expansion for storage, Wi-Fi and 4G/5G
- RS-232/422/485, GPIO and CAN 2.0 interfaces
- Wide 12–54 VDC input
- -20°C to 65°C operating temperature
- Ubuntu 22.04 and NVIDIA JetPack 6.2
Available configurations
- AEC-4201-08: Jetson Orin NX 8 GB, 117 TOPS.
- AEC-4201-16: Jetson Orin NX 16 GB, 157 TOPS.
System
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit (AEC-4201-08) or 8-core (AEC-4201-16) |
|---|---|
| Memory | 8 GB or 16 GB LPDDR5 |
| GPU | 1024-core NVIDIA Ampere™ GPU with 32 Tensor Cores |
| AI performance | 117 TOPS (8 GB) or 157 TOPS (16 GB) |
| Storage | M.2 M-Key 2280; 128 GB NVMe SSD as standard, optional up to 2 TB |
Interfaces and expansion
| Network | 1x Gigabit Ethernet and 4x Gigabit Ethernet PoE+ |
|---|---|
| USB | 4x USB 3.2 Gen 1 Type-A and 1x USB 2.0 Type-C for recovery |
| Serial/GPIO | 1x RS-232/422/485 and 1x DB9 for 6-bit GPIO |
| Video | 1x HDMI 2.0, 3840 × 2160 at 30 Hz |
| Expansion | M.2 M-Key 2280, E-Key 2230 and B-Key 3042/3052; 1x SIM; 1x CAN 2.0 |
Environment, power and mechanical
| Input | 12–54 VDC |
|---|---|
| Operating temperature | -20°C to 65°C, with 0.63 m/s airflow and 25 W TDP |
| Storage temperature | -40°C to 85°C |
| Humidity | 5–95%, non-condensing |
| Vibration | 2 Grms, 5–500 Hz, IEC 60068-2-64 |
| Certifications | CE and FCC; EN 50155 and EN 50121-3-2 pending |
| Mounting | Wall mount |
| Dimensions/Weight | 180 × 96(+) × 85.9 mm; 2.0 kg |
| Operating system | Ubuntu 22.04 / NVIDIA JetPack 6.2 |
Ordering information
| AEC-4201-08 | Jetson Orin NX 8 GB, 117 TOPS, 1x COM, 3x DI/3x DO, 1x LAN, 4x PoE+ and 4G/5G support |
|---|---|
| AEC-4201-16 | Jetson Orin NX 16 GB, 157 TOPS, 1x COM, 3x DI/3x DO, 1x LAN, 4x PoE+ and 4G/5G support |
