Arbor ARES-2000 Series (Intel® Core™ 5 120U, 3x 2.5GbE)
Price on request
ARES-2000 Series
Ultra-compact fanless industrial Box PC with Intel® Core™ 5 120U
- 14th Gen Intel® Core™ 5 120U processor
- Ultra-compact fanless 1U design
- 1x 262-pin DDR5 SO-DIMM socket
- Up to 3x 2.5GbE LAN ports
- Up to 3x USB ports: 2x USB-A 3.2 Gen 2 and 1x USB-C 3.2
- Up to 3 simultaneous displays via 2x HDMI 2.0 and USB-C with DisplayPort Alt Mode
- 1x RS-232/422/485 port via RJ45
- M.2 M-Key 2242 storage with PCIe Gen4 x4 or SATA
- CAN version with 2x 2kV-isolated CAN FD
- JC1 version with LTE expansion and audio input/output
- 9–36 VDC power input and remote switch
- 188 × 120 × 44 mm dimensions and 1.1 kg weight
- -20°C to 60°C operating temperature
- MIL-STD-810H compliant for shock and vibration
- Supports Windows 10, Windows 11 and Ubuntu
System
| CPU | 14th Gen Intel® Core™ 5 120U (Raptor Lake-U) |
|---|---|
| Memory | 1 × DDR5 SO-DIMM socket |
| Graphics | Integrated Intel® Graphics |
| TPM | TPM 2.0 |
Interfaces
| Network | Up to 3 × RJ45 2.5GbE |
|---|---|
| Video | 2 × HDMI and 1 × USB-C with DisplayPort Alt Mode; up to 3 simultaneous displays |
| USB | USB 3.2 and USB-C |
| Serial | RS-232/422/485 |
| Expansion | M.2 M-Key; JC1 variant includes M.2 B-Key and SIM slot for LTE; CAN variant includes 2 × isolated CAN FD |
Physical and environmental
| Power input | 9–36 VDC, 90 W maximum |
|---|---|
| Dimensions | 188 × 120 × 44 mm |
| Weight | 1.1 kg |
| Operating temperature | -20°C to 60°C |
| Mounting | DIN rail, wall and VESA |
| Certifications | CE, FCC Class A and MIL-STD-810H compliance |
Models

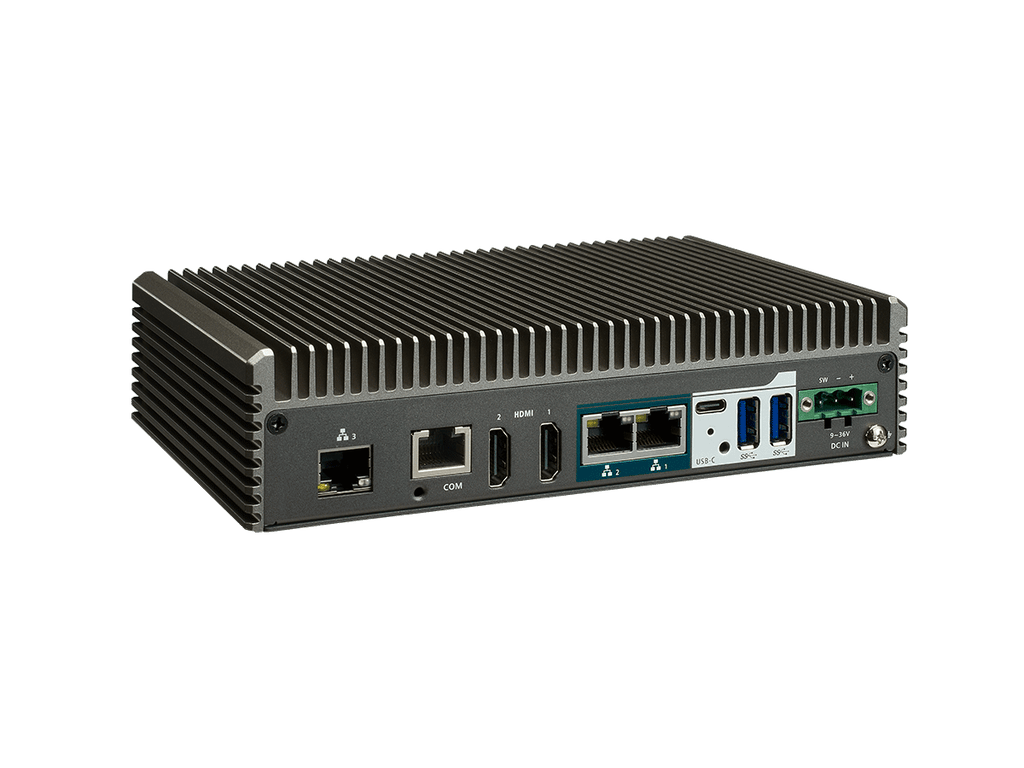

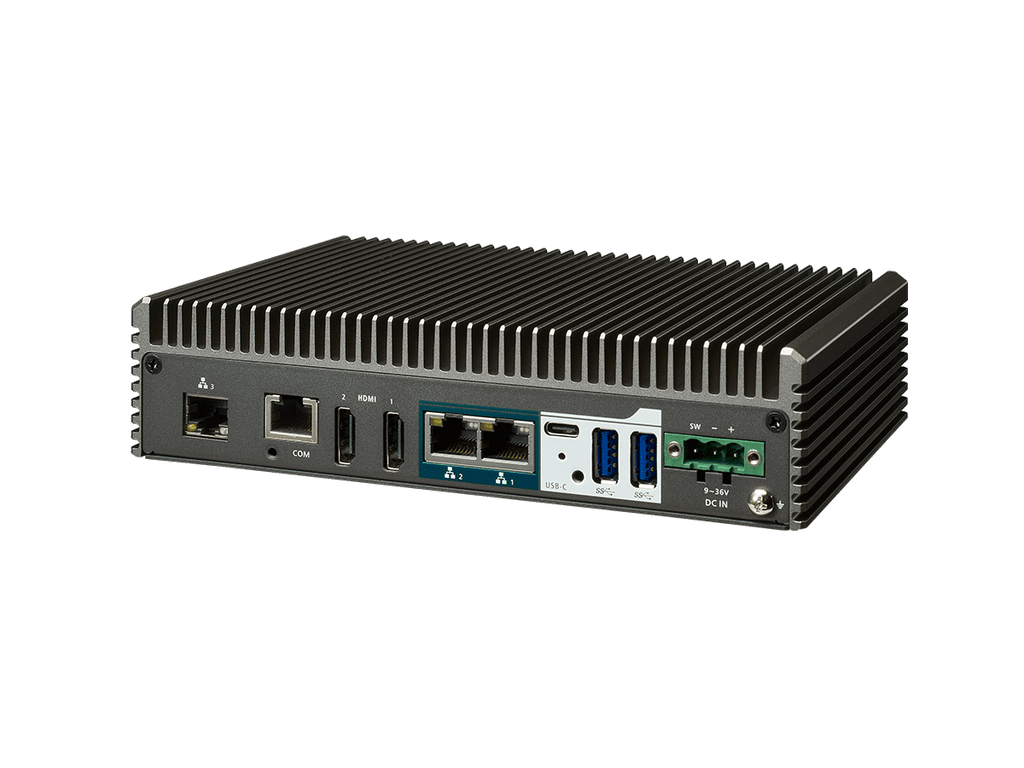

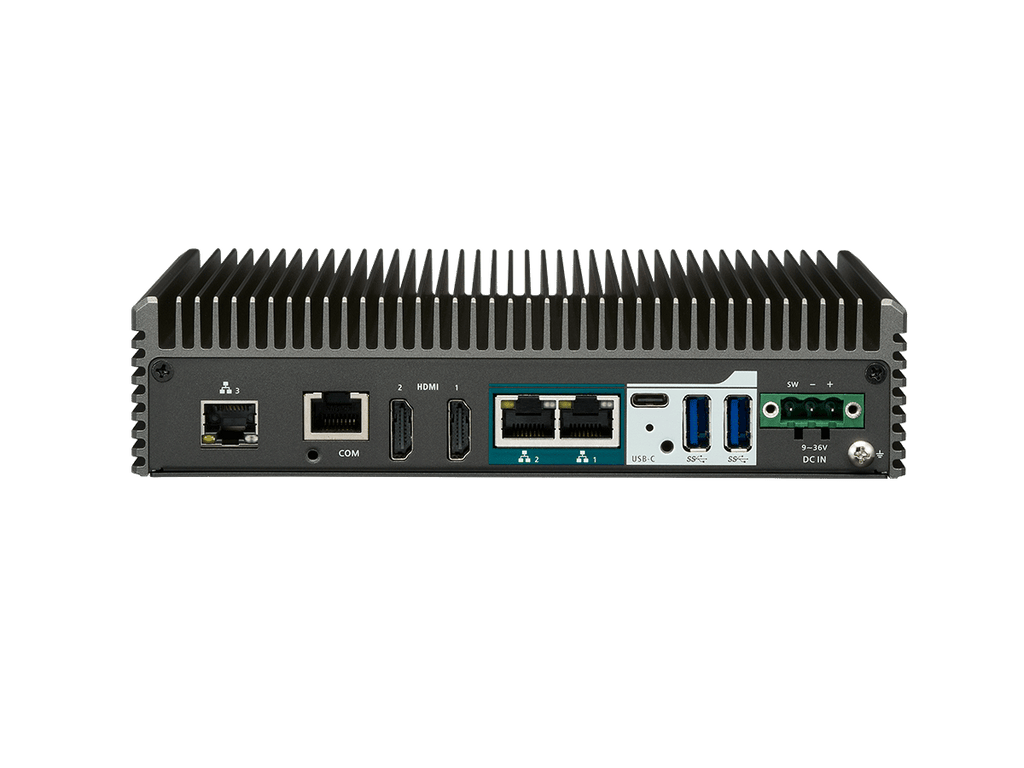

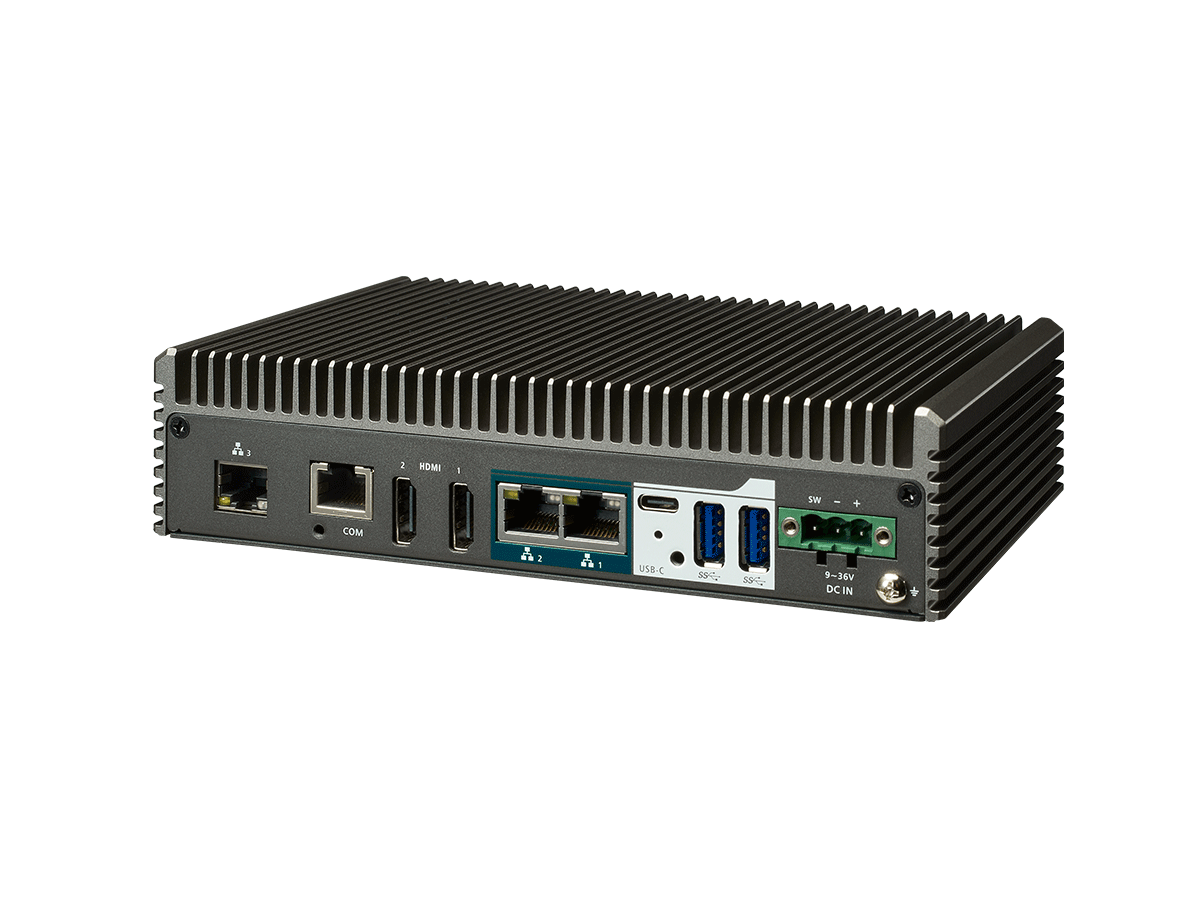

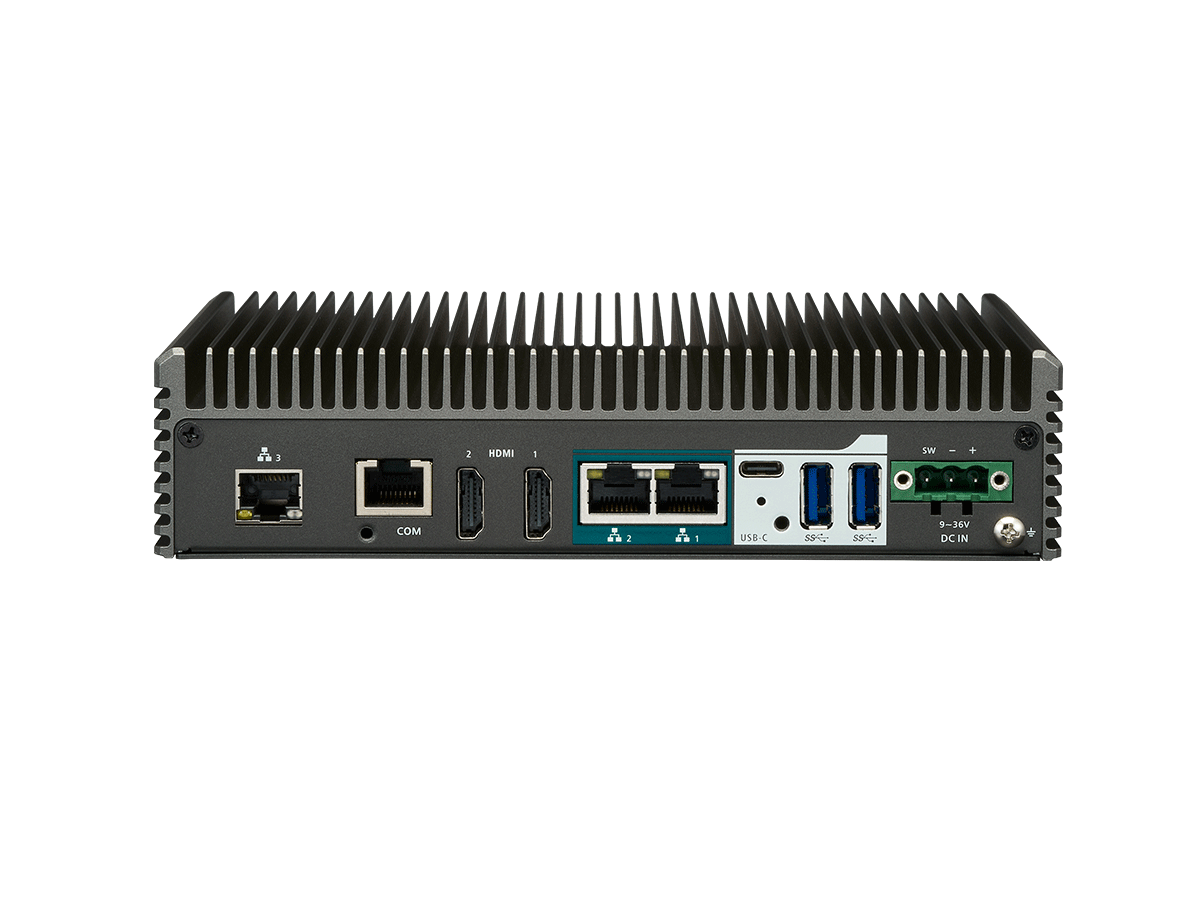

| ARES-2000-LAN | Network configuration |
|---|---|

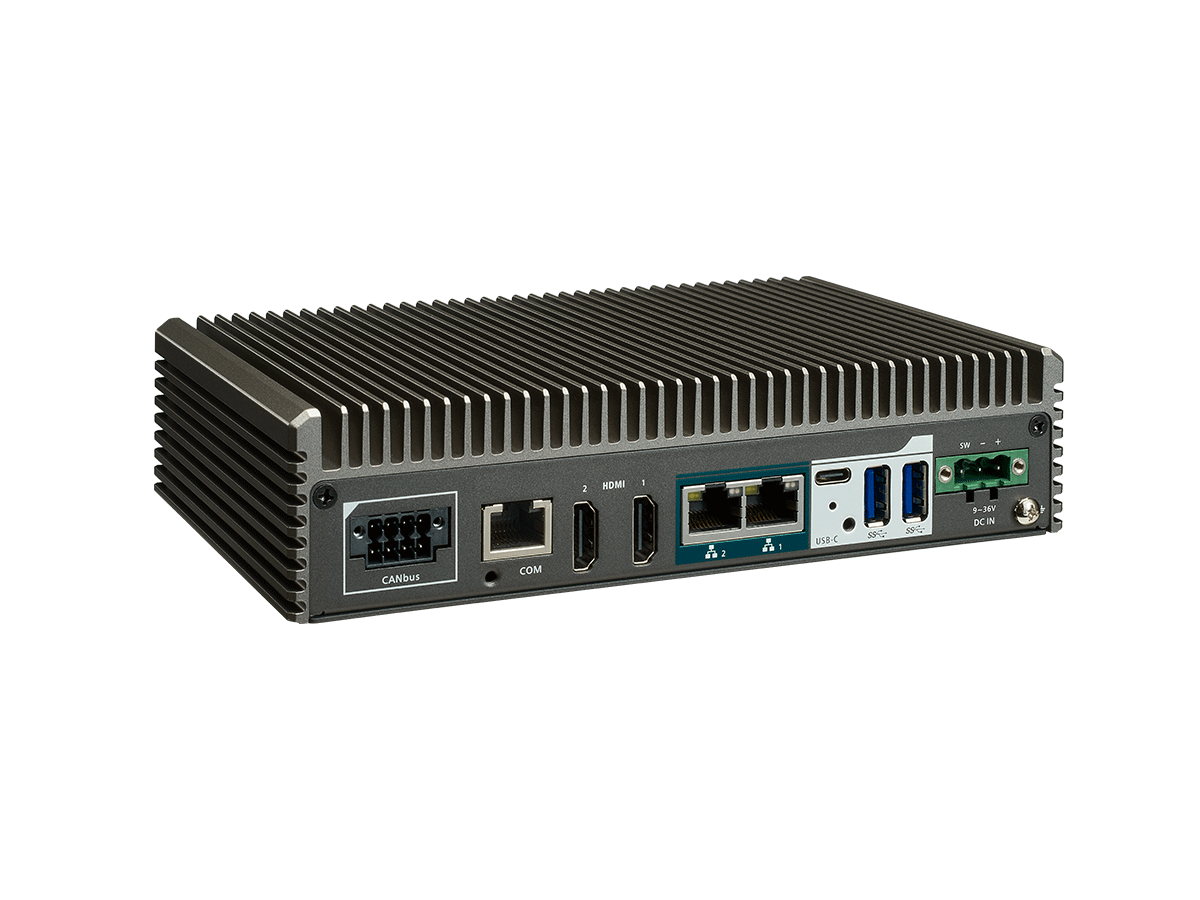

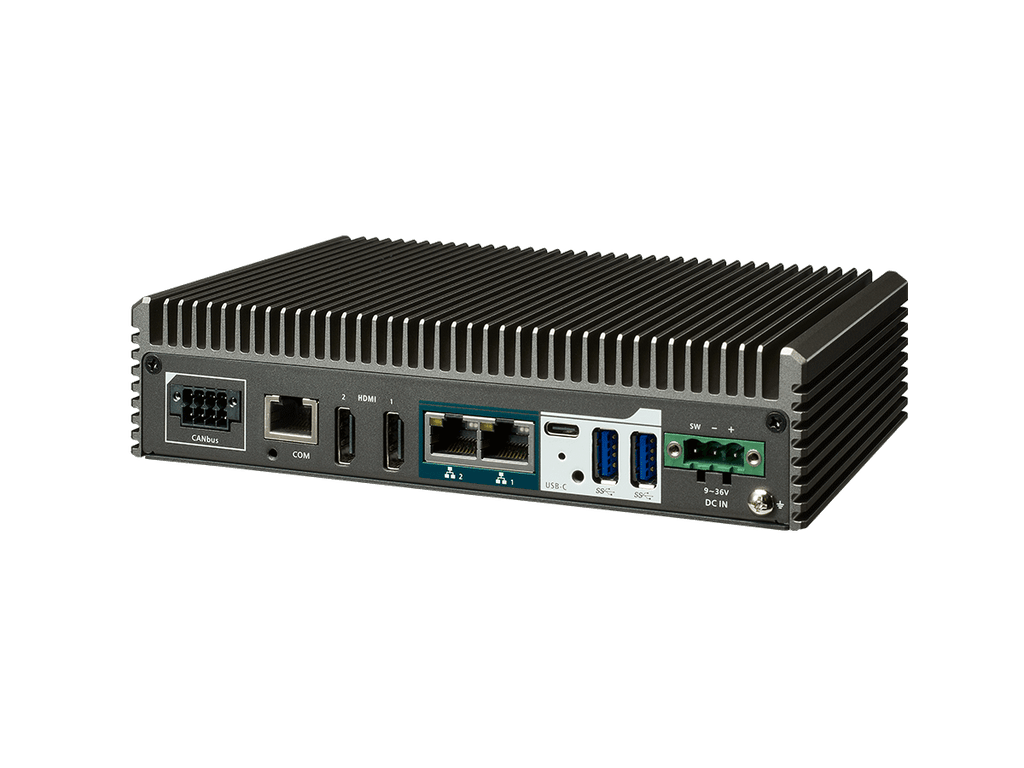

| ARES-2000-CAN | 2 × isolated CAN FD |

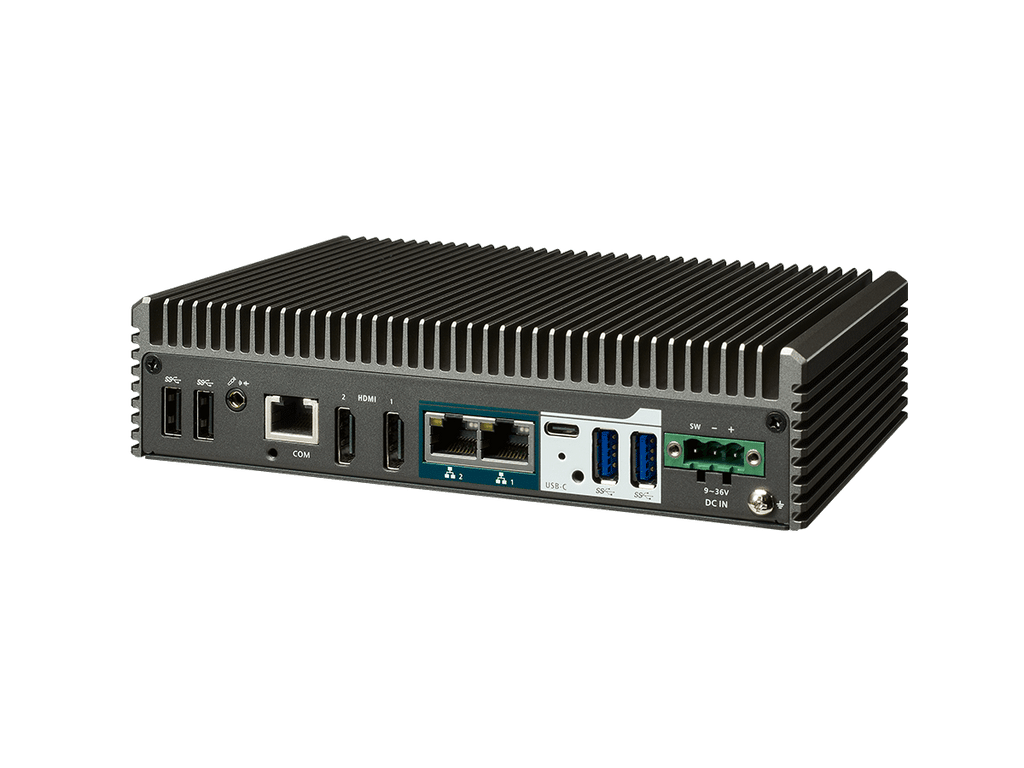

| ARES-2000-JC1 | M.2 B-Key and SIM slot for LTE |
