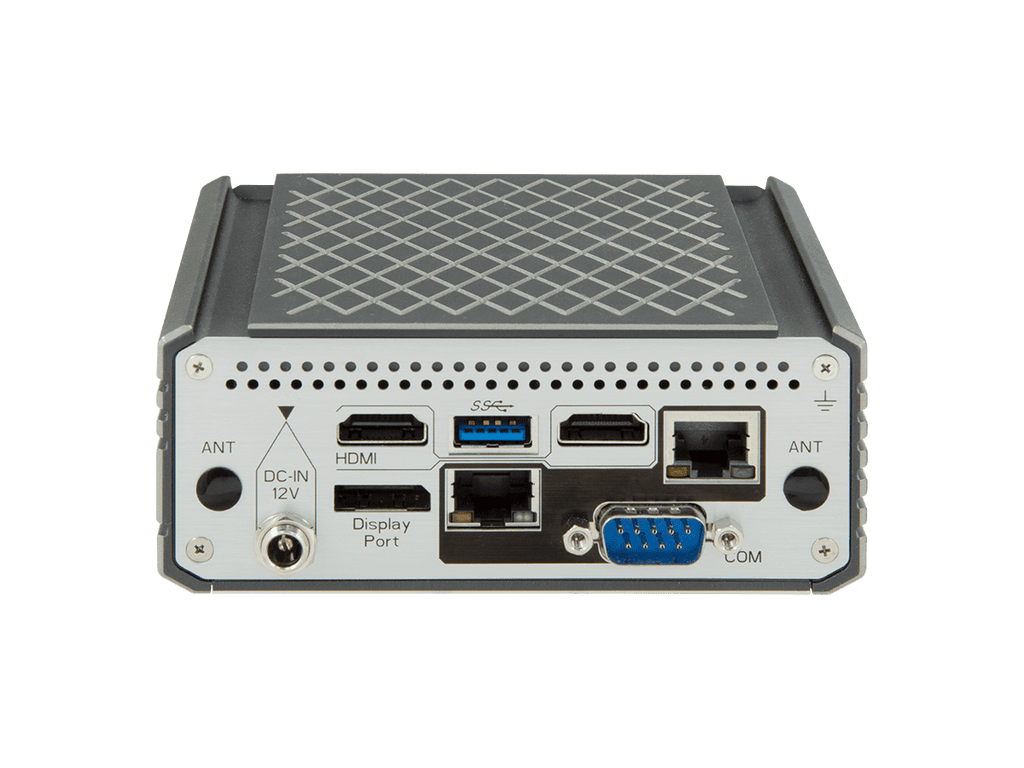

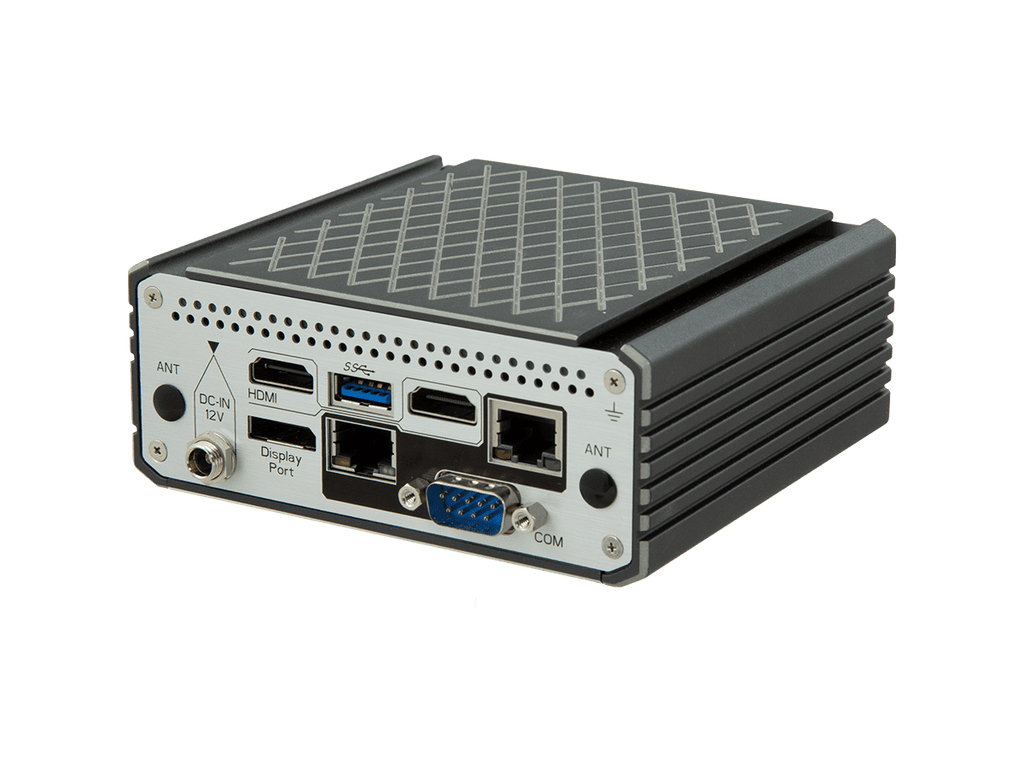

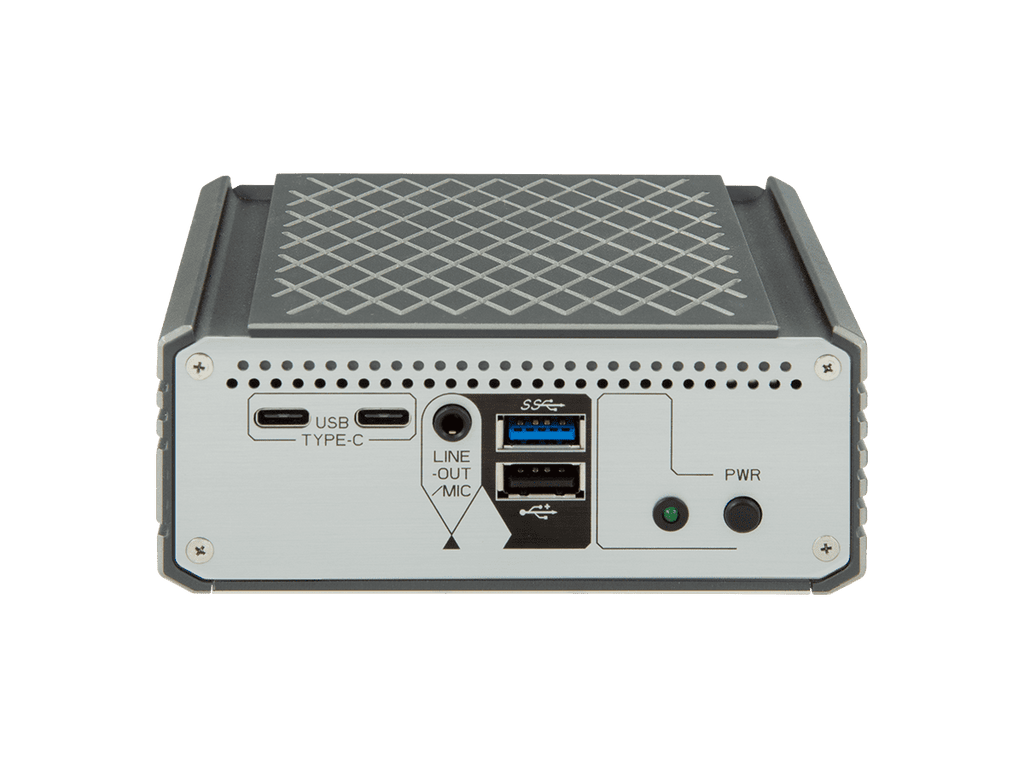

Arbor ELIT-1060 (Elkhart Lake N6210, Dual 2.5Gb LAN, HDMI, DP)
Price excludes VAT
448.00€
Sale price
Price excludes VAT
448.00€
Regular price
Total with VAT (23%): 551.04€
Shipping calculated at checkout.
ELIT-1060
Ultra-compact triple-display terminal powered by an Intel® Elkhart Lake processor
- Fanless design
- Intel® Celeron® N6210 (1,5M cache, up to 2,60 GHz)
- Ultra-compact fanless design
- Triple-display support: 2 x HDMI, 1 x DisplayPort
- 32GB eMMC Incorporado
- Dual 2.5Gb Ethernet and TPM 2.0 support
- 1 x COM, 2 x USB3.2 (Gen.2), 1 x USB2.0, 2 x USB Type-C
- 1 x M.2 M-key (2260/2280), 1 x M.2 E-key (2230)
- Compatible with Windows® 10 and Windows® 11
System
| CPU | Intel soldered onboard® Celeron® N6210 Dual Core processor, 1.20GHz |
|---|---|
| Memory | 1 x 260-pin DDR4 SO-DIMM socket, up to 32GB (4GB DDR4 SO-DIMM pre-installed) |
| Chipset | Integrated SoC |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| TPM | TPM 2.0 support |
| Watchdog Timer | 1~255-level reset |
I/O Interface
| Serial Port | 1 x DB-9 connector for RS232(Default)/422/485 (RI/5V/12V) |
|---|---|
| USB Port | 2 x Type-A USB 3.2 (Gen 2),1 x Type-A USB 2.0, 2 x Type-C USB 3.2 (Gen 2) |
| LAN | 2 x RJ-45 ports for 2.5 GbE LAN |
| Serial Port | 1 x Micro-B RS232 half-duplex |
| Video Port | 1 x DP (maximum resolution: 4096x2160@60Hz), 2 x HDMI 2.0 (maximum resolution: 4096x2160@60Hz) |
| Audio | Line-out/MIC-in combo |
| Expansion Bus | 1 x M.2 E-key (2230, PCIe Gen.3 x1/ USB2.0 interface) for wireless connectivity |
Environmental
| Operating Temperature | -20 ~ 60 °C |
|---|---|
| Storage Temperature | -20 ~ 60 °C |
| Operating Humidity | 10% ~ 95% RH @ 60°C (non-condensing) |
| Vibration | 3 Grms / 5~500Hz / random operation |
| Shock | Operating: 50G (11ms) with eMMC |
Power Requirement
| Power Input | DC 12V input via lockable DC jack |
|---|---|
| Power Consumption | Typical: 24W (without I/O cards) |
Mechanical
| Construction | Aluminium alloy |
|---|---|
| Mounting | Desktop (default), Wall mounting and DIN-rail mounting (optional) |
| Weight | 0.66Kg |
| Dimensions (W x H x D) | 118 x 108 x 48mm |
Storage
| Type | Onboard 32GB eMMC 1 x M.2 M-key(2260/2280, PCIe Gen.3 x2/SATA interface) with NVMe support |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
OS Support
| Windows® 10 /Windows® 11 |
Ordering Information
| ELIT-1060 | Ultra-compact Intel controller® Celeron N6210 with 32GB eMMC |
|---|
