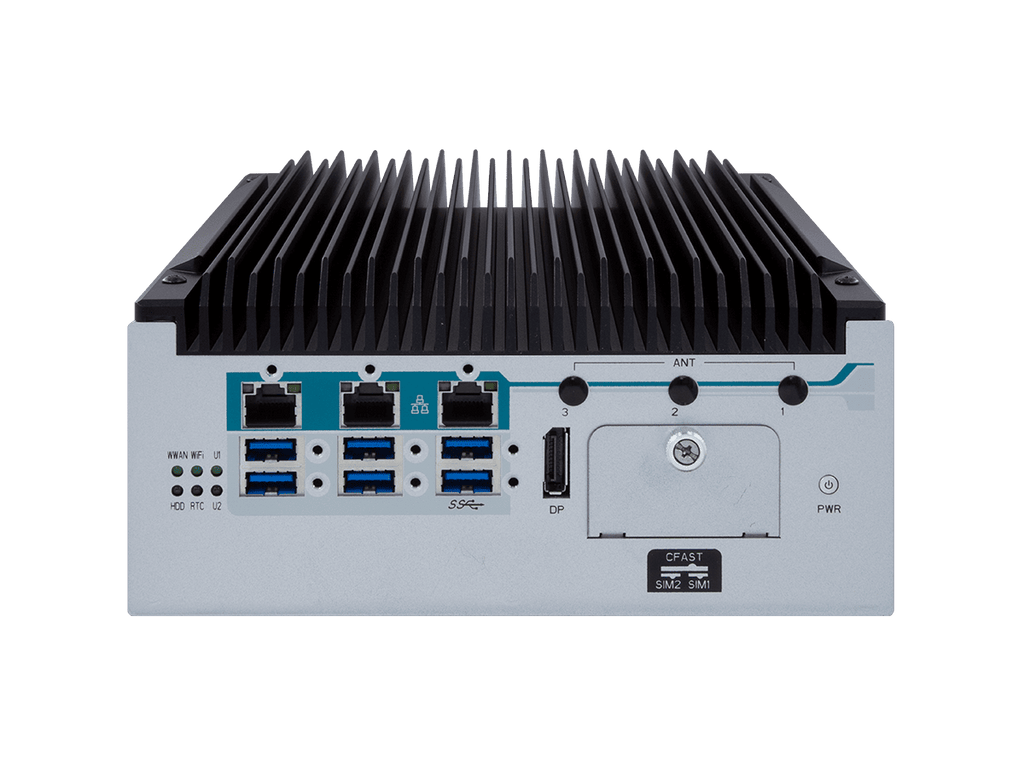

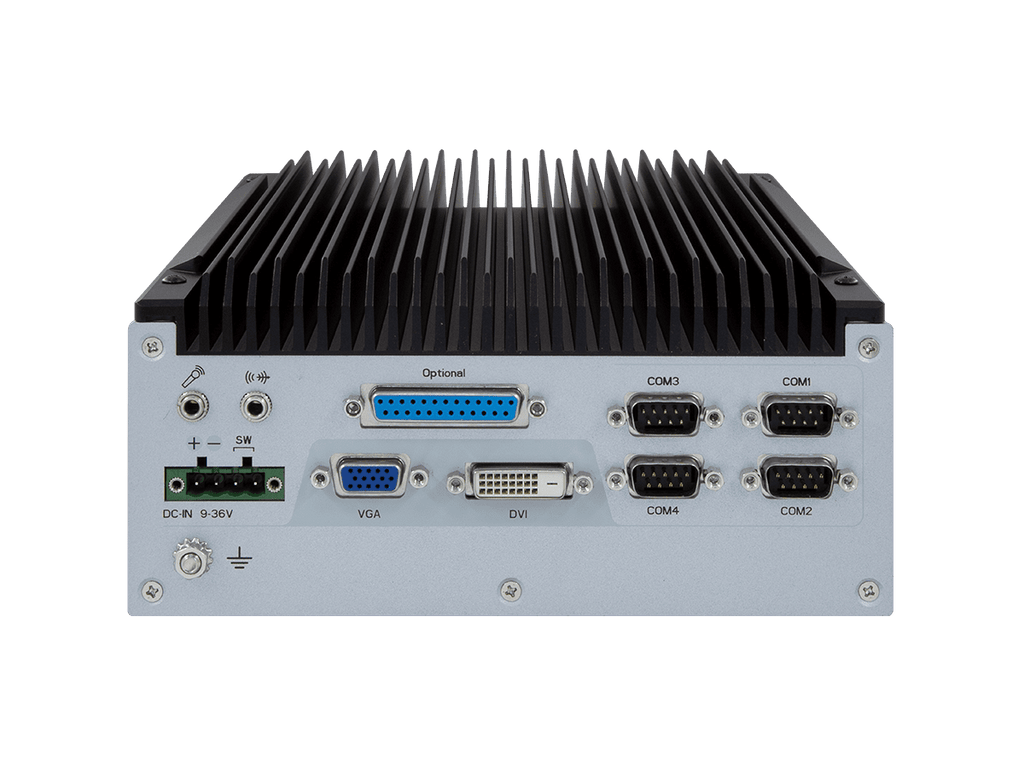

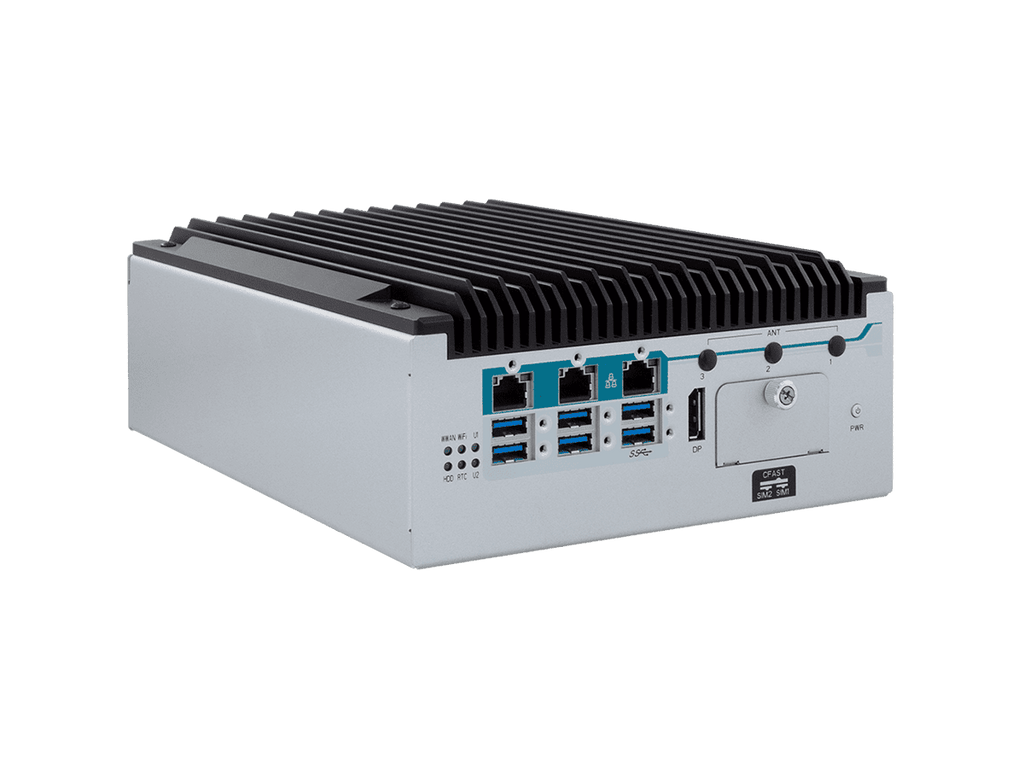

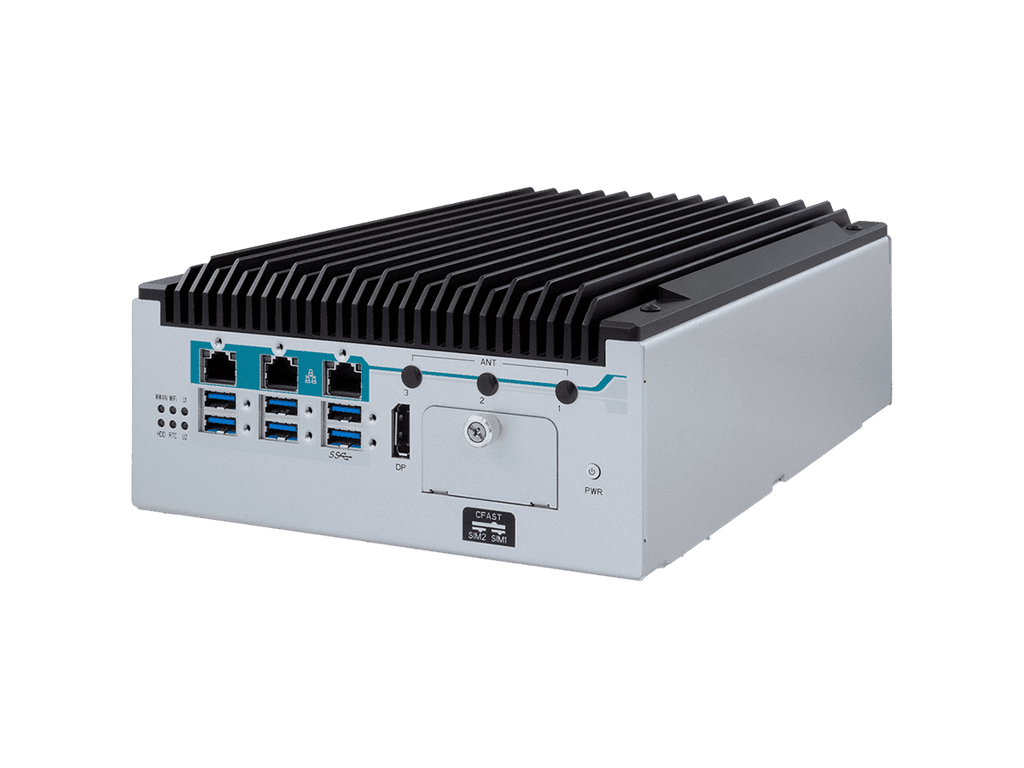

Arbor FPC-8210 (Intel® 14/ 13/ 12 ger. LGA1700, 3 2.5GbE, 9-36VDC)
Price excludes VAT
838.00€
Sale price
Price excludes VAT
838.00€
Regular price
Total with VAT (23%): 1,030.74€
Shipping calculated at checkout.
FPC-8210
Rugged Box PC for 14/ 13/ 12 Generation Intel® Core™, LGA1700 socket, DDR4 SO-DIMM 64GB
- Fanless design
- Wide-range DC power input (9~36V)
- Support for various video interfaces (VGA + DVI-D+DP)
- TPM 2.0 support
- Optional Wi-Fi or LTE wireless connectivity support
- Rugged design for shock / vibration protection
- Memory support up to 64GB
System
| CPU | Intel® 14thth/ 13thth/ 12thth Gen. Core™ i9/i7/i5/i3 processor in LGA1700 socket |
|---|---|
| Memory | 2 x 260-pin DDR4 SO-DIMM sockets, supporting 3200 MHz SDRAM up to 64GB |
| Chipset | Intel® H610E |
| Graphics | Integrated Intel® HD Graphics |
| ATA | 2 x Serial ATA ports with a 600MB/s HDD transfer rate |
| LAN Chipset | 3 x Intel® WGI226V 2.5GbE controllers |
| Watchdog Timer | 1~255-level reset |
I/O Interface
| Serial Port | 4 x RS-232 ports with DB-9 connectors. COM1 and COM2 are configurable as RS-232/422/485) |
|---|---|
| Selectable Port | 1 x DB25 connector for DIO (8 in/8 out) port or LPT port (either one, DIO by default) |
| USB Port | 2 x USB 3.2 Gen2 ports (10Gbps) 4 x USB 3.2 Gen1 ports (5Gbps) Supports an internal USB dongle (optional) |
| LAN | 3 x RJ-45 ports for 2.5GbE |
| Video Port | 1 x DB-15 female connector for analog RGB 1 x DP 1 x DVI-D female connector for digital video output * Supports 3 independent displays |
| Audio | Mic-in / Line-out |
| Expansion Bus | 1 x Mini-card socket interconnected with a SIM card socket (full-size) 1 x M.2 E Key (2230) for Wi-Fi (CNVi only) 1 x M.2 B Key (2242/3052/2280) with (PCIex2+USB3.0+SATA), interconnected with SIM for 5G / LTE expansion or storage |
Environmental
| Operating Temp. | -20 ~ 70°C (-4 ~ 158°F), ambient with airflow (with 35W TDP CPU, fanless) -20 ~ 55°C (-4 ~ 131°F), ambient with airflow (with 65W TDP CPU, fanless) |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 55°C (non-condensing) |
| Vibration | 3 Grms / 5~500Hz / random operation with SSD |
| Shock | Operating: 40G (11ms); non-operating: 60G with SSD |
OS Support
| System | Windows 10 IOT / Windows 11 IOT Linux (Ubantu 22.04) |
|---|
Storage
| Type | 2 x 2.5” drive bays (optional RAID0,1 support, BTO) 1 x CFast socket, externally accessible |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power Requirement
| Power Input | DC 9~36V input (with 4-pin terminal block, combined with remote power on/off switch) |
|---|---|
| Power Consumption | MAX 65W (with 35W TDP CPU, without I/O card) MAX 95W (with 65W TDP CPU, without I/O card) |
Mechanical
| Construction | Aluminum Alloy |
|---|---|
| Mounting | Wall-mount |
| Weight | 4.2 kg (9.26 lb) |
| Dimensions (W x D x H) | 195 x 268 x 90 mm |
Ordering Information
| FPC-8210 | Fanless system, without expansion |
|---|
