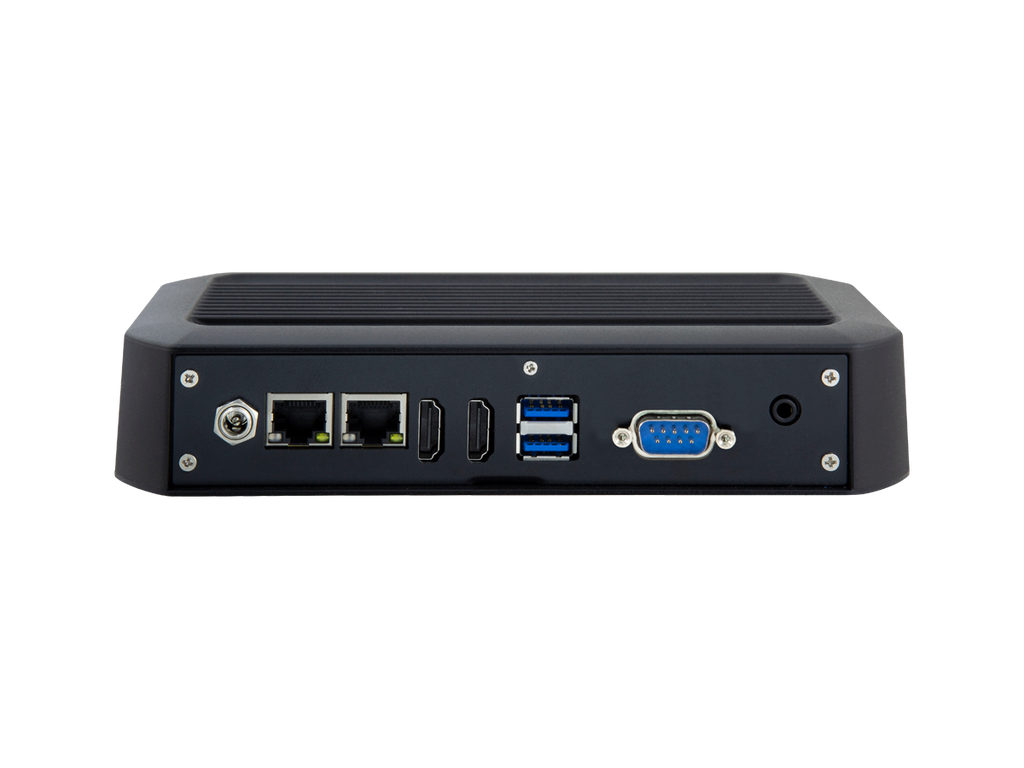

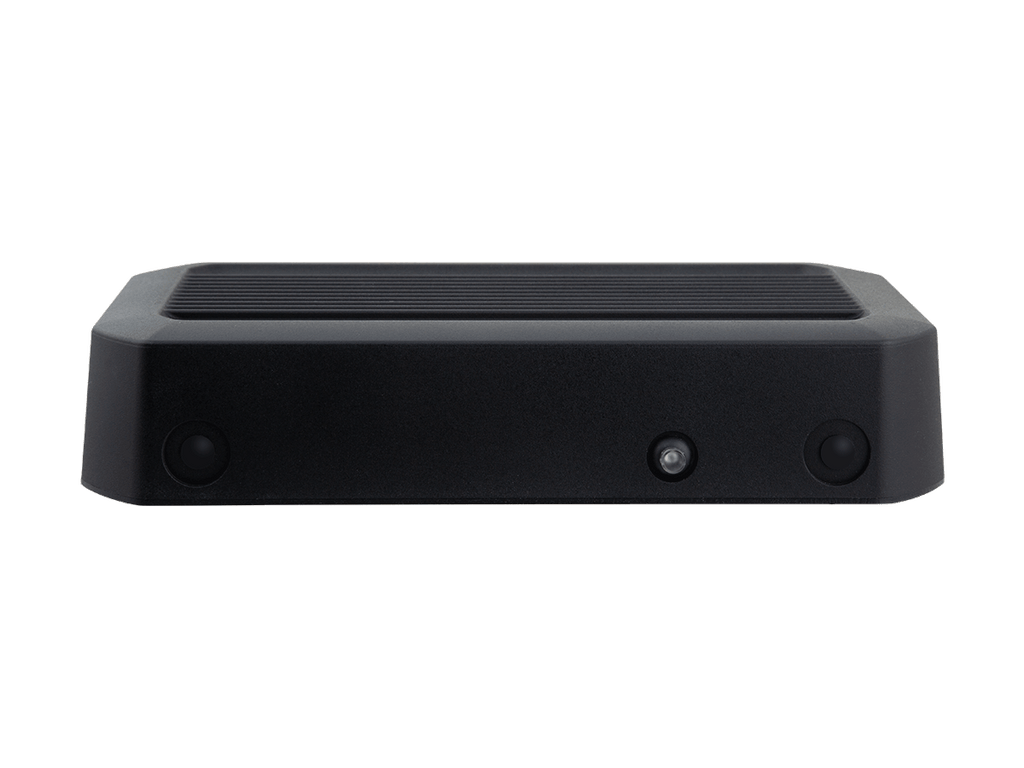

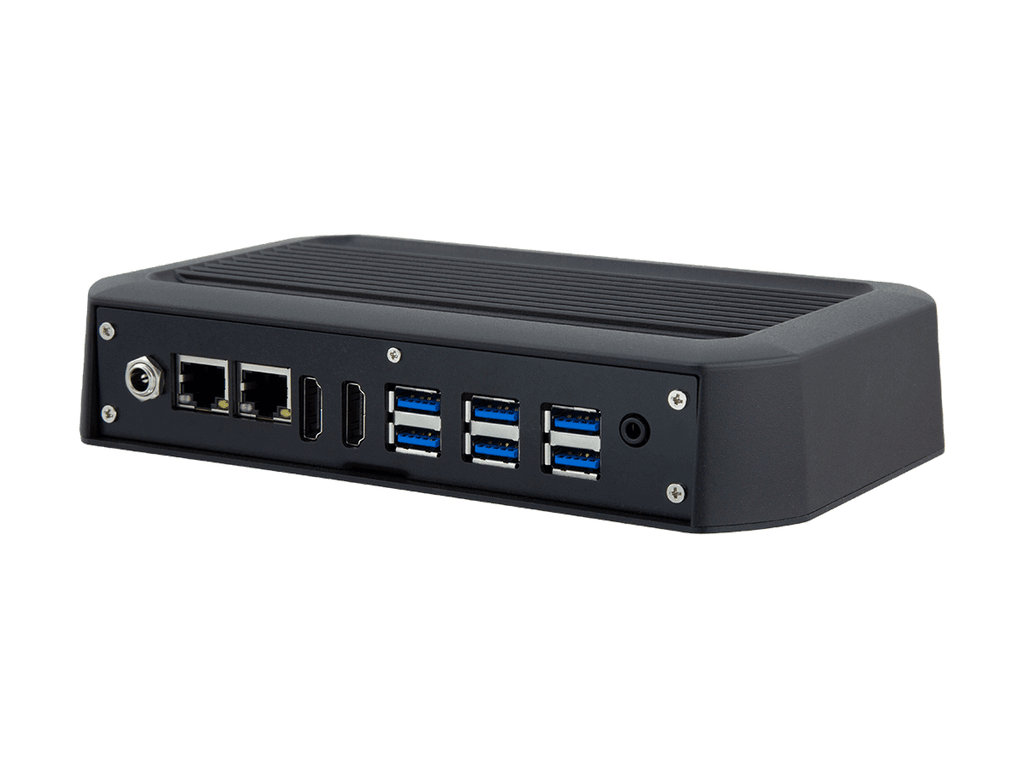

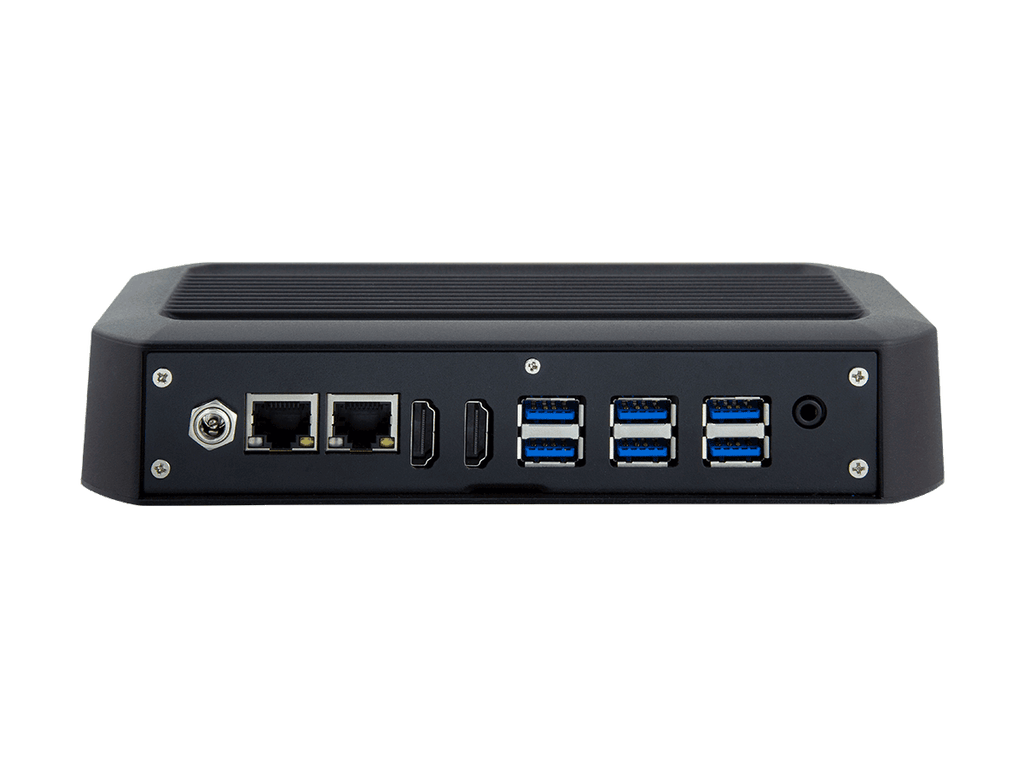

Arbor IEC-3366 (Tiger Lake i5-1135G7, Dual LAN, 8GB RAM/ M.2 256GB)
Price excludes VAT
832.80€
Sale price
Price excludes VAT
832.80€
Regular price
Total with VAT (23%): 1,024.34€
Shipping calculated at checkout.
IEC-3366-1135G7-6U
Digital Signage Player with Intel® Tiger Lake-UP3 processors
- 11th Generation Intel® Core Tiger Lake-UP3 processor
- Dual DDR4 SODIMM
- Dual HDMI
- Dual GbE RJ45
- 1 x M.2 2280 M-Key slot, 1 x M.2 2230 E-Key slot
- 1 x M.2 3052 B-Key slot
System
| CPU | Intel soldered onboard® 11th Generation Core i7/i5/i3 or Celeron® processor (Tiger Lake-UP3) |
|---|---|
| Memory | 2 x 260-pin DDR4 SO-DIMM sockets, supporting 3200MHz SDRAM up to 64GB |
| LAN chipset | 2 x Intel GbE RJ45 |
| Graphics | Integrated Intel® Iris® Xe / UHD Graphics (depending on CPU SKU) |
I/O
| Serial port | 1 x DB-9 male connector for RS-232 (option 1) |
|---|---|
| USB Port | 2 x USB 3.0 port2 (option 1) 6 x USB 3.0 ports (option 2) |
| LAN | 2 x RJ-45 ports for GbE |
| Video Port | 2 x HDMI with a maximum resolution of up to 4096*2160@30Hz |
| Audio | 1 x phone jack connector for Line-Out + MIC |
| Expansion Bus | 1 x M.2 2230 E-Key slot 1 x M.2 3052 B-Key slot |
Environmental
| Operating Temp. | 0 ~ 40°C ( 32 ~ 104°F), ambient with air flow |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 60°C (non-condensing) |
| Vibration | 1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operating |
| Shock | Operating 10G, Non-operating 20G |
OS Support
| System | Windows 10 / Linux Ubuntu |
|---|
Storage
| Type | 1 x M.2 2280 M-Key slot for SATA SSD |
|---|
Qualification
| Certification | CE, FCC |
|---|
Power Requirement
| Power Input | DC 12V input |
|---|---|
| Power Consumption | 1.28A @12V (typical with i7-1165G7) |
Mechanical
| Construction | Aluminum alloy |
|---|---|
| Weight (approx.) | 950g |
| Dimensions (W x H x D) | 198.5 x 124 x 38.7 mm |
Ordering Information
| IEC-3366-1135G7-6U | Intel® Core i5-1135G7 Processor, 2 HDMI, 2 GbE, 6 USB, 8GB SDRAM, 256GB M.2 SSD |
|---|---|
| IEC-3366-1115G4 | Barebone system with Intel® Core i3-1115G4 Processor |
| IEC-3366-6305E | Barebone system with Intel® Celeron 6305E Processor |
Dimensions
