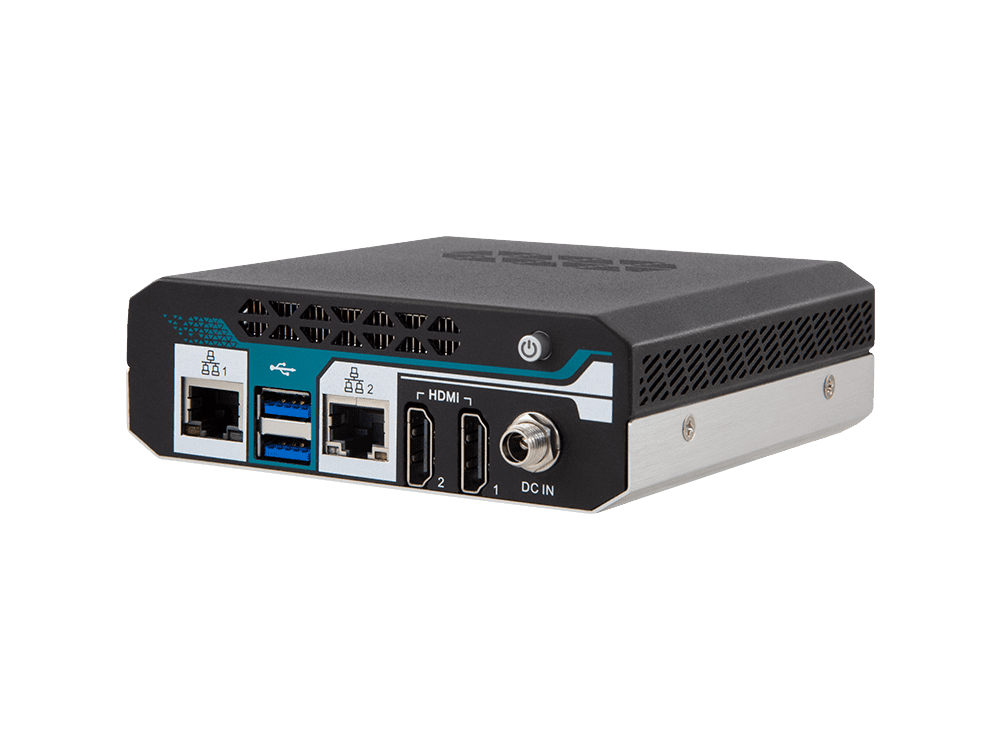

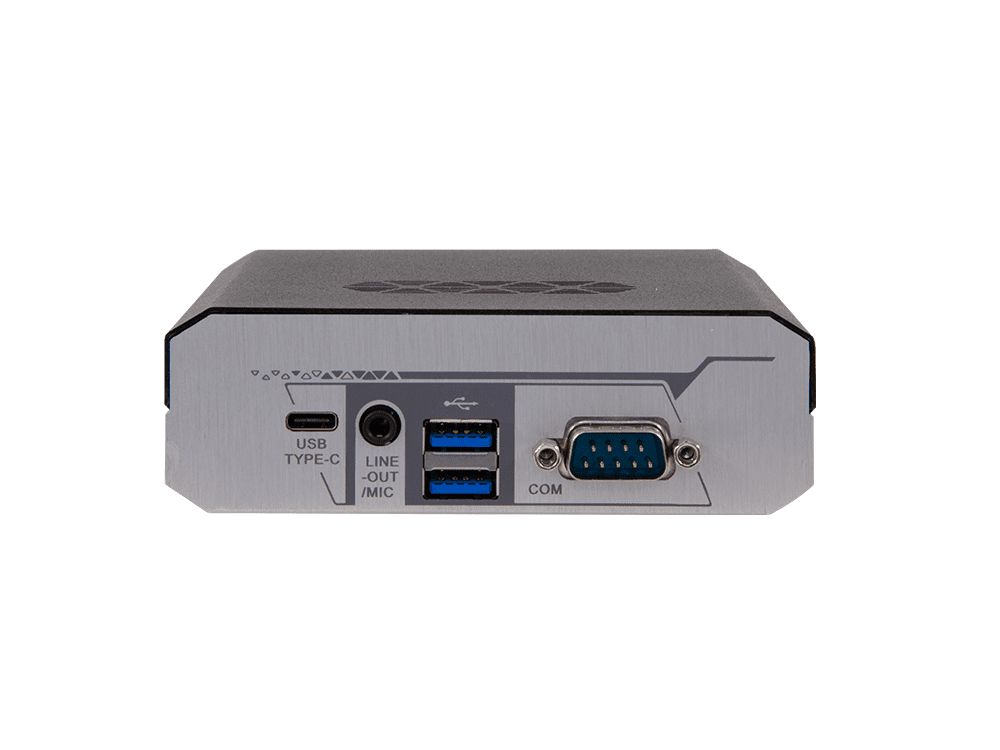

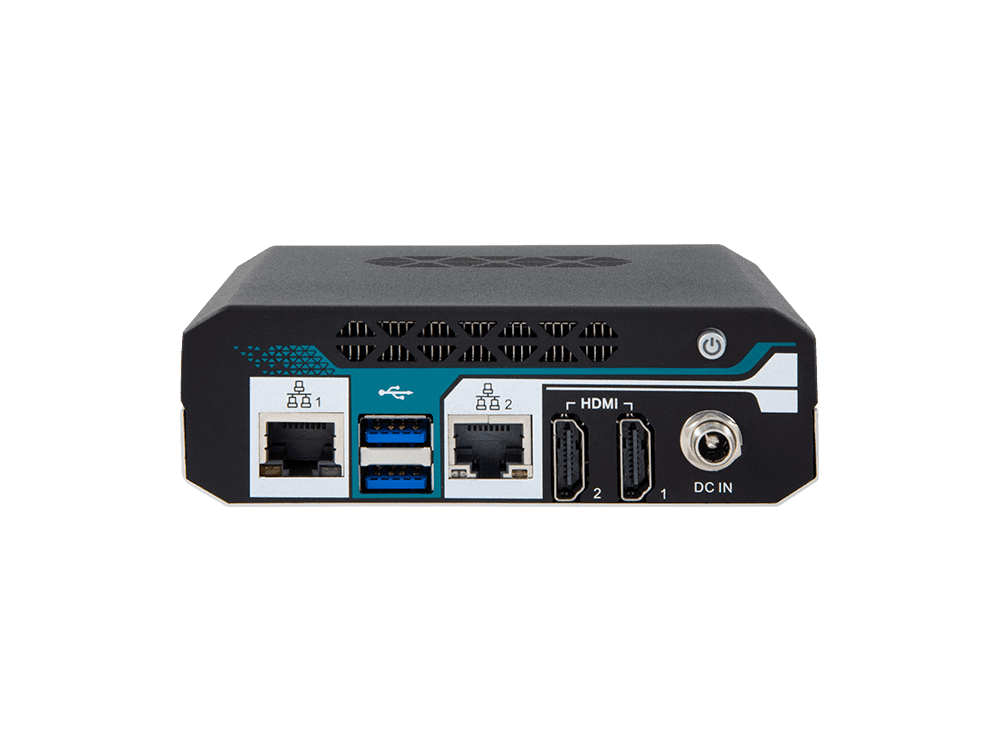

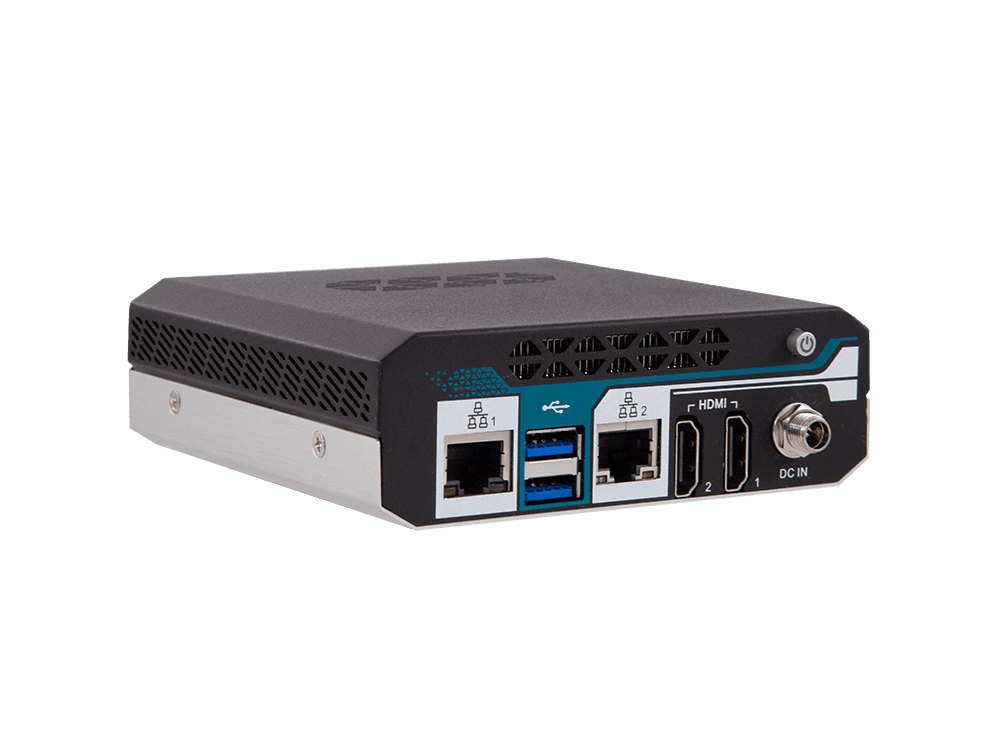

Arbor IEC-3702 (Core i5-1135G7, 64GB RAM, 2* LAN, 12-24VDC)
Price excludes VAT
728.00€
Sale price
Price excludes VAT
728.00€
Regular price
Total with VAT (23%): 895.44€
Shipping calculated at checkout.
IEC-3702-1135G7
Mini Box PC with 11th Generation Intel Core i5-1135G7
- Intel® Core i5-1135G7 with Iris® Xe Graphics
- Dual DDR4 SODIMM up to 64GB
- 2x HDMI 2.0b, 1x DP1.4 via USB Type-C
- 1x M.2 M-key (SATA / PCIe 4.0 x4) with NVMe support
- 1x 2.5 GbE RJ45, 1x GbE RJ45
- 4x USB3.2 Type-A, 1x USB Type-C
- 1x RS-232, 1x 2-in-1 audio-out / MIC jack
- 12V~24V DC-in
- Operating temperature: 0~50°C
System
| CPU | Intel soldered onboard® 11th Generation Core i5-1135G7 processor (Tiger Lake-UP3) |
|---|---|
| Memory | 2 x 260-pin DDR4 SO-DIMM sockets, supporting 3200MHz SDRAM up to 64GB |
| Graphics | Integrated Intel® Iris® Xe / UHD Graphics (depends on CPU SKU) |
| LAN chipset | 1 x Intel GbE controller, 1 x Intel 2.5GbE controller |
I/O
| Serial port | 1 x DB-9 male connector for RS-232 |
|---|---|
| USB Port | 4 x USB 3.2 Type-A ports, 1 USB 3.2 Type-C |
| LAN | 1 x RJ-45 port for GbE, 1 x RJ-45 port for 2.5GbE |
| Video Port | 2 x HDMI with maximum resolution up to 4096*2160@60Hz 1 x DisplayPort over USB-C port with maximum resolution up to 4096*2160@60Hz |
| Audio | 1 x phone jack connector for Line-Out + MIC |
Storage
| Storage | 1 x M.2 2280 M-Key slot for SATA / PCIex4 NVMe |
|---|
Environmental
| Operating Temp. | 0 ~ 50°C ( 32 ~ 122°F), ambient with airflow |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 60°C (non-condensing) |
| Vibration | 1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operating |
| Shock | Non-operating: 10G |
Qualification
| Certification | CE, FCC |
|---|
Power Requirement
| Power input | DC 12-24V input |
|---|
Mechanical
| Construction | Aluminum alloy |
|---|---|
| Weight | 400g |
| Dimensions (W x D x H) | 115.4 x 107.6 x 37 mm (4.55" x 4.24" x 1.46") |
OS Support
| System | Windows 10 Linux: Ubuntu |
|---|
Ordering Information
| IEC-3702-1135G7 | Intel® Core i5-1135G7 Processor, 8GB SDRAM, 128GB M.2 SSD |
|---|
