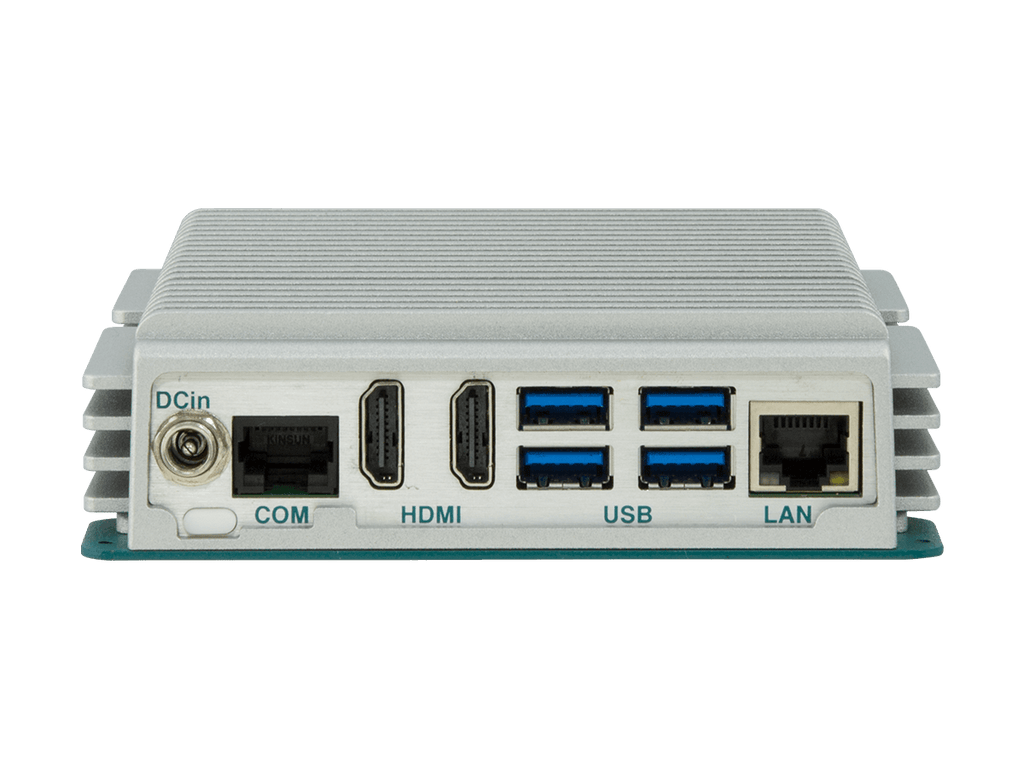

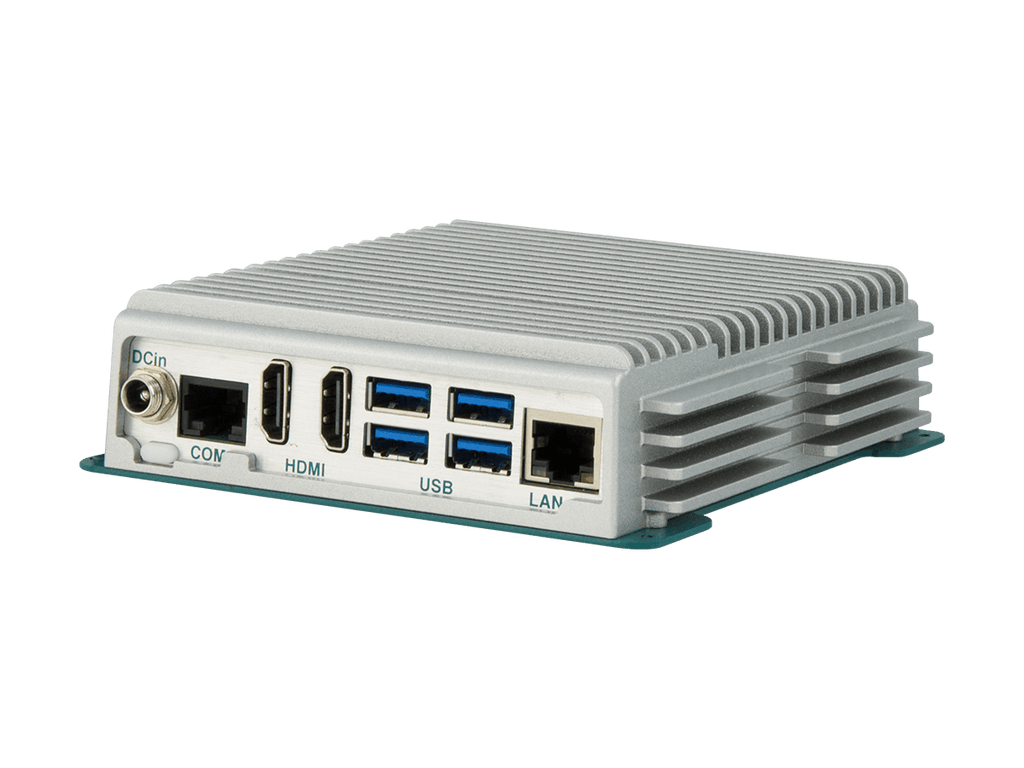

Arbor IEC-3904 (Intel® Core i5-1145G7E, 2 HDMI, GLAN, 24VDC)
Price excludes VAT
1,070.00€
Sale price
Price excludes VAT
1,070.00€
Regular price
Total with VAT (23%): 1,316.10€
Shipping calculated at checkout.
IEC-3904-1145G7E
Digital signage player with Intel® Tiger Lake i7/i5/i3/ Celeron processors
- 11th-generation Intel® Core Tiger Lake i5-1145G7E processor
- Dual HDMI
- Intel vPro & AMT
- 1 x COM, 4 x USB3.0, 1 x GbE port
- Supports Intel® vPro & AMT
- Wide operating temperature range: -20 ~70°C
System
| CPU | Intel soldered onboard® i7-1185G7E 1.8GHz (Base)/ 4.4GHz (Turbo); i5-1145G7E 1.5GHz (Base)/ 4.1GHz (Turbo); i3-1115G4E 2.2GHz (Base)/ 3.9GHz (Turbo); Celeron 6305UE 1.8GHz Processor |
|---|---|
| Memory | 2 x DDR4 SO-DIMM sockets |
| LAN Chipset | 1 x Intel® i219LM PCIe GbE PHY, with vPro & AMT support (i7 and i5 CPU only) |
| Graphics | Integrated Intel® Xe / UHD Graphics (depends on CPU SKU) |
| Watchdog Timer | 1~255 reset levels |
I/O Interface
| USB Port | 4 x USB 3.0 ports |
|---|---|
| LAN | 1 x RJ-45 port for GbE |
| Serial Port | 1 x RS-232 port with RJ-45 connector |
| Video Port | 2 x HDMI video outputs, supporting 4K/60Hz simultaneously on both HDMI ports |
Environmental
| Operating Temp. | -20 ~ 70°C (-4 ~ 158°F), with ambient airflow |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) |
| Vibration | 1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operating |
| Shock | Operating: 10G (11ms); non-operating: 20G |
OS support
| System | Windows 10 IoT / Linux |
|---|
Storage
| Type | M.2 M-key 2280 socket |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power Requirement
| Power input | DC 24V input |
|---|---|
| Power Consumption | 1.83A @ 24V |
Mechanical
| Construction | Aluminum alloy |
|---|---|
| Mounting | Wall-mount |
| Weight | 0.73 Kg (1.61 lb) |
| Dimensions (W x H x D) | 130 x 35 x 124 mm (5.12” x 1.37” x 4.88”) |
Ordering Information
| IEC-3904-1145G7E | Digital Signage Player with Intel® Core i5-1145G7E, with 2xHDMI, 60W power adapter, 8GB RAM and 120G SSD |
|---|
