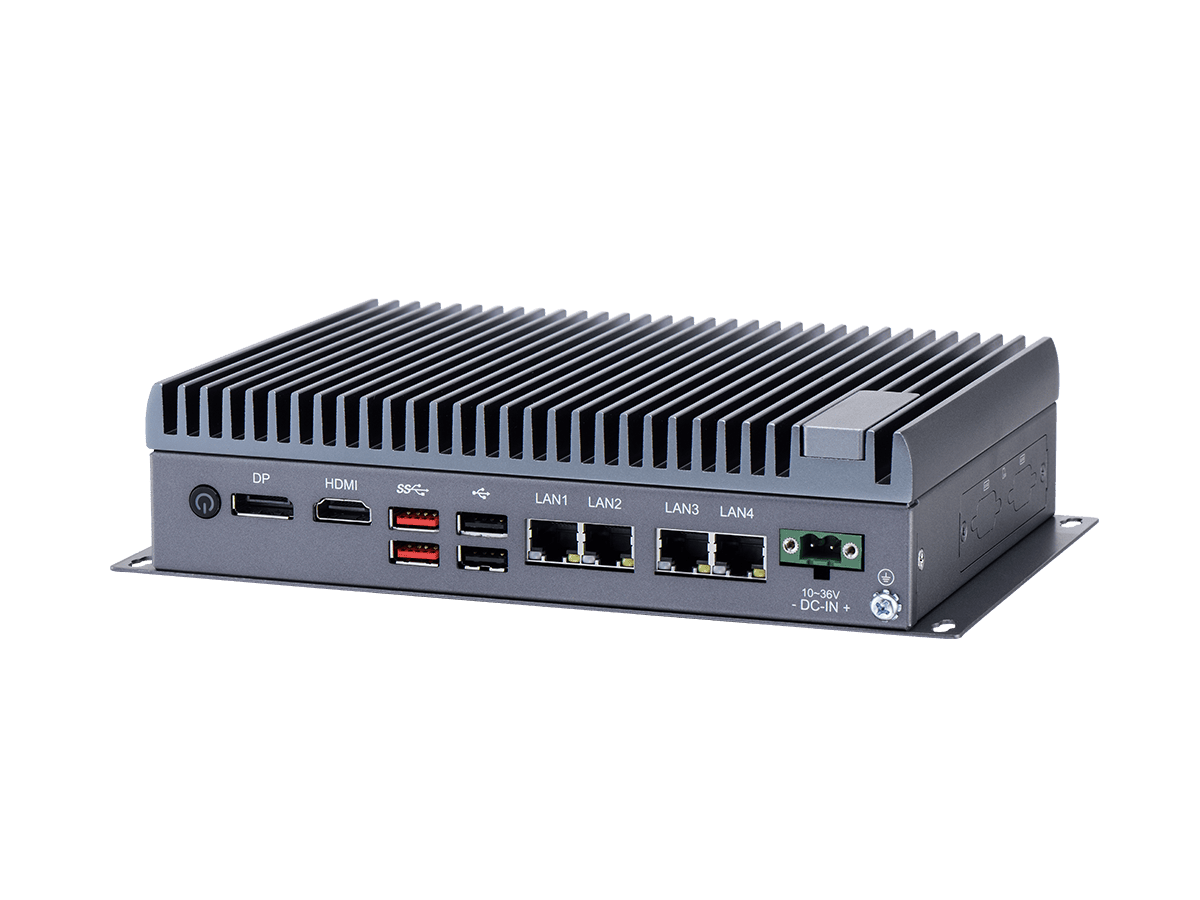

Arbor SB-244-MTLU (Intel® Core™ Ultra 7/5, 48GB DDR5, 4x LAN, 10-36VDC)
Price on request
SB-244-MTLU
Fanless industrial Box PC with Intel® Core™ Ultra Meteor Lake U-series processors
- Intel® Core™ Ultra 7 / 5 processors (Meteor Lake U series), delivering up to 22 TOPS (INT8) AI performance
- 1x DDR5 5600MHz SO-DIMM socket, up to 48GB

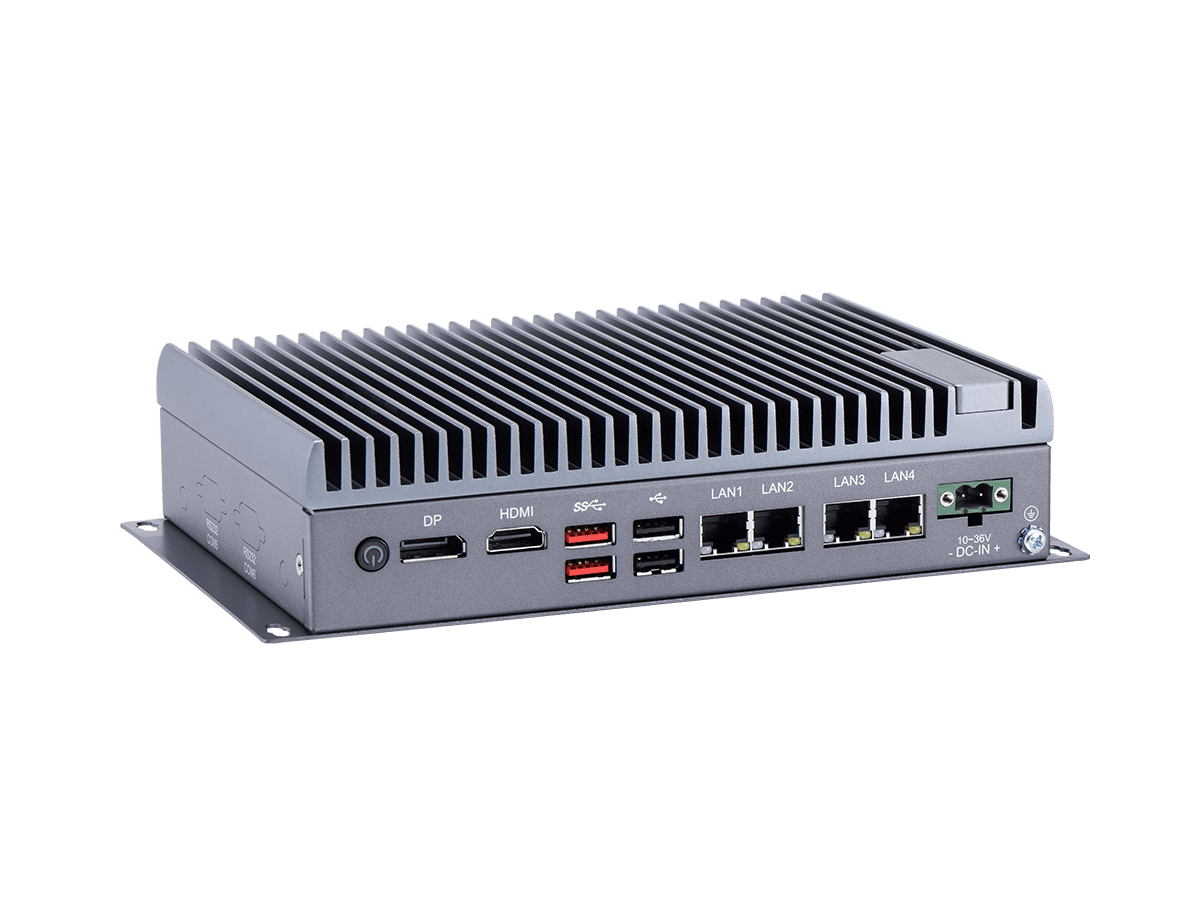

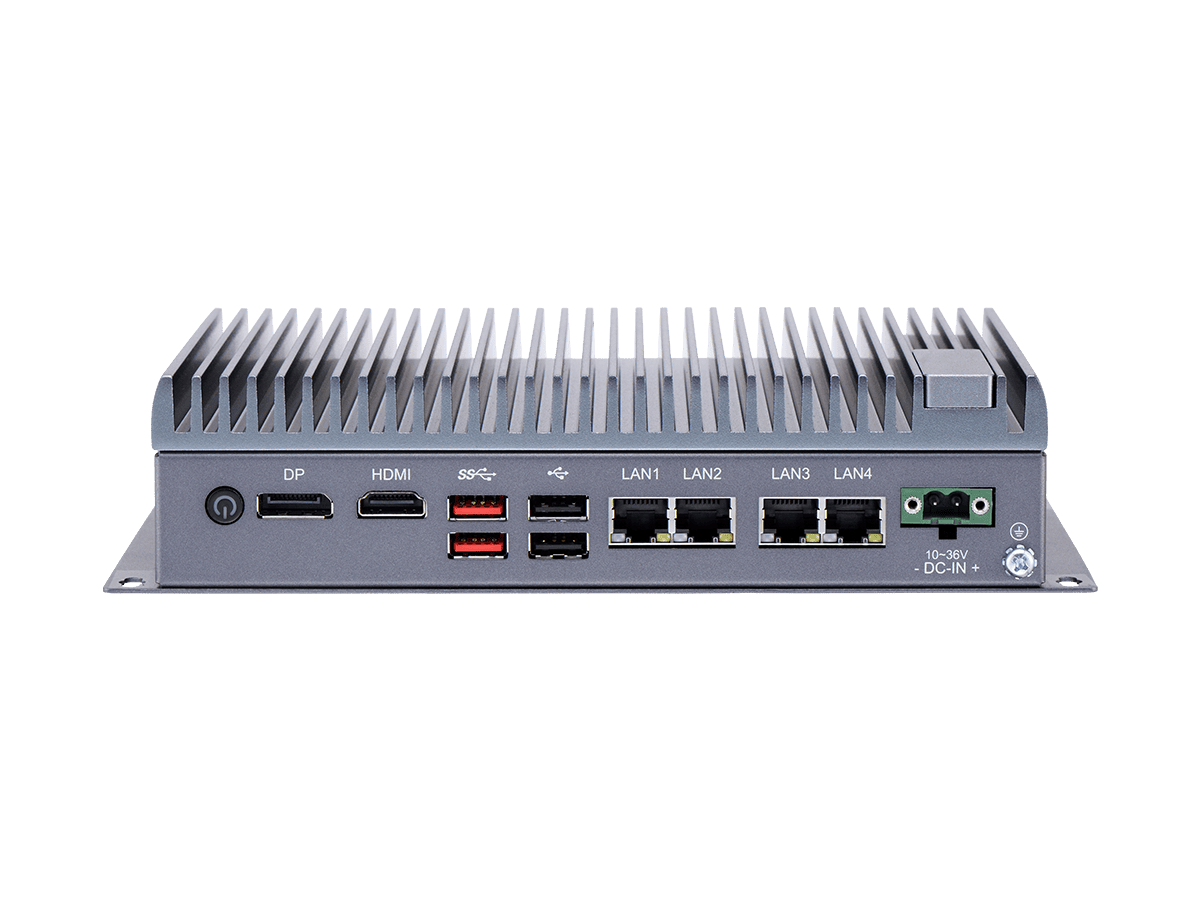

- 4x Gigabit Ethernet LAN ports
- DisplayPort 1.4a and HDMI 2.1 TMDS outputs, supporting resolutions up to 8K and 4K
- 6x USB ports: 2x USB 3.2 Gen 2 and 4x USB 2.0

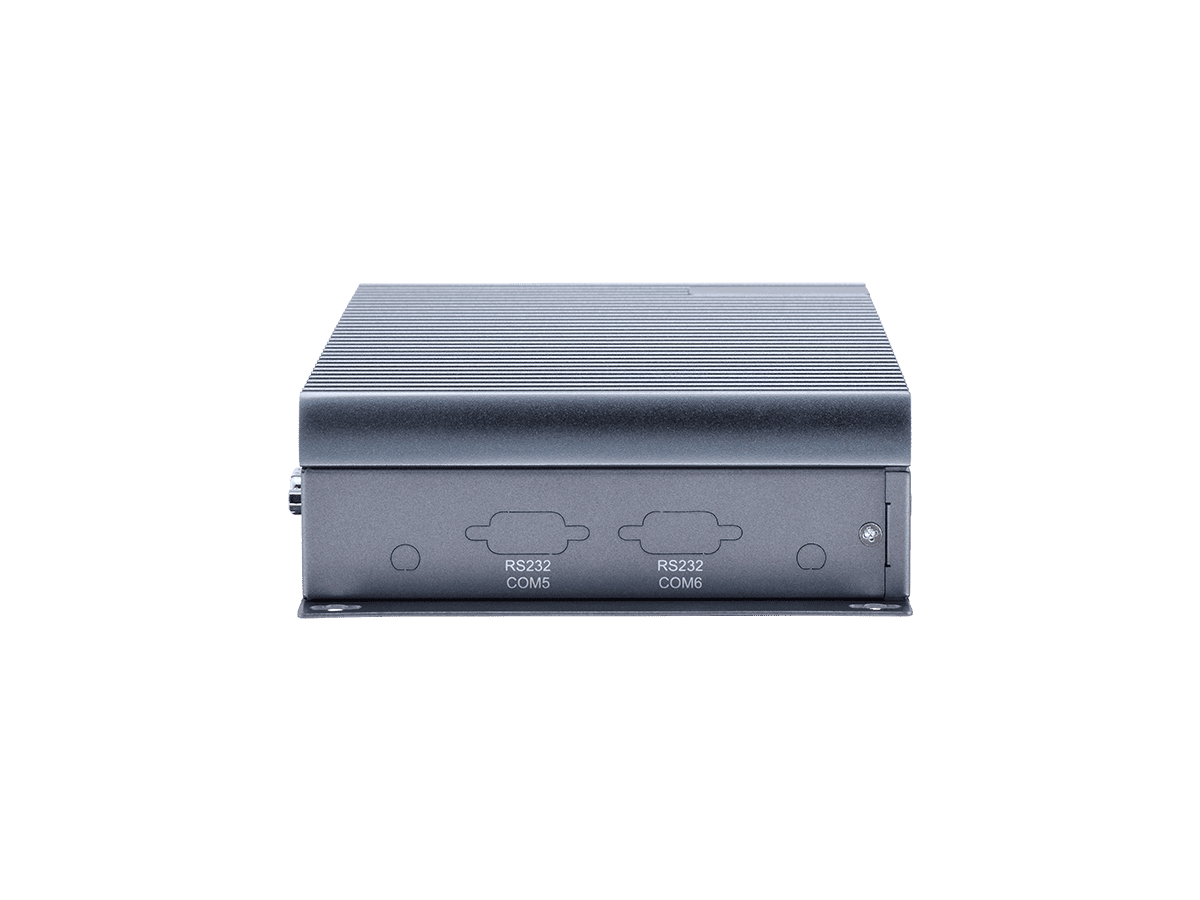

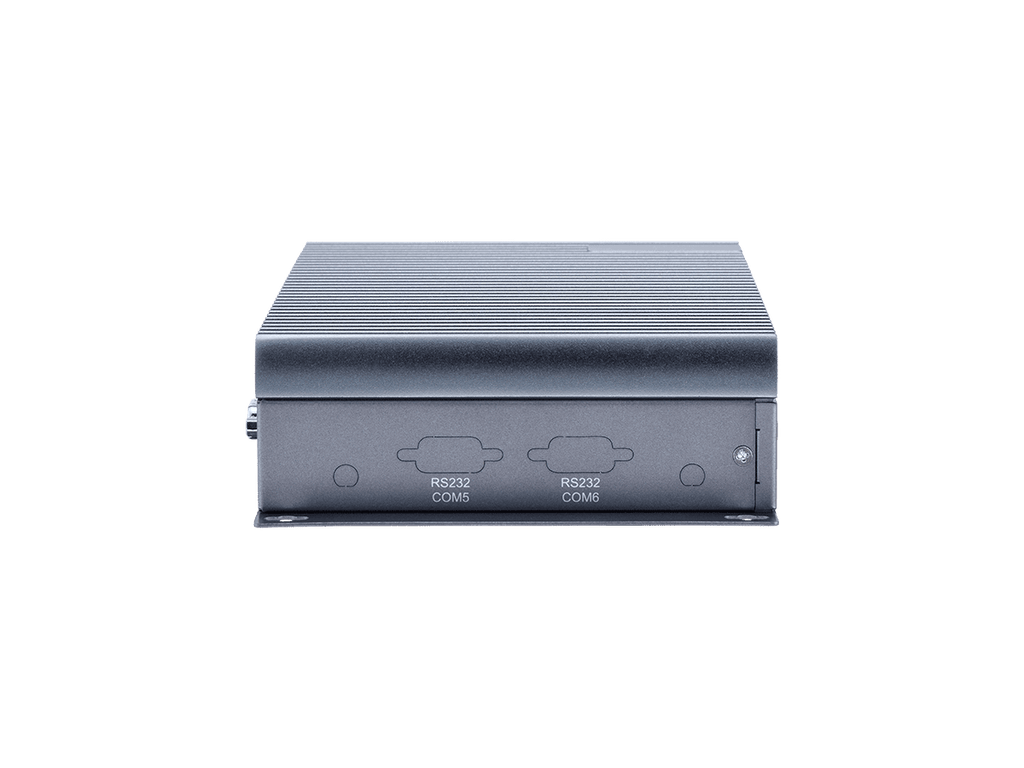

- 4x RS-232/422/485 ports, expandable up to 6 serial ports
- M.2 SATA 2242, M.2 NVMe 2280 and 2.5-inch SATA bay with RAID 0/1 support
- Mini PCIe, M.2 E-Key and Nano SIM expansion
- Intel® vPro Essentials and dedicated TPM 2.0 support
- 10–36 VDC power input with overvoltage and reverse-polarity protection
- Compact fanless design for wall, DIN-rail or VESA mounting
- -20°C to 60°C operating temperature
- Supports Windows 10, Windows 11 and Ubuntu 24.04
System
| CPU | Intel® Core™ Ultra 7-155U or Intel® Core™ Ultra 5-125U (Meteor Lake U series) |
|---|---|
| Memory | 1 x 262-pin DDR5 5600MHz SO-DIMM socket, up to 48GB |
| Graphics | Integrated Intel® Graphics |
| LAN | 1 x Intel® I219-LM GbE PHY and 3 x Intel® I210-AT GbE |
| TPM | Nuvoton NPCT760AABYX TPM 2.0 |
External I/O

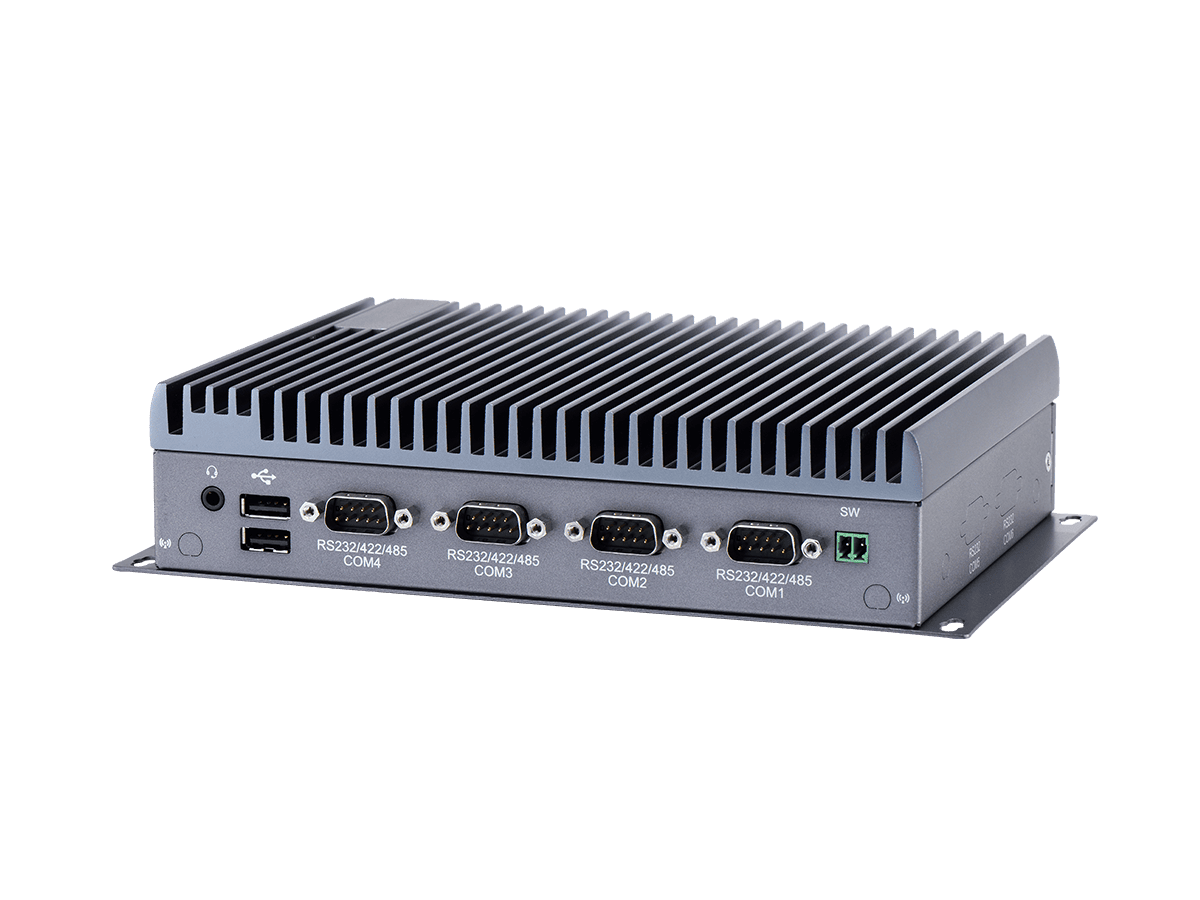

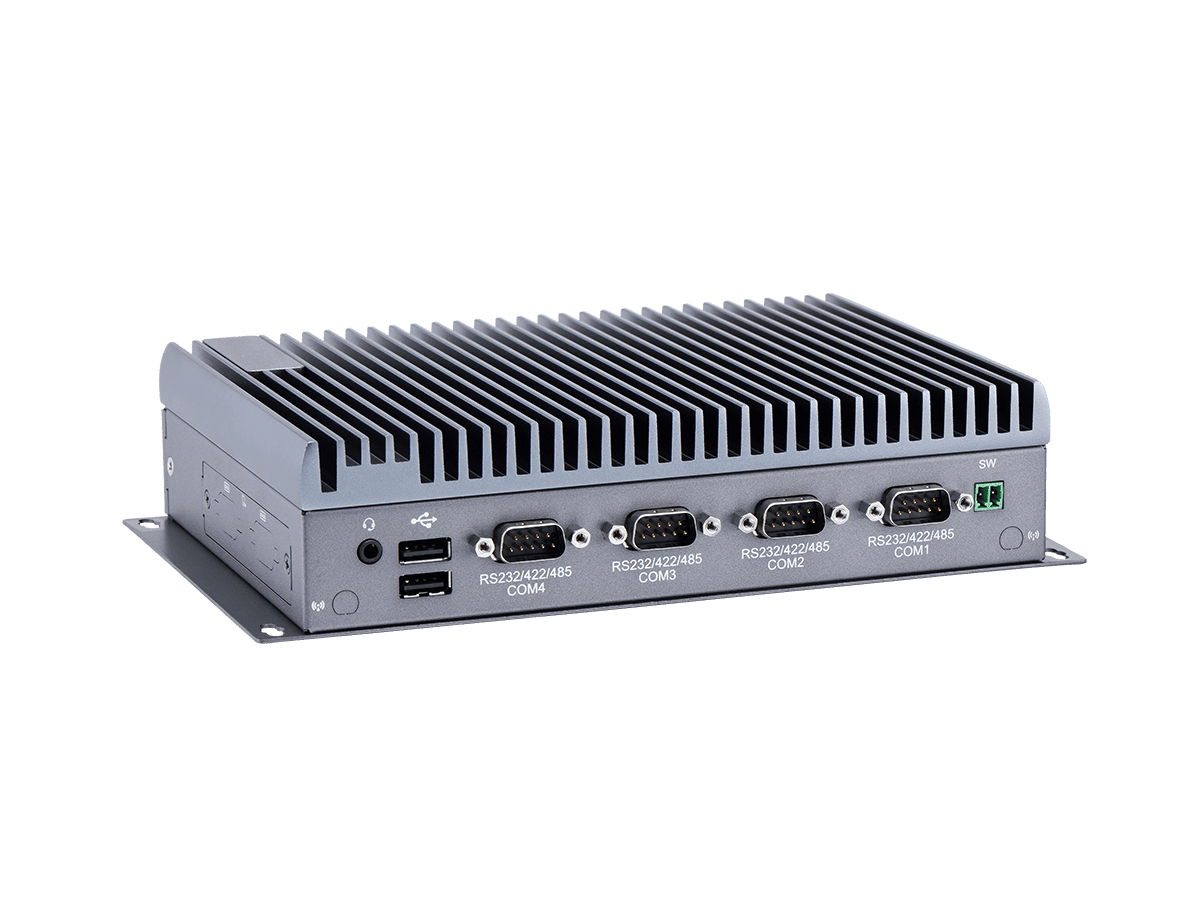

| Serial ports | 4 x RS-232/422/485 (RS-232 by default), expandable up to 6 |
|---|---|
| USB | 2 x USB 3.2 Gen 2 and 4 x USB 2.0 |
| LAN | 4 x RJ45 Gigabit Ethernet |
| Video | 1 x HDMI 2.1 TMDS up to 4096 × 2304 @ 60Hz; 1 x DisplayPort 1.4a up to 7680 × 4320 @ 60Hz |
| Audio | 1 x Line-out and Mic-in |
Expansion and storage
| Expansion | 1 x Mini PCIe; 1 x M.2 E-Key 2230; 1 x Nano SIM; 8-bit programmable GPIO |
|---|---|
| Storage | 1 x M.2 M-Key 2242 SATA; 1 x M.2 M-Key 2280 NVMe; 1 x 2.5-inch SATA bay; RAID 0/1 |
Power
| Input | 10–36 VDC via 2-pin Phoenix connector |
|---|---|
| Protection | Overvoltage and reverse-polarity protection |
Mechanical
| Construction | Aluminium alloy |
|---|---|
| Mounting | Desktop, wall, optional DIN rail or optional 75 × 75 / 100 × 100 mm VESA |
| Dimensions | 200 × 140 × 49.2 mm |
| Weight | 1.8 kg |
Environmental
| Operating temperature | -20°C to 60°C |
|---|---|
| Storage temperature | -40°C to 85°C |
| Humidity | 5% to 95% at 40°C, non-condensing |
| Vibration | 5–500Hz, 2Grms operating |
| Shock | 10G@11ms operating; 30G@11ms non-operating |
| Certifications | CE, FCC |
Operating system
| Support | Windows 10, Windows 11 and Ubuntu 24.04 |
|---|
Ordering information
| SB-244-U7155U | Barebone fanless system with Intel® Core™ Ultra 7-155U |
|---|---|
| SB-244-U5125U | Barebone fanless system with Intel® Core™ Ultra 5-125U |
