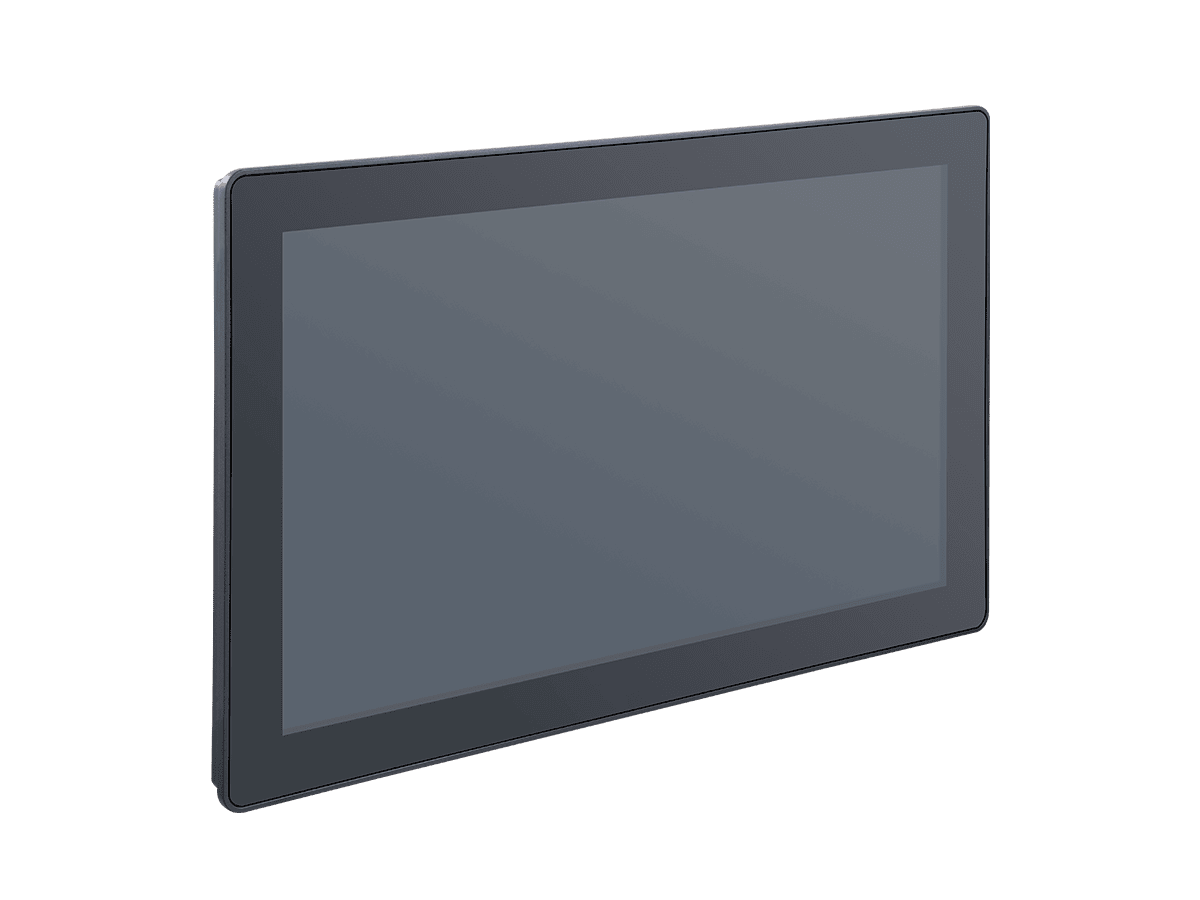

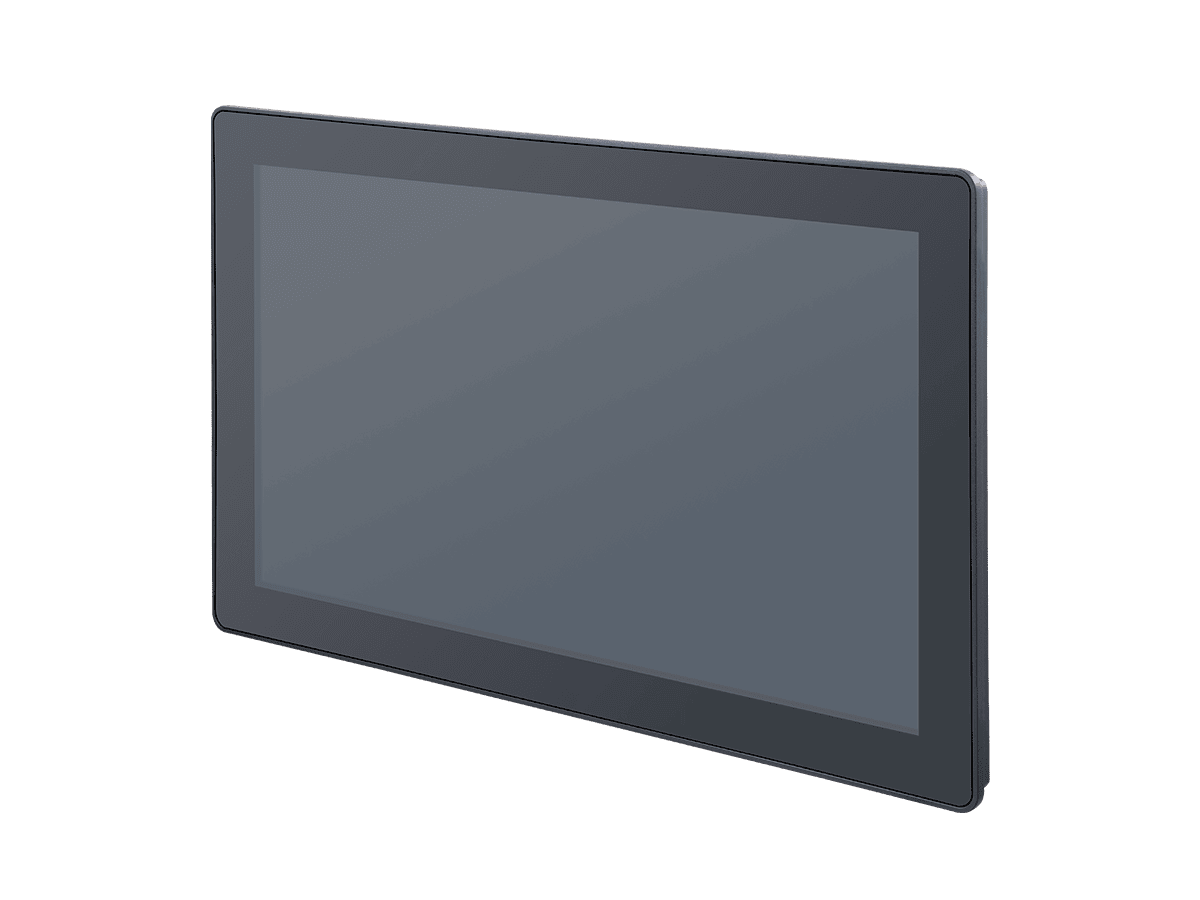

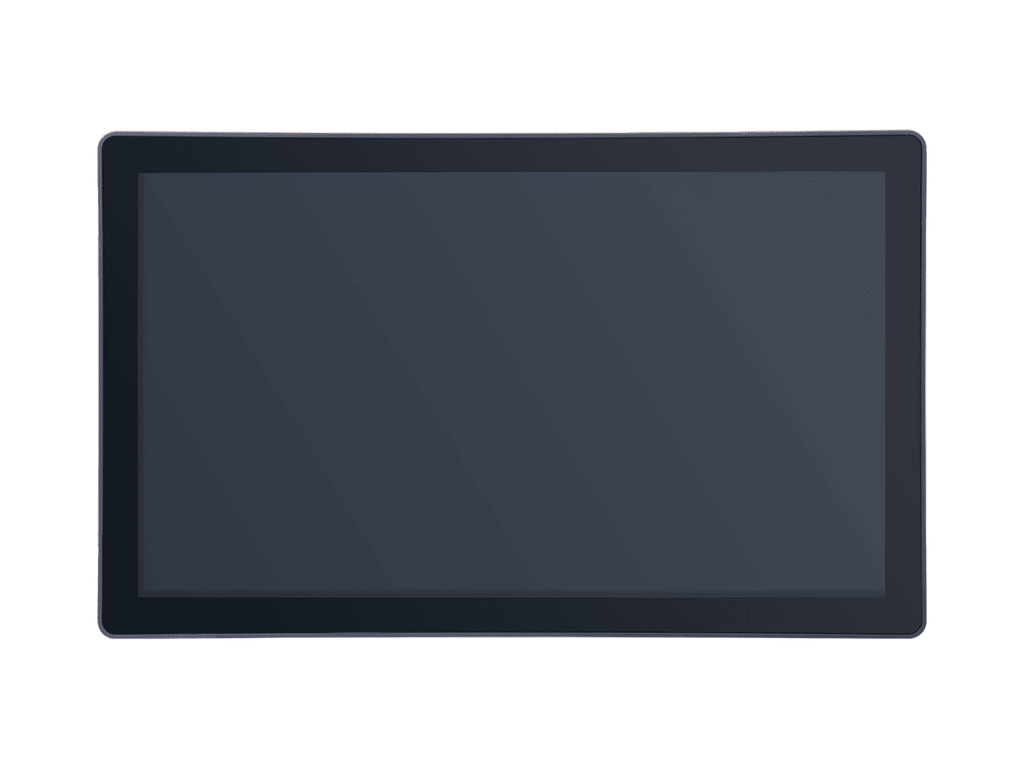

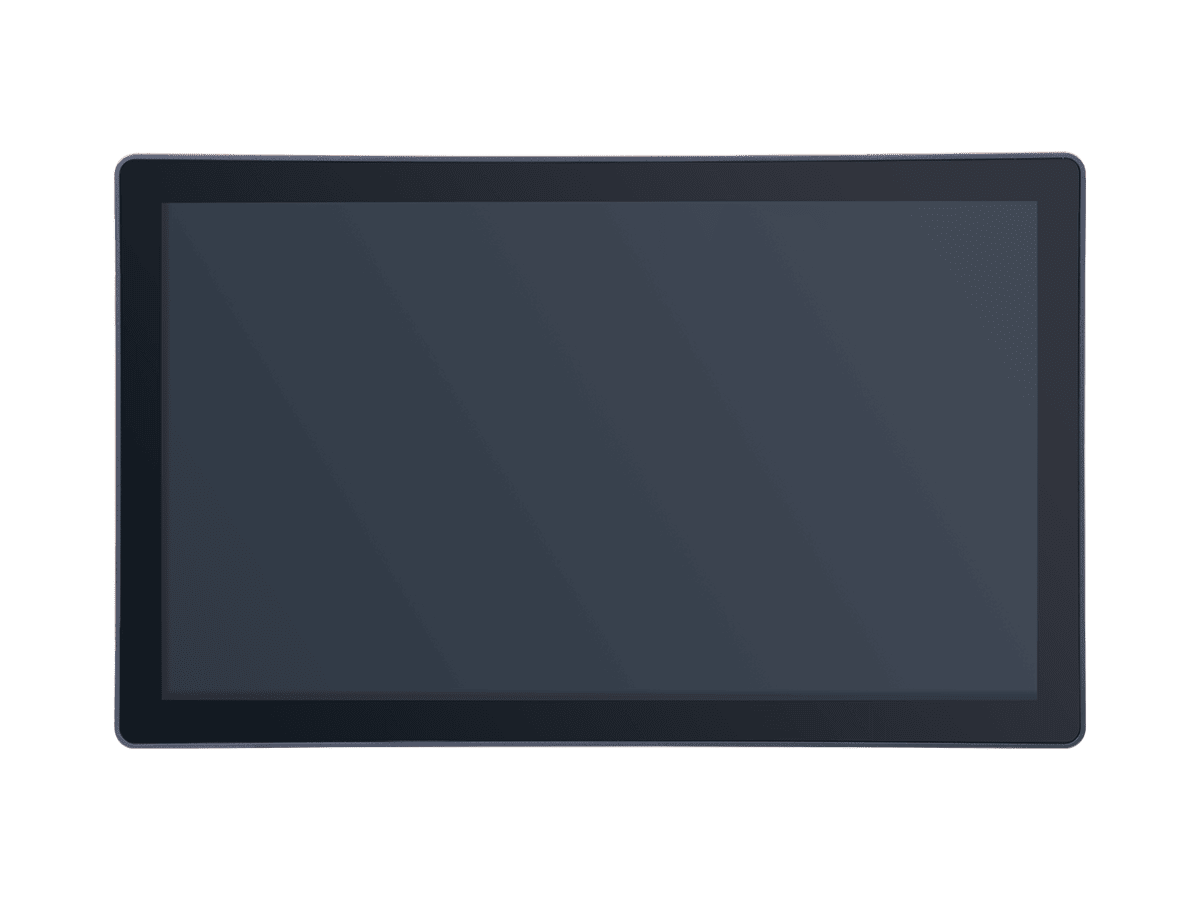

Arbor SP-151C TGLU Series (15.6″ FHD, Intel® Core™ i5/i3, IP66)
Price on request
SP-151C TGLU Series
15.6" fanless industrial Panel PC with 11th Gen Intel® Core™ i5/i3 processors
- 11th Gen Intel® Core™ i5/i3 processors (Tiger Lake-U)
- 15.6" Full HD TFT LCD, 1920 × 1080, 350 nits
- Industrial 10-point projected capacitive touchscreen
- IP66-rated front panel
- 1x DDR4 SO-DIMM 3200 MHz, up to 32 GB
- 1x 2.5GbE LAN and 2x GbE LAN
- 4x USB 3.1, HDMI and 6 serial ports
- M.2 SATA storage and 2.5" SATA HDD/SSD bay
- Mini PCIe, M.2 E-Key and SIM slot expansion
- 10–36 VDC input with overvoltage and reverse-polarity protection
- Remote power on/off and chassis-ground protection
- Panel, wall and VESA 100 × 100 mm mounting
- -10 °C to 50 °C operation
- Windows 10/11 and Ubuntu 22.04
System
| CPU | Intel® Core™ i5-1135G7 (4 cores, 8 threads, 2.4GHz) or Intel® Core™ i3-1115G4 (2 cores, 4 threads, 3.0GHz) |
|---|---|
| Memory | 1 x DDR4 SO-DIMM 3200MHz, up to 32GB |
| Chipset | Integrated in processor |
| Graphics | Intel® Iris® Xe Graphics (i5) / Intel® UHD Graphics (i3) |
| LAN | 1 x Intel® I226-V 2.5GbE and 2 x Intel® I210-AT GbE |
| Watchdog | Programmable watchdog |
LCD display
| Size / type | 15.6″ TFT LCD, 16:9 |
|---|---|
| Resolution | 1920 × 1080 (Full HD) |
| Brightness / contrast | 350 nits / 800:1 |
| Backlight | LED, 50,000 hours |
| Touch | 10-point projected capacitive, 35 million activations |
| Viewing angle | 178° horizontal / 178° vertical |

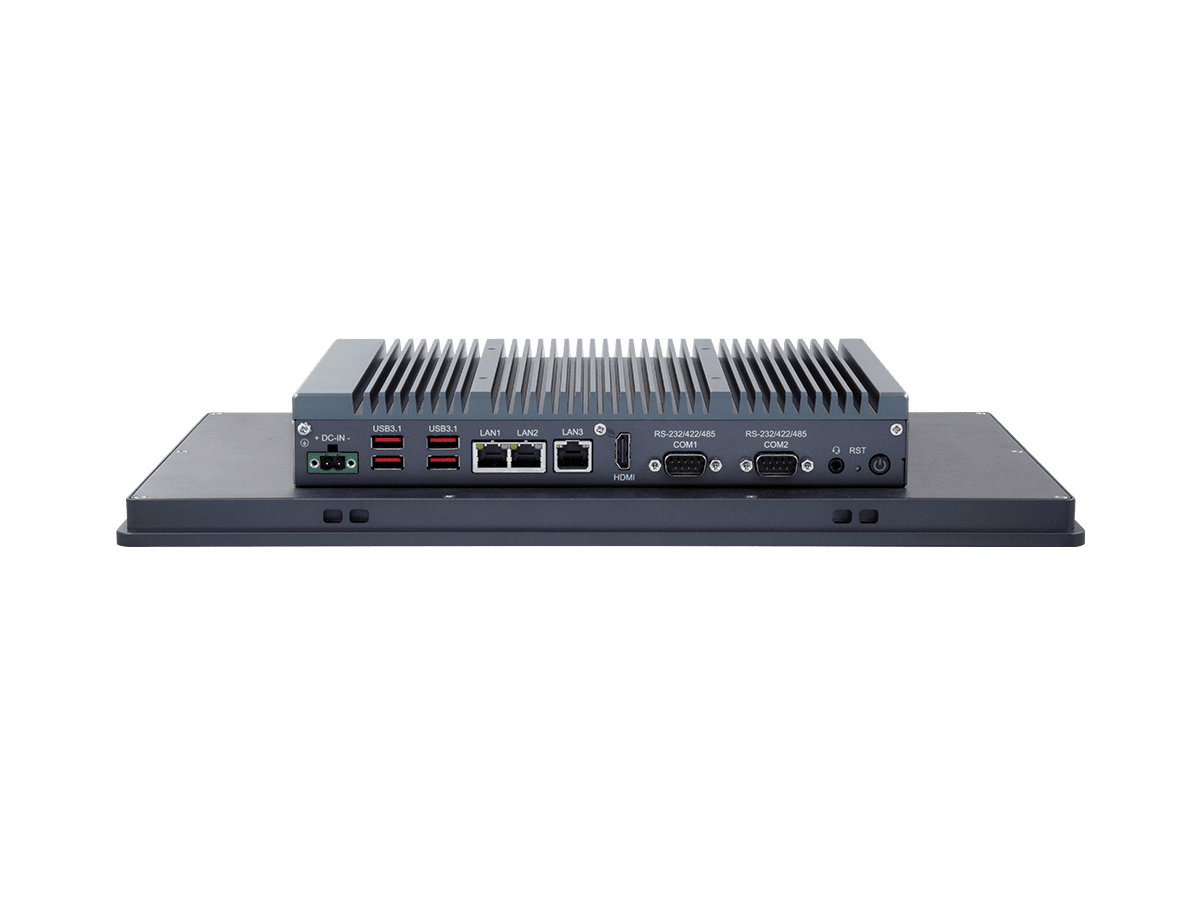

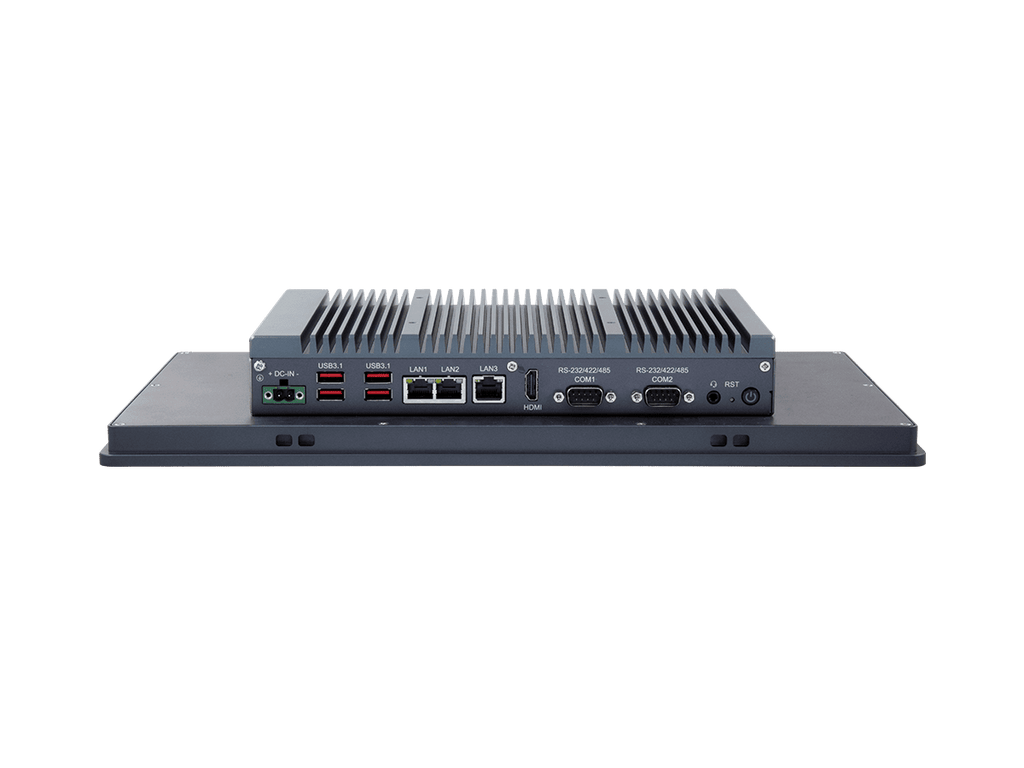

External I/O
| Serial ports | 2 x RS-232/422/485 on DB9; 2 x RS-232/RS-485 and 2 x RS-232 via 12-pin Phoenix connector |
|---|---|
| USB | 4 x USB 3.1 |
| LAN | 1 x RJ45 2.5GbE and 2 x RJ45 GbE |
| Video | 1 x HDMI, up to 4096 × 2160 at 60Hz |
| GPIO | 8-bit GPIO |
| Remote control | Remote power on/off |
Storage and expansion
| Storage | 1 x M.2 M-Key 2242 SATA; 1 x SATA 3.0 for 2.5″ HDD/SSD |
|---|---|
| Expansion | 1 x full-size Mini PCIe; 1 x M.2 E-Key 2230; 1 x SIM slot |
Audio
| Type | Combined line-out/mic-in jack, Realtek ALC888S chipset |
|---|---|
| Speakers | 2 x 3W, 4Ω |
Power
| Input | 10–36 VDC, 2-pin Phoenix connector |
|---|---|
| Protection | Overvoltage, reverse polarity and chassis grounding |
Mechanical
| Construction | Aluminium front panel and heatsink; SECC rear cover |
|---|---|
| Mounting | Panel, wall and VESA 100 × 100 mm |
| Dimensions | 395 × 245.5 × 59 mm |
| Cutout | 387 × 237.5 mm |
| Weight | 4.54 kg |
| Protection | IP66 front panel |
Environmental conditions
| Operating | -10 °C to 50 °C |
|---|---|
| Storage | -40 °C to 70 °C |
| Humidity | 5% to 95% at 40 °C, non-condensing |
| Vibration | 2Grms operating |
| Shock | 10G operating; 30G non-operating |
| Certifications | CE, FCC |
Operating system
| Compatibility | Windows 10, Windows 11 and Ubuntu 22.04 |
|---|
Ordering information
| SP-151C-11135G7 | 15.6″ Panel PC with Intel® Core™ i5-1135G7 at 2.4GHz |
|---|---|
| SP-151C-11115G4 | 15.6″ Panel PC with Intel® Core™ i3-1115G4 at 3.0GHz |
