Sku: D133
Product Type: Carrier Board
Vendor: AVerMedia

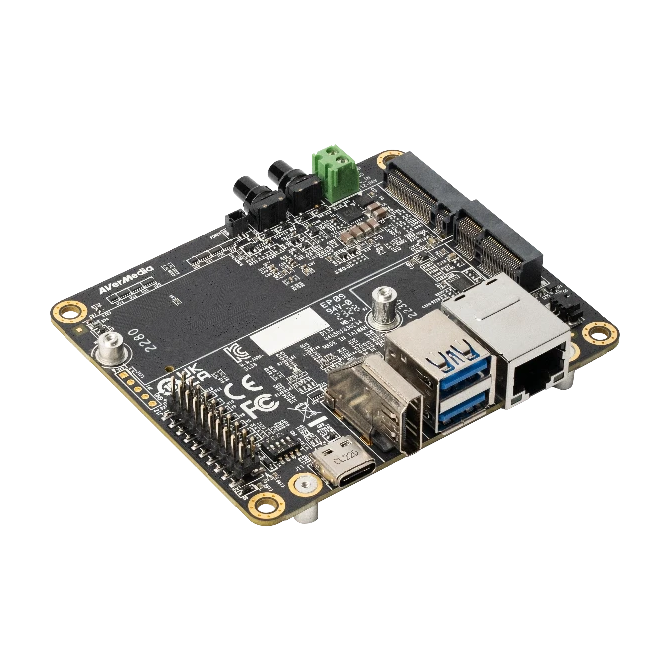

AVerMedia D133

Carrier Board D133 NVIDIA® Jetson™ Orin NX / Orin Nano

  • Modulo NVIDIA® Jetson Orin NX/ Orin Nano

  • 1 x GBE

  • 2 x USB 3.0

  • 2 x slots M.2 para SSD/WiFi

  • 1 x saída HDMI

  • Expansão de 20 pinos

  • Temperatura operacional: -40 ° C ~ 85 ° C (TBD)

  • Dimensão: W: 90mm x L: 76mm x H: 27mm

Vista Rápida

AVerMedia’s D133 Carrier Board support powerful NVIDIA® Jetson Orin NX/ Orin Nano modules. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities

D133 Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA’s JetPackTM SDK.

Key Industries

AVerMedia devices are built with flexibility in mind and are designed for the following verticals.

Smart_Retail

Smart Retail

Gather and deliver the information to streamline decisions and create more value for the customer.

Smart_Camera

Smart Camera

Smart cities rely on smart camera feeds to gain situational awareness and respond to real-time safety and security threats.

Smart_City

Smart City

Smart cities rely on live camera feeds to benefit from the video analysis to improve city operations fora variety of services.

Especificações

Model

D133

Type

Carrier Board

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Orin NX/ Orin Nano module

Networking

1 x GbE RJ-45
1 x M.2. key E 2230 for wifi

Display Output

1 x HDMI output 3840 x 2160 at 60Hz for Orin NX, 30Hz for Orin Nano

Temperature

Operating temperature -40°C~85°C (TBD)
Storage temperature -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs(Internal)

2 x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch

USB

1 x USB 2.0 type C for recovery
2 x USB 3.2 Type-A

Storage

1x M.2. key M 2280 for NVMe

Expansion Header

20 pins: 2x I2C, 1x UART, 9x GPIOs

Input Power

3.5mm Screw Terminal; 12V/5A, 9V~24V is recommended.

Power Cord

US/JP/EU/UK/TW/AU/CN (optional)

Thermal solution

Fan solution (optional)

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

W: 90mm x L: 76mm (TBD)
Weight: 70g (TBD)

Certifications

CE, FCC, KC(TBA)

Package

1x D133 Carrier board
DC IN jack cable
screws



Optional Accessories

Specs

MIPI Camera

For 22 pin MIPI connector:
1.raspberry pi camera v2/ v3
2.Manufacturer: APPRO.PHO: B-04: IMX179 (8M) MIPI, 1080P (30fps)

*All specifications are subject to change without prior notice.
