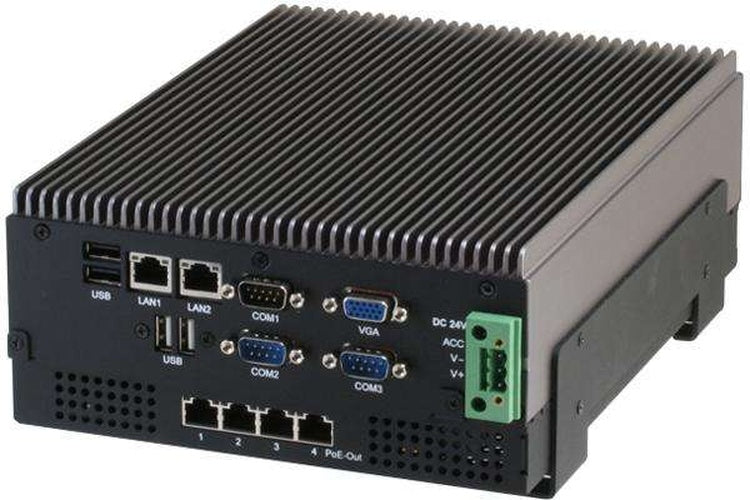

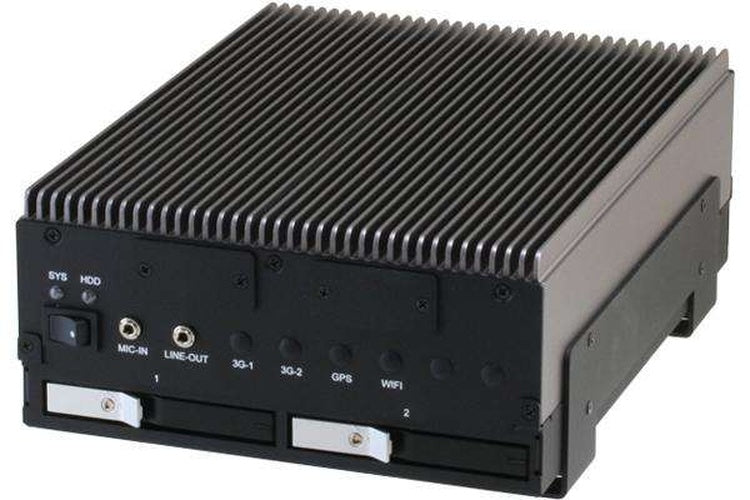

AAEON introduces the latest addition to the BOXER series, the BOXER-6301VS embedded box PC. Equipped with the Intel® Core™ i5-4402E processor, the system is certified to E-mark/ISO-7637 vehicle power standards, making it ideal for in-vehicle applications.
In addition to offering a wide range of I/O ports for various in-vehicle applications, the PC features a reliable fanless design and provides wireless communication capabilities for users who need to establish a network connection in any location.
The BOXER-6301VS is a high-performance standalone PC designed for extended operation and high reliability. It can replace traditional solutions and serve as a mainstream box PC across diverse markets.
Features
- Intel® Core™ i5-4402E, 1.6 GHz processor
- Intel® QM87 chipset
- Easily accessible 2.5” HDD x 2, Hot-Swappable and Hot-Pluggable
- 802.3af PoE x 4
- Wide DC input range, default 24V battery
- OVP/UVP/reverse-polarity protection, On/Off delay and battery protection
- Load Dump protection
- Fanless operation
- Mini-PCIe x 3 and SIM x 3
- Certified to E-Mark E13 and ISO 7637
Specifications
| SYSTEM | |
| CPU | Intel® Core™ i5-4402E 1.6 GHz |
| CHIPSET | Intel® QM87 |
| SYSTEM MEMORY | DDR3L 1333/1600MHz SODIMM x 1, up to 8 GB |
| DISPLAY INTERFACE | VGA |
| STORAGE DEVICE | CFast™, HDD/SSD |
| ETHERNET | Intel® I211, 10/100/1000Base-TX x 1 Intel® I217LM, 10/100/1000Base-TX x 1 |
| I/O | RS-232/422/485 x 1 RS-232 x 2 USB 3.0 x 2 USB 2.0 x 2 VGA x 1 LAN x 2 Mic-in x 1 Line-out x 1 CFast™ slot x 1 PoE x 4 (802.3 af) Antenna hole x 6 Removable 2.5” HDD kit x 2 Power switch x 1 Power input |
| EXPANSION | Full-size Mini-Card x 3 |
| INDICATORS | Power LED, HDD activity LED |
| OS SUPPORT | Windows® 8.1, Windows® 7, Linux Fedora |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 - 30V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wall mount |
| DIMENSIONS (W X H X D) | 10" x 7.5" x 3.5" (255mm x 190mm x 88mm) |
| GROSS WEIGHT | 10.8 lb (4.9 kg) |
| NET WEIGHT | 8.6 lb (3.9 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 131°F (-20°C ~ 55°C) (according to IEC60068-2, with 0.5m/s airflow) |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – CFast™/SSD 1 Grms/ 5~ 500Hz/ operation – HDD |
| CERTIFICATION | CE/FCC class A, E13, ISO7637 |
Packing List
- 3-pin Phoenix connector x 1
- Screw package x 1
- Wall-mount bracket x 2
- Product CD
- BOXER-6301VS
Optional Accessories
| 978966660G | GPS antenna, SMA(M), black, 3M |
| 9761635600 | 3G & GPS module |
| 9761635601 | WiFi 802.11 b/g/n module |
