Monitor 10.2 'CTF1020-ML

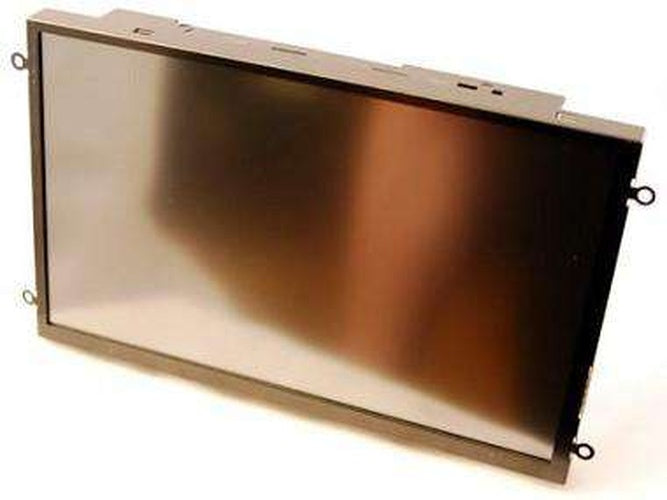

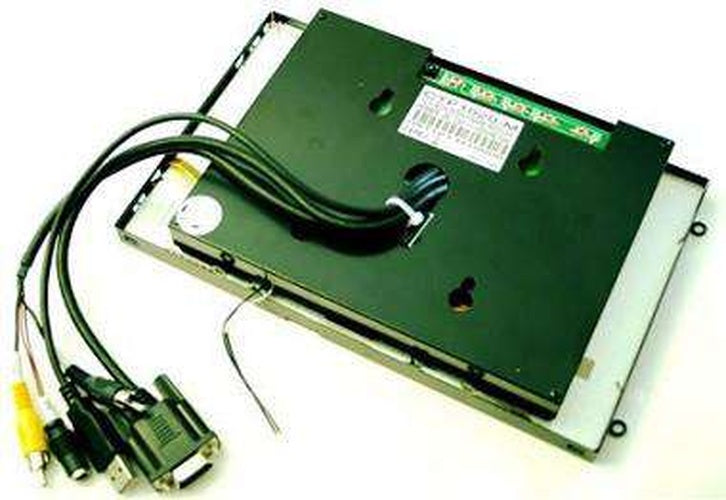

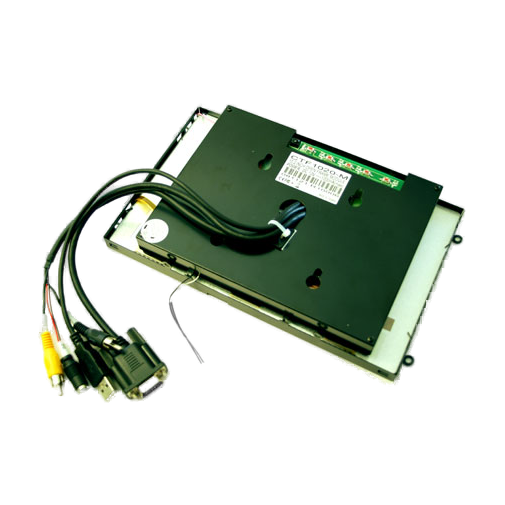

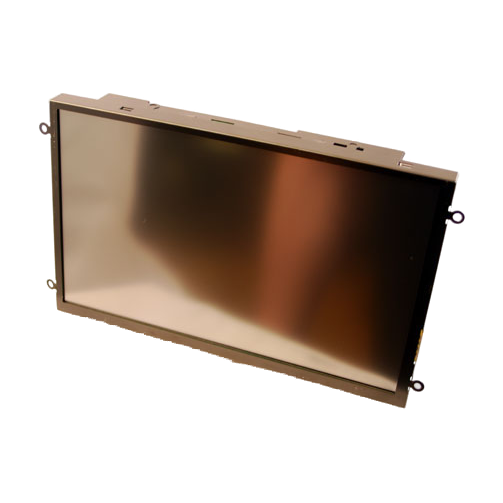

The 10.2" Open-Frame TFT monitor features a robust metal frame for stable installation. The individual modules (mainboard, touchscreen controller, power inverter and button panel) can be mounted outside the rear of the monitor, allowing them to be positioned elsewhere. This makes the connection cables easier to install and reduces the display thickness.
Possible additional options (from 20 units):
- Speakers
- Different cable lengths
- Other monitor models / sizes
- RS232 touchscreen instead of USB
- Other connector types
- [...] Pergunte-nos!
Additional information:
The touchscreen functionality allows you to control your PC easily. The bright VGA display ensures maximum readability and exceptional clarity.
An AC adapter for domestic use and a car cigarette lighter adapter are included.
The CTF-1020-M can be used with any PC / MAC equipped with VGA and USB ports.
Includes driver CD, compatible with:
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
Specifications:
| Screen size | 10.2" digital |
| Aspect ratio | 16:9 wide TFT screen |
| Dot resolution | 2400x480= 1,152,000 dots |
| Physical resolution | 800x480 |
| Supported resolutions | 640x480-1920x1080 |
| Colour configuration | RGB stripe |
| Brightness | 400 nits |
| Contrast | 400:1 |
| Operating temperature | -30°C to 85°C |
| Power input | DC 9-30V |
| Power consumption | Max. 11W |
| Video system | 2x video inputs (PAL/NTSC) 1x VGA input |
| Dimensions | 237.6 x 148.5 x 35.7 mm Display: 223.9 x 135.11 mm |
| Video input signal | 1.0Vp-p, composite video |
| Features | Full-function OSD control (English) Auto-Dimmer Auto Power On/Off |
| Included items: | - 10.2" VGA Open-Frame touchscreen TFT with video support |
| - Power adapter for the EU 230V | |
| - Cigarette lighter adapter | |
| - Touchscreen driver CD | |
| - Manual |
