Monitor 10.4' CTF1040-CTM
Price excludes VAT
545.00€
Sale price
Price excludes VAT
545.00€
Regular price
Total with VAT (23%): 670.35€
Shipping calculated at checkout.

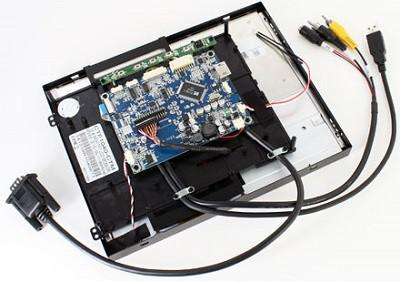

The new 10.4" Open-Frame monitor with a capacitive Multi-Touch touchscreen provides a resolution of 1024x768 and a contrast ratio of 1200:01. The robust metal frame enables stable installation. The individual modules (board, touchscreen controller, power inverter and button panel) can be mounted externally at the rear and positioned elsewhere. This makes the connecting cables easier to install and reduces the overall display thickness. With Auto Power-On.
Note: this Open-Frame TFT monitor is intended primarily for the professional market. End users should only handle this electronic equipment if they have the appropriate experience.
Features:
- Open-Frame
- VGA + HDMI
- 1024x768
- 1200: 1
- Auto Power On
Additional options (for orders of 20 units or more):
- Speakers
- Different cable lengths
- Other monitor models and sizes
- RS232 touchscreen instead of USB
- Other connector types
- [...] Contact us!
Includes an AC adapter for domestic use and a cigarette lighter adapter for in-vehicle use.
The CTF1040-CTM can be used with any PC / MAC equipped with VGA and a USB port.
- Speakers
- Different cable lengths
- Other monitor models and sizes
- RS232 touchscreen instead of USB
- Other connector types
- [...] Contact us!
Additional information:
The touchscreen functionality allows you to control your PC easily. The bright VGA display ensures maximum readability and exceptional clarity.
The touchscreen functionality allows you to control your PC easily. The bright VGA display ensures maximum readability and exceptional clarity.
Includes an AC adapter for domestic use and a cigarette lighter adapter for in-vehicle use.
The CTF1040-CTM can be used with any PC / MAC equipped with VGA and a USB port.
Driver CD included, compatible with:
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
Specifications:
| Screen size | 10.2" digital |
| Aspect ratio | 16:9 widescreen TFT display |
| Dot resolution | 2400x480= 1,152,000 dots |
| Physical Resolution | 800x480 |
| Supported resolutions | 640x480-1920x1080 |
| Colour configuration | RGB stripe |
| Brightness | 400 nits |
| Contrast | 400:1 |
| Operating temperature | -30°C to 85°C |
| Power input | DC 9-30V |
| Power consumption | Max. 11W |
| Video system | 2x video inputs (PAL/NTSC) 1x VGA input |
| Dimensions | 237.6 x 148.5 x 35.7 mm Display: 223.9 x 135.11 mm |
| Video input signal | 1.0Vp-p, composite video |
| Features | Full-function OSD control (English) Auto-Dimmer Auto Power On/Off |
| Package contents | - 10.2" VGA Open-Frame touchscreen TFT with video support |
| - Power adapter for EU 230V | |
| - Cigarette lighter adapter | |
| - Touchscreen driver CD | |
| - Manual |
