Monitor 7' CTF700-HM VGA
Price excludes VAT
315.88€
Sale price
Price excludes VAT
315.88€
Regular price
Total with VAT (23%): 388.53€
Shipping calculated at checkout.

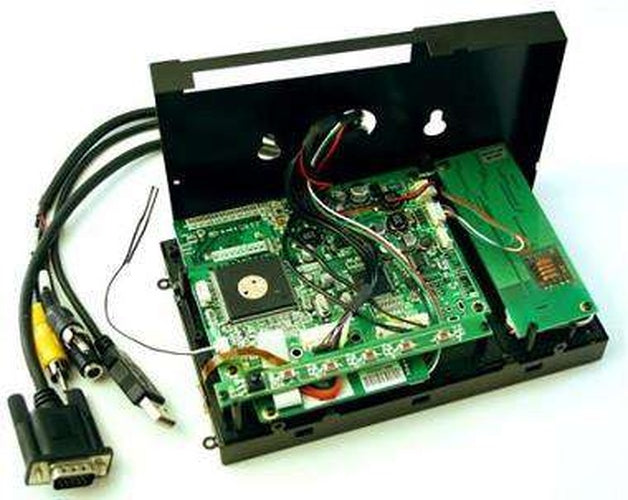

7" CTF700-HM TFT monitor Open-Frame, with 800nits brightness and TMR-Technology, designed with a robust metal frame that enables stable installation. The individual modules (motherboard, touchscreen controller, power inverter and button frame) can be mounted away from the rear, allowing them to be positioned elsewhere. This makes it easier to install the connection cables and reduces the display thickness.
LED backlight technology optimizes color saturation, providing a bright, high-definition display. The range of displayed color nuances is increased by 45% with the new technology. Conventional LCDs use CCFL backlighting, which can display approx. 72% of the standard NTSC (National Television Systems Committee) color gamut. LED backlight technology displays approx. 104% of the NTSC gamut. This produces a highly realistic image.
Possible additional options (from 20 units):
- Speakers
- Different cable lengths
- Other monitor models / sizes
- RS232 touchscreen instead of USB
- Other connector types
- [...] Ask us!
Additional information:
The touchscreen functionality allows you to control your PC easily. The bright VGA display ensures maximum readability and exceptional sharpness.
An AC adapter for domestic use and a car cigarette-lighter adapter are included.
The CTF700-HM can be used with any PC / MAC equipped with VGA and USB ports.
Includes a driver CD, compatible with:
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
Specifications:
| Screen size | 7" digital |
| Aspect ratio | 16:9 wide TFT screen |
| Dot resolution | 2400x480= 1,152,000 dots |
| Physical resolution | 800x480 |
| Supported resolutions | 640x480-1024x768 |
| Color configuration | RGB stripe |
| Brightness | 800 nits |
| Contrast | 500:1 |
| Operating temperature | -30°C to 80°C |
| Power input | DC 9-30V |
| Power consumption | max. 8W |
| Video system | 2x video inputs (PAL/NTSC) 1x VGA input |
| Dimensions | 167.9 x 107.9 x 32.6 mm Display: 154 x 93 mm |
| Video input signal | 1.0Vp-p, composite video |
| Features | Full-function OSD control (English) Auto Power On/Off Autodimmer |
| Included: | - 7" VGA Open-Frame touchscreen TFT with video support |
| - Power adapter for EU 230V | |
| - Cigarette lighter adapter | |
| - Touchscreen driver CD | |
| - Manual |
