Monitor 8' CTF800-WML VGA
Price excludes VAT
249.00€
Sale price
Price excludes VAT
249.00€
Regular price
Total with VAT (23%): 306.27€
Shipping calculated at checkout.

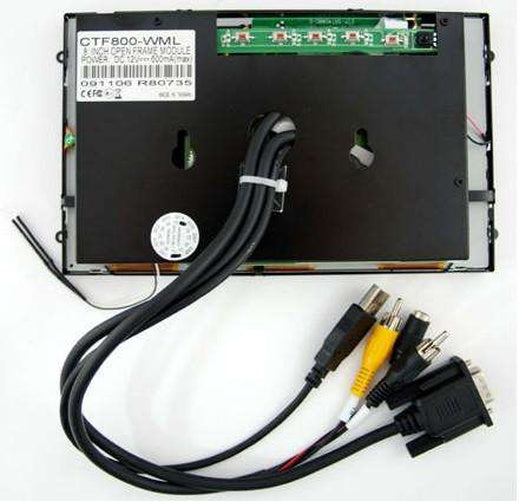

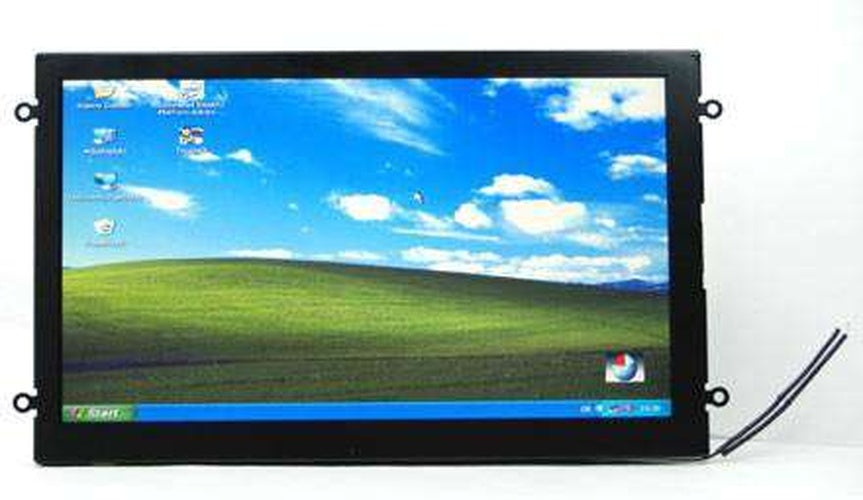

8" TFT Monitor CTF800-WML Open-Frame, 500nits brightness and LED-Backlight technology, designed with a robust metal frame that enables stable installation. The individual modules (Mainboard, touchscreen controller, power inverter and button frame) can be mounted away from the rear, allowing them to be positioned elsewhere. This makes it easier to install the connection cables and reduces the display thickness.
Additional information:
The touchscreen functionality allows you to control your PC easily. The bright VGA display ensures maximum readability and exceptional clarity.
An AC adapter for domestic use and a car cigarette-lighter adapter are included.
The CTF800-WML can be used with any PC / MAC equipped with VGA and USB ports.
The touchscreen functionality allows you to control your PC easily. The bright VGA display ensures maximum readability and exceptional clarity.
An AC adapter for domestic use and a car cigarette-lighter adapter are included.
The CTF800-WML can be used with any PC / MAC equipped with VGA and USB ports.
Includes driver CD, compatible with:
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
Specifications:
| Screen size | 8.0" digital |
| Aspect ratio | 16:9 widescreen TFT display |
| Dot resolution | 2400x480= 1,152,000 dots |
| Physical resolution | 800x480 |
| Supported resolutions | 640x480-1920x1200 (also, e.g., 1366x768) |
| Colour configuration | RGB stripe |
| Brightness | 500 nits |
| Contrast | 300:1 |
| Operating temperature | -30°C to 85°C |
| Power input | DC 9-30V |
| Power consumption | Max. 10W |
| Video system | 2x video inputs (PAL/NTSC) 1x VGA input |
| Dimensions | 195.4 x 119.5 x 32.6 mm Display : 174 x 105 mm |
| Video input signal | 1.0Vp-p, composite video |
| Features | Full-function OSD control (English) Auto Power On/Off LED backlight Autodimmer |
| What is included? | - 8.0" VGA Open-Frame TFT touchscreen with video support |
| - Power adapter for EU 230V | |
| - Cigarette lighter adapter | |
| - Touchscreen driver CD | |
| - Manual |
