Monitor 8' CTFHD800-WML HDMI
Price excludes VAT
305.00€
Sale price
Price excludes VAT
305.00€
Regular price
Total with VAT (23%): 375.15€
Shipping calculated at checkout.

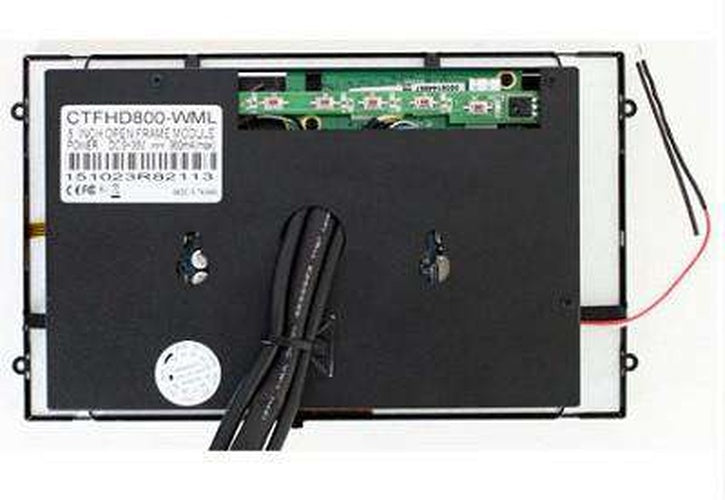

8" CTFHD800-WML HDMI monitor Open-Frame, with 500nits brightness, LED backlight technology, and a resolution of 1024x600. Built from robust metal, ensuring stable installation. The individual modules (motherboard, touchscreen controller, power inverter, and button frame) can be mounted away from the rear, allowing them to be positioned elsewhere. This facilitates connection cable installation and reduces the display thickness.
Additional Information:
The touchscreen functionality allows you to control your PC easily. The bright HDMI display ensures maximum readability and exceptional clarity.
An AC adapter for domestic use and a car cigarette-lighter adapter are included.
The CTFHD800-WML can be used with any PC / MAC equipped with HDMI and a USB port.
The touchscreen functionality allows you to control your PC easily. The bright HDMI display ensures maximum readability and exceptional clarity.
An AC adapter for domestic use and a car cigarette-lighter adapter are included.
The CTFHD800-WML can be used with any PC / MAC equipped with HDMI and a USB port.
Driver CD included, compatible with:
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat, Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat, Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
Specifications:
| Screen size | 8.0" digital |
| Aspect ratio | 16:9 widescreen TFT display |
| Dot resolution | 2400x480= 1,152,000 dots |
| Physical resolution | 1024x600 |
| Supported resolutions | 640x480-1920x1200 (also e.g. 1366x768) |
| Color configuration | RGB stripe |
| Brightness | 500 nits |
| Contrast | 300:1 |
| Operating temperature | -30°C to 85°C |
| Power input | DC 9-36V |
| Power consumption | Max. 10W |
| Video system | 2x video inputs (PAL/NTSC) 1x HDMI input |
| Dimensions | 195.4 x 119.5 x 32.6 mm Display: 174 x 105 mm |
| Video input signal | 1.0Vp-p, composite video |
| Features | Full-function OSD control (in English) Automatic power on/off LED backlight Autodimmer |

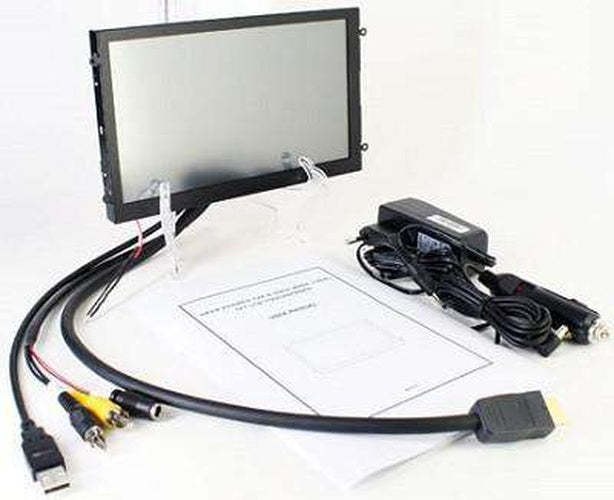

| Package contents | - 8.0" HDMI Open-Frame TFT touchscreen with video support |
| - Power adapter for EU 230V | |
| - Cigarette lighter adapter | |
| - Touchscreen driver CD | |
| - Manual |
