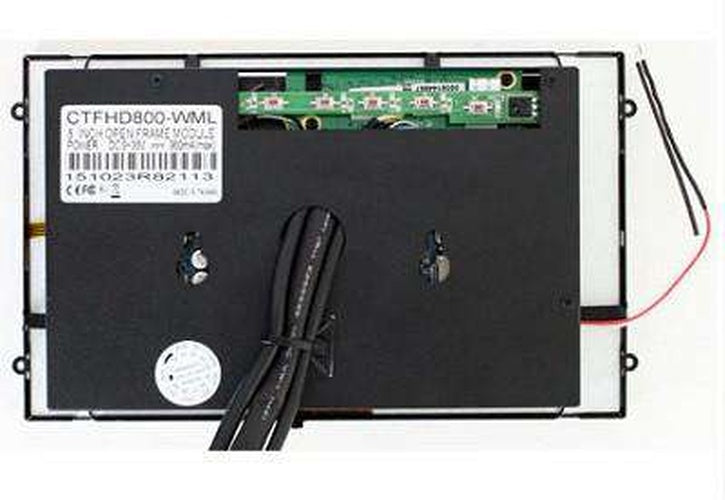

8' CTFHD800-WMS Monitor (HDMI, 1024x600, 1000 nits, Transflective Pro)
Price excludes VAT
423.00€
Sale price
Price excludes VAT
423.00€
Regular price
Total with VAT (23%): 520.29€
Shipping calculated at checkout.
| Specifications | |
| Screen size | 8.0" digital |
| Aspect ratio | 16:9 widescreen TFT display |
| Dot resolution | 2400x480= 1,152,000 dots |
| Physical resolution | 1024x600 |
| Supported resolutions | 640x480-1920x1200 (also, e.g., 1366x768) |
| Color configuration | RGB stripe |
| Brightness | 1000 nits |
| Contrast | 300:1 |
| Operating temperature | -30°C to 85°C |
| Power input | DC 9-36V |
| Power consumption | Max. 10W |
| Video system | 2x video inputs (PAL/NTSC) 1x HDMI input |
| Dimensions | 195.4 x 119.5 x 32.6 mm Display : 174 x 105 mm |
| Video input signal | 1.0Vp-p, composite video |
| Features | Full-featured OSD control (English) Automatic power on/off LED backlight Autodimmer |

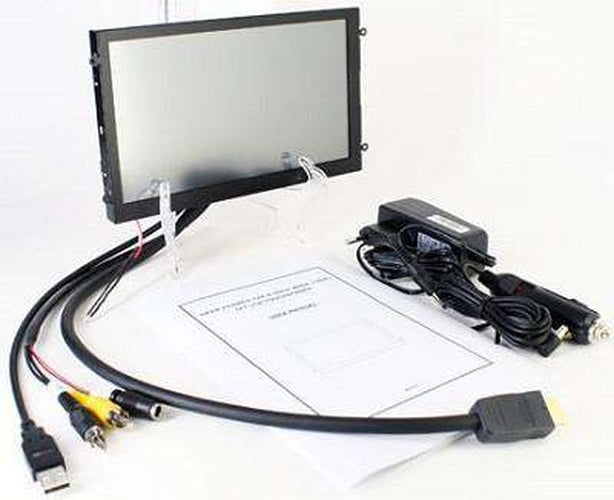

| Package contents | - 8.0" HDMI Open-Frame TFT touchscreen with video support |
| - Power adapter for EU 230V | |
| - Cigarette lighter adapter | |
| - Touchscreen Driver-CD | |
| - Manual |
