Panel PC 15.6' D151-11KS-7600U (Kaby Lake i7-7600U 4M, 3.90 GHz)
Price excludes VAT
1,650.00€
Sale price
Price excludes VAT
1,650.00€
Regular price
Total with VAT (23%): 2,029.50€
Shipping calculated at checkout.
15.6' Panel PC with Intel® Kaby Lake i7-7600U processor
D151-11KS
- 21.5" TFT LCD with a service life of 30,000 hours
- IP65 front protection and fanless design
- Slim Panel PC with PCAP touch
- 7th-generation Intel® Core-I processors
- Supports several optional modules: webcam, NFC/RFID, barcode
Slim & Sleek Design
with powerful performance
Versatile peripherals
Easy installation of peripherals (webcam, RFID, barcode, MSR..)
Fast & easy assembly
Low power consumption and fanless design
Atom & Core-I fanless design in a slim system
Dust & water-resistant design
Display & touch
Rich I/O
Multi-Display
Wide-range power input
Cable management
VESA mounting solution
VESA mounting: 100 x 100 mm
| Model | CPU | VGA | DisplayPort | HDMI | USB 3.0 / 2.0 | Line-out / Mic-in | RS232 | LAN | Wi-Fi / BT | Power |
|---|---|---|---|---|---|---|---|---|---|---|
| D151-11KS-3965U | Celeron 3965U | 0 | 1 | 1 | 4 / 0 | 1 combo jack | 2 | 2 | Optional | DC-in 8~24V |
| D151-11KS-7100U | Core i3-7100U | 0 | 1 | 1 | 4 / 0 | 1 combo jack | 2 | 2 | Optional | DC-in 8~24V |
| D151-11KS-7300U | Core i5-7300U | 0 | 1 | 1 | 4 / 0 | 1 combo jack | 2 | 2 | Optional | DC-in 8~24V |
| D151-11KS-7600U | Core i7-7600U | 0 | 1 | 1 | 4 / 0 | 1 combo jack | 2 | 2 | Optional | DC-in 8~24V |
| D151-11KS (D151-11KS) Specifications | |||
|---|---|---|---|
| MECHANICAL | MOUNTING | VESA 100 / Stand | |
| DIMENSIONS (W X D X H) | 400 x 250 x 44 mm | ||
| WEIGHT | 4.8kg (10.58 lb) | ||
| LCD | DISPLAY TYPE | 15.6" TFT-LCD | |
| MAX. RESOLUTION | 1366 x 768 | ||
| MAX. COLORS | 16.2M (8 bit / color) | ||
| LUMINANCE (cd/m2) | 500 | ||
| VIEWING ANGLE (H/V) | 170° / 160° | ||
| LED BACKLIGHT LIFETIME (hrs) | 50,000 | ||
| TOUCH SCREEN | TYPE | P-CAP | |
| TOUCH SCREEN | True-flat 10-point | ||
| SYSTEM | PROCESSOR | 7th Gen Intel® Kaby Lake-U i3-7100U (Dual Core, 3MB Cache, 2.40 GHz) / option: 7th Gen Kaby Lake celeron 3965U / i5-7300U / i7-7600U / option: 6th Gen Skylake celeron 3955U / i3-6100U / i5-6300U / i7-6600U | |
| CHIPSET | Integrated Intel® SoC | ||
| SYSTEM MEMORY | DDR4 2133 / 2400MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) | ||
| ETHERNET | Intel® I219-LM Giga LAN + Intel® I211-AT Giga LAN | ||

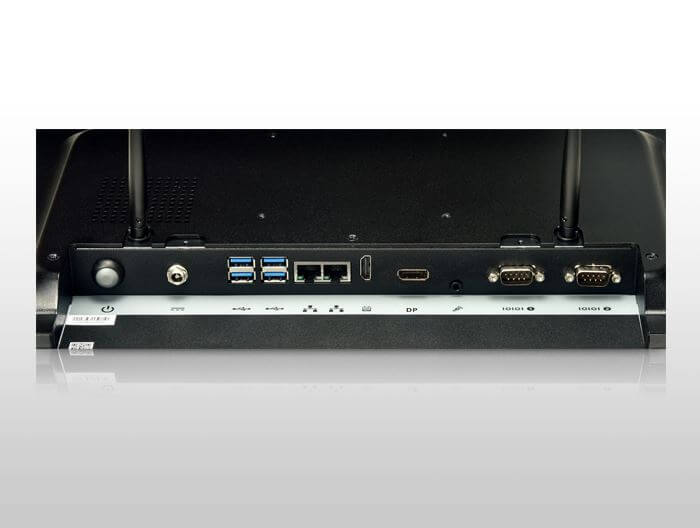

| I/O PORTS | 2 x RJ45 / 1 x audio jack (Line-out + Mic-in combo) / 1 x RS232 / 1 x RS232 / 422 / 485 / 1 x DisplayPort 1.2 / 1 x DC jack / 4 x USB 3.0 / 1 x HDMI 1.4 | ||
| EXPANSION SLOT | M.2 2230 E key (PCIe, USB 2.0) / Full-size Mini PCIe (PCIe / USB / SATA) | ||
| STORAGE | 1 x SATA 2.5” HDD / SSD bay | ||
| STEREO SPEAKER | 2 x 2W | ||
| OS SUPPORT | 7th Gen Kaby Lake: Windows 10 64bit, Linux (support available upon request) / 6th Gen Skylake: Windows 7 32 / 64bit | ||
| WATCHDOG TIMER | 1~255 steps programmable by software | ||
| POWER REQUIREMENTS | POWER INPUT | DC-in 8~24V | |
| POWER ADAPTER | AC to DC / DC19V / 3.4A / 65W adapter | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0~ 40°C (32 ~ 104°F) | |
| STORAGE TEMPERATURE | -20 ~ 60°C (-4 ~ 140°F) | ||
| STORAGE HUMIDITY | 10% ~ 95% @40°C, non-condensing | ||
| VIBRATION RESISTANCE | Operating random vibration test, 5-500Hz, 0.3 Grms, with HDD | ||
| SHOCK RESISTANCE | Operating: 50 G peak (3 ms duration) | ||
| EMC | CE / FCC Class A | ||
| FRONT PANEL PROTECTION | IP65 compliant | ||
| PACKING LIST | PACKAGE | 1 x Driver CD / 1 x Quick Installation Guide / US + EU power cord / 1 x power adapter (19V, 65W, DC jack type) / 1 x Panel PC / 1 x cable cover / 1 x screw kit / 2 x antennas | |
