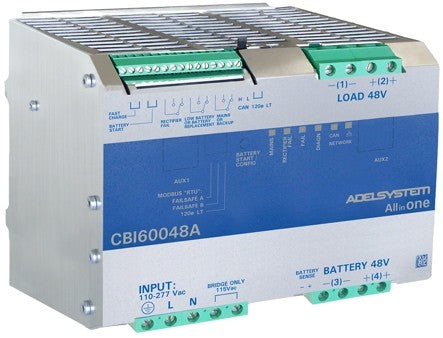

DC-UPS CBI60048A All In One Modbus TCP/IP (48V / 12.5A)
CBI60048A
All-in-one DC-UPS power supply with Modbus TCP/IP, SNMP and HTTPS, 48V 10A (max. 12.5A)
- Input: single-phase 115 – 230 - 277 Vac
- Selectable output load: 48 VDC 10 A (max. 12.5 A)
- Output battery charging: 48 VCC 12,5 A
- Suitable for the following battery types: flooded lead-acid, sealed lead-acid, lead-gel, Ni-Cd and lithium-ion
- Automatic battery status diagnostics, battery runtime test function (battery internal impedance)
- IUoU charging curve, constant voltage and current
- Four charging stages: boost, start-up, trickle, recovery
- Protected against short circuits and reverse polarity
- Signal output for: battery fault, mains power, rectifier fault
- Ethernet: SNMP V3, Modbus TCP/IP, HTTPS
- DIN-rail and wall mounting
The CBI60W series, with integrated Ethernet SNMP, Modbus TCP/IP and HTTPS protocols, is the new DC-UPS All In One module with output voltages of 12V or 24V.
The module design delivers the same reliable performance as the current DC-UPS CBI All In One line.
The CBI60W All In One series comprises:
- Power Supply
- Backup Module
- Battery Charger
- Battery Tester
The CBI60W series is based on Adelsystem Battery Care technology:
- Specific battery charging profiles (Lead Acid, AGM, GEL, NiCd, NiMh, Li-Ion and LiFePO4);
- Temperature-compensated charging;
- Deep discharge protection;
- Charging current limiter;
- Battery tester (battery connection, reverse polarity, short-circuited cells, poor internal impedance);
- Battery state-of-health monitoring
ETHERNET integration for remote monitoring
The Ethernet SNMP, Modbus TCP/IP and HTTPS interfaces allow users to remotely access internal DC-UPS parameters through IoT equipment. A number of important operating parameters are transmitted in real time. The interface allows users to:
- Monitor parameters;
- Configure parameters;
- Log events and data;
- Receive alarm notifications.
For example, the operator can remotely monitor the following parameters in real time:
- AC input voltage;
- DC output load voltage, current and power, and output load state;
- Battery voltage, current and internal resistance
- Receive alarms concerning mains, device and battery failures.
Based on the received data, the user can improve system efficiency and optimize the system's energy consumption as effectively as possible.
Internal WEBSERVER
The CBI60W series has its own internal webserver, which can be accessed using its IP address.
Using the IP address, the user can manage the DC-UPS configuration through the Adelviewsystem interface.
Load switch and relay configuration
The load output is fully configurable, and the CBI60W series allows the user to enable or disable the output load according to the application type.
• Switch OFF the load using a command issued through the webserver or an external push button
• Switch OFF the load as soon as AC mains power is present
• Switch ON the load as soon as AC mains power fails (emergency lighting)
• Power the load for a specified period of time
• Power the load in cyclic operation; the load switches off and on cyclically and autonomously according to the configured timings
• Option to connect load activation to an external push button
The relay contacts can be freely configured according to the user's requirements. The following can be configured:
• Fault relay
• AC mains relay
• Rectifier relay
• Buzzer acoustic alarm
Multicolor LED
The CBI60W series incorporates multicolour LEDs and an acoustic alarm for quick and easy recognition of critical conditions inside the panel.
