Mitac Pluto E230 (Apollo Lake J3355, 2* LAN Gigabit, RS232)
The new MiTAC Pluto E230 was designed with the latest generation of CPUs — Intel Apollo Lake. Its new architecture provides even greater capacity for tasks and applications.
The E230 features a simple 2.2 lts fanless design with the flexibility to adapt to any workspace or environment, whether deployed as an Embedded system, Mini-PC or Box PC. The VESA system saves space by allowing installation on the rear of monitors or TVs. This flexibility also includes a wide range of ports, such as USB 3.0, Dual Ethernet RJ45, VGA, HDMI and 2x COM ports, for connecting a variety of peripherals. Storage supports high-density HDDs, while the 2 M.2 slots accommodate SSDs and WiFi modules for effortless connection to Wi-Fi and Bluetooth networks. D-Sub and HD-out enhance the visual experience with support for dual monitors.
- SODDR3 RAM
| CPU | Intel Apollo Lake, J3355 (2M Cache, up to 2.5GHz, Dual Core) | |
| PCB | Proprietary, 6-layer, 182mm x 185mm | |
| Memory | DDR3L, 1867MHZ, (2 x So-DIMM) | |
| LAN | Realtek RTL8111G GLAN x1 | |
| Audio | Realtek ALC-662 | |
| Storage | HDD SATA / SATA DOM / M.2 | |
| M.2 | 1 x 2280, 2260 & 2242 M.2 (with PCIe x 1 channel, USB & SATA III signal) 1 x 2230 M.2 (with PCIe x 1 channel & USB signal) |
|
| Front I/O |

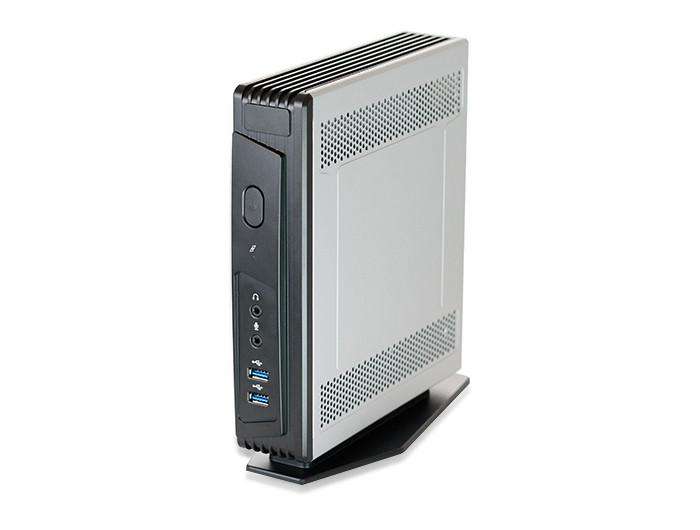

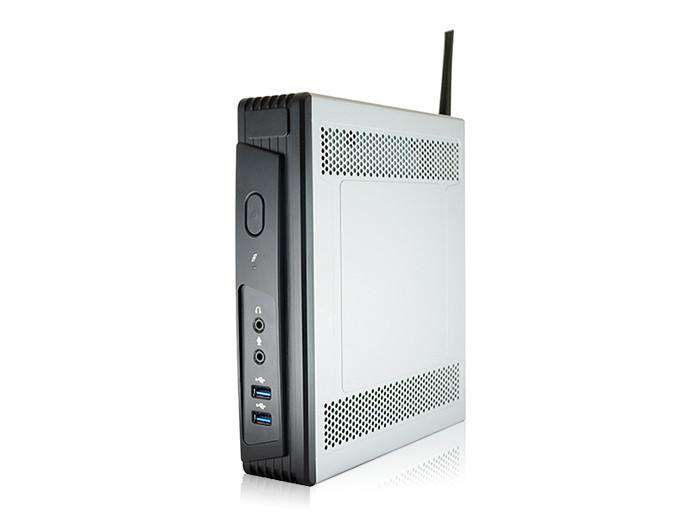

2 x USB 3.0, MIC-in, Headphone-out, power button | |
| Rear I/O |

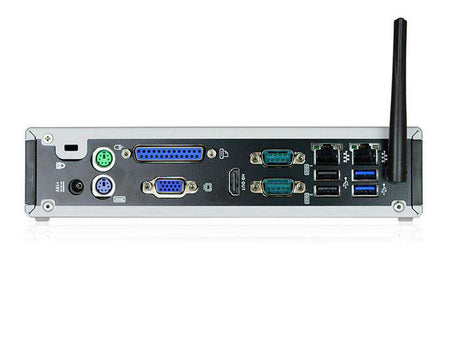

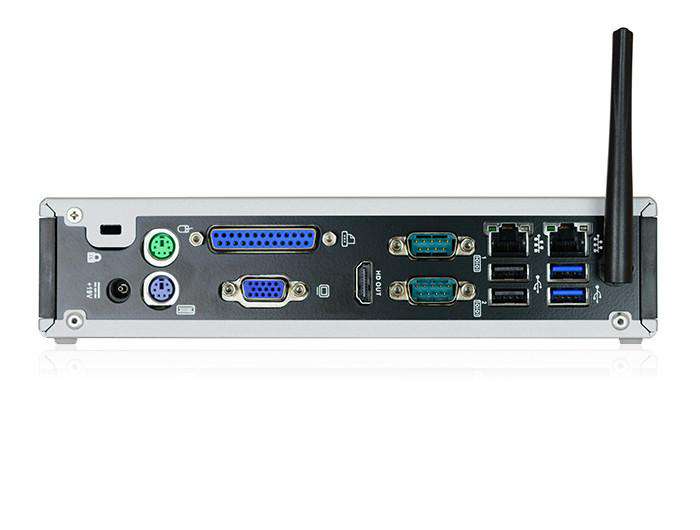

2 x PS/2, 2 x USB3.0, 2 x USB2.0, 1 x Ethernet RJ45, 1 x VGA, 1 x HDMI, 2 x serial ports, 1 x DC jack, 1 x Kensington lock | |
| Environment | Fanless System temperature: 10 Degree C~ 40 Degree C Humidity: 20%~85%, condensing Motherboard temperature: 0~60 Degree C |
|
| VESA |
Yes, using a VESA bracket Supports the 75 x75mm and 100 x 100mm standards) |
|
| Stand | For use in a vertical orientation | |
