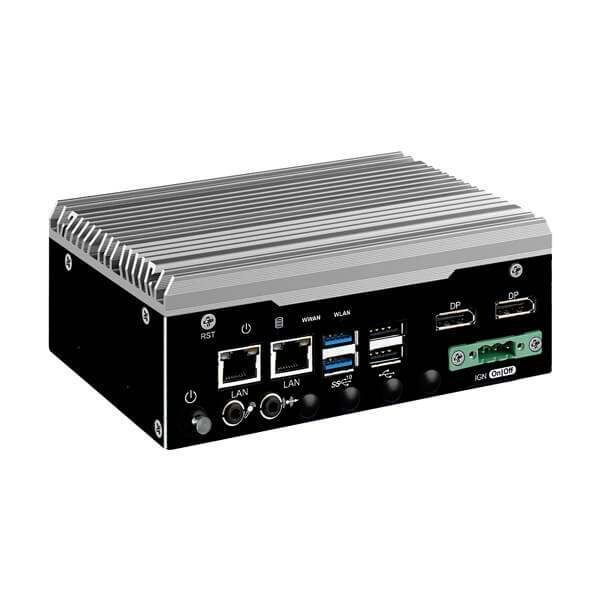

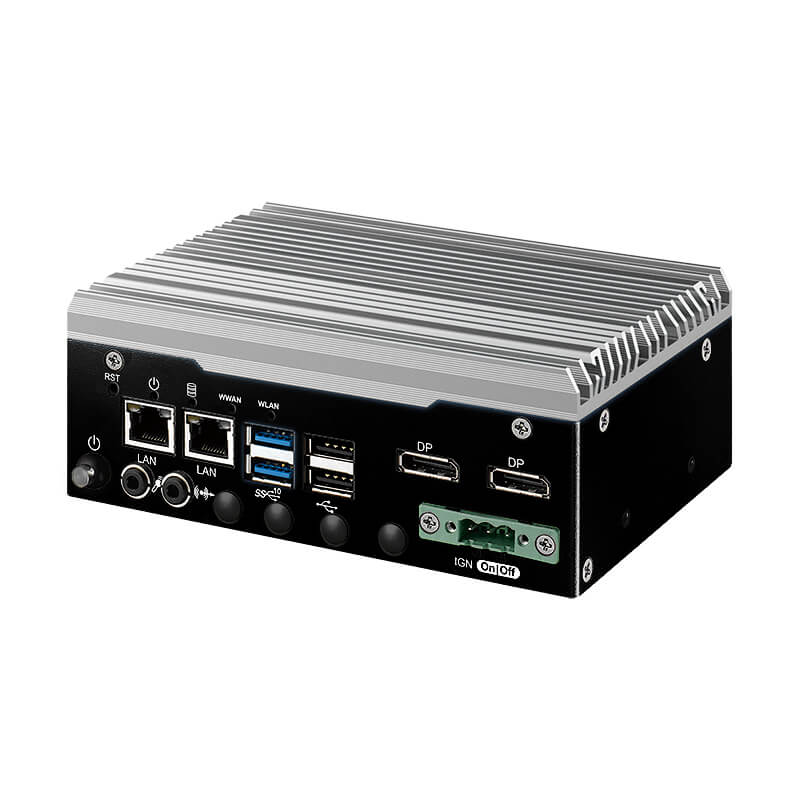

EverFocus eIVP-TGU-IV-V0000 (11 Gen. Intel Core i5, 9-55V)
Price on request
eIVP-TGU-IV-V0000
11th Gen. Intel® Core™ i5 in-vehicle system
- Fanless in-vehicle system
- 11th Gen. Intel® Core™ i7/i5/i3/Celeron® U-series
- DDR4 3200MHz memory, up to 32GB
- Dual DP display ports, with up to 4K resolution
- Multiple USB ports support data transfer rates of up to 10Gbps
- 2.5GigE LAN x 1 supports Intel® Time Sensitive Networking (TSN) for real-time data synchronization
- GigE LAN x 1 supports iAMT; TPM 2.0 supported
- 9V to 55V wide-range DC power input with ignition control
- Nano SIM card socket for 5G/WiFi/4G/3G/LTE/GPRS/UMTS
- Optional support for full-function SUMIT A, B expansions; CE, FCC, EN50155, EN50121-3-2
| Model name | eIVP-TGU-IV-V0000 |
| Processor | 11th Gen. Intel® Core™ i7/i5/i3/Celeron® U-series |
| Main memory | DDR4 3200MHz SO-DIMM x 1, up to 32GB |
| Format | H.264 / H.265 |
| Video Input | Based on the installed EverFocus AiO NVR software: up to 8ch |
| Video Output | DP x 2, up to 4096 x 2304 @60Hz |
| Audio Input | MIC x 1 |
| Audio Output | Line-out x 1 |
| Format | H.264 / H.265 |
| Resolution | 1920 x 1080 at 30fps (NTSC) / 25fps (PAL) |
| Internal HDD Bay | SATA III (6Gbps) x 1 |
| Removable SSD tray | n/a |
| RAID | n/a |
| CE / CFast / mSATA slot | n/a |
| Ethernet | LAN1: Intel® Ethernet Controller I219LM GigE LAN supports iAMT LAN2: Intel® Ethernet Controller I225-IT supports 2.5 GigE LAN |
| Wi-Fi | Optional |
| 4G / 5G | Optional |
| GPS / Gsensor | Optional |
| Alarm Input | 16-bit GPIO |
| Alarm Output | 16-bit GPIO |
| Front I/O Panel | Reset switch x 1 LED indicators (power, HDD, WWAN, WLAN) x 4 2.5GbE LAN x 1; GbE LAN x 1 USB2.0 x 2; USB3.2 Gen2 x 2 DisplayPort x 2; Power button x 1; Antenna port x 4 Audio jack (Mic-in, Line-out) x 2 Remote power on/off switch and IGN control x 1 |
| Rear I/O Panel | Nano SIM card slot x 1 COM serial port (RS232/422/485) x 2 DC power terminal block x 1 Antenna port x 2 Antenna port x 2 (on the right-side panel) |
| Expansion Slot | M.2 Key B Socket (3042/3052) x 1 M.2 Key E Socket (2230) x 1 SUMIT Slot x 2 (optional, with a customized chassis) |
| Power Supply | DC 9-55V, with ignition pin |
| Dimensions (W x D x H) | 5.92" x 4.18" x 2.24" / 150.4 x 106.2 x 57.0mm (without bracket) |
| Gross Weight | 2.87lb (1.3kg) |
| Operating Temperature | -40°F ~ 167°F (-40°C ~ 75°C) @15W TDP CPU |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Storage Humidity | 5%~95%, non-condensing; 95%@75°C |
| Vibration/Shock | IEC 60068-2-64; SSD: 5Grms, 5Hz to 500Hz, 3 axes |
| Certification | CE, FCC, EN50155, EN50121-3-2 |
