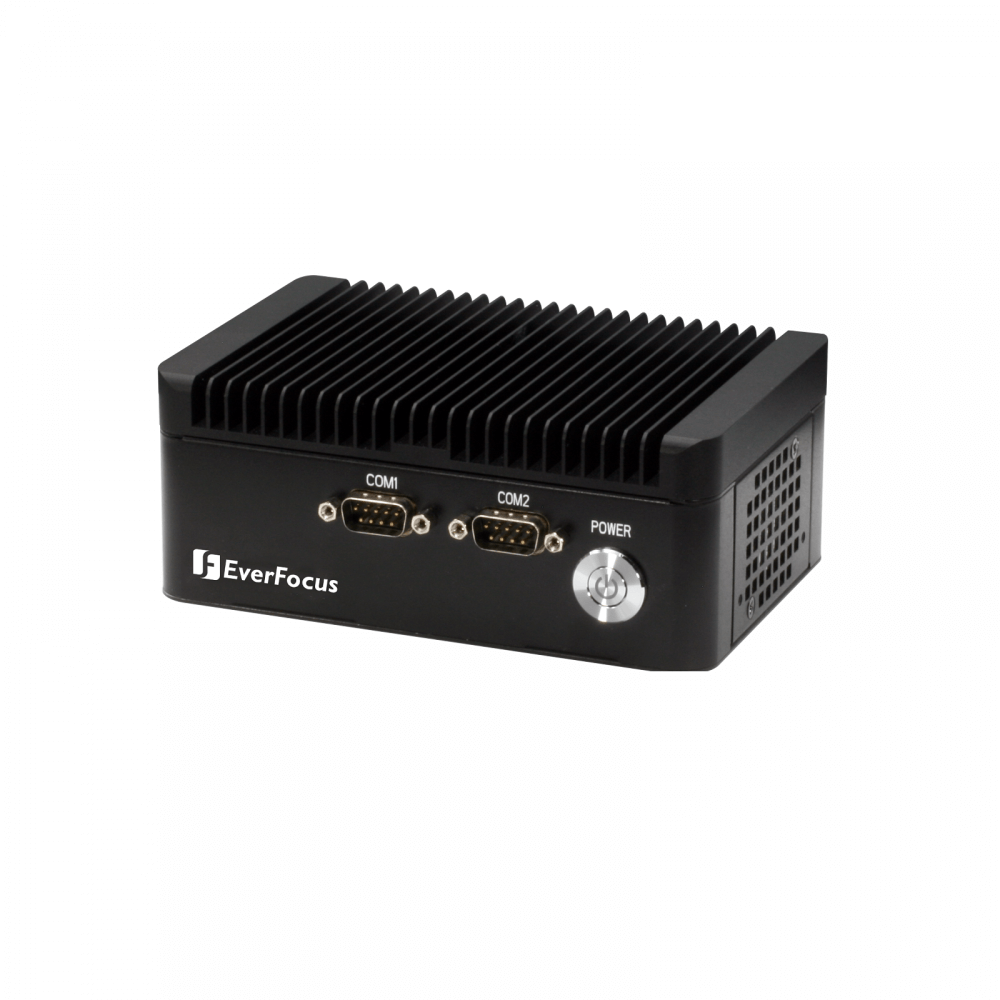

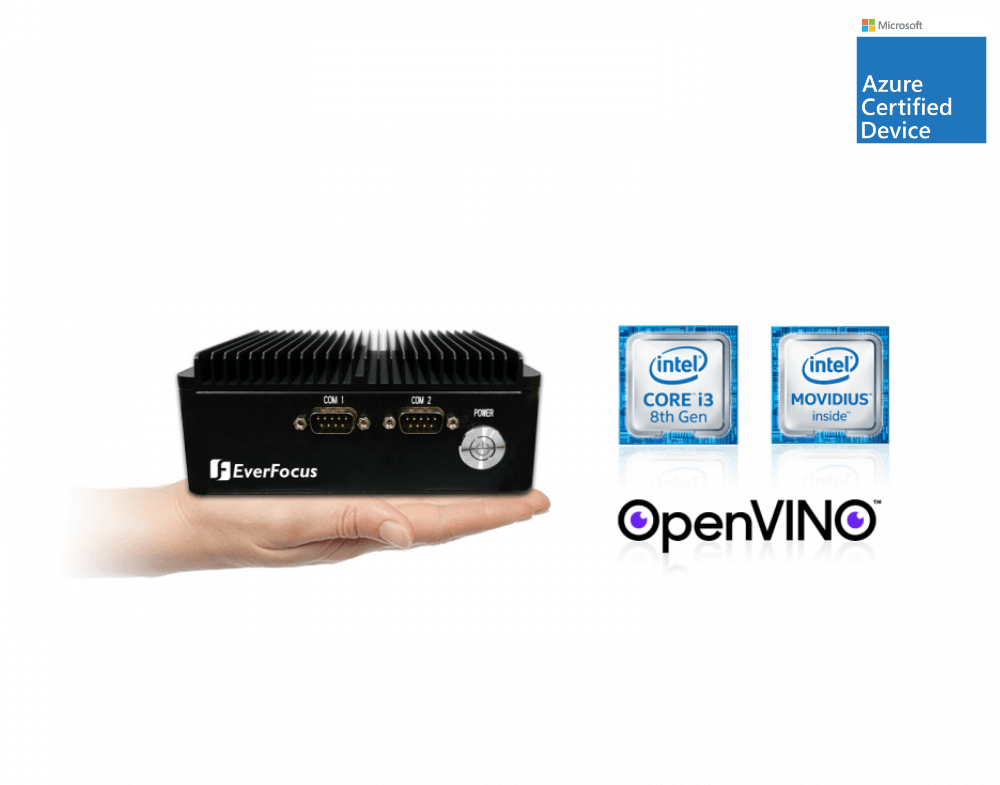

EverFocus eIVP-WHU-AI-D0000 (Intel Core i3-8145UE, MyriadX VPU)
Price on request
eIVP-WHU-AI-D0000
AI Box with Intel® Core™ i3-8145UE
• Built-in 8th generation Intel® Core™ i3-8145UE processor
• Built-in Intel® Movidius™ Myriad™ X VPU
• DDR4 2400MHz SO-DIMM x 1 (up to 32GB)
• Industrial-grade Realtek® GbE LAN x 2
• RS-232/422/485 x 2 (optional)
• HDMI 1.4b display output x 2
• USB 3.2 Gen 2 x 2, USB 2.0 x 2
• SATA 6.0 Gb/s x 1
• Full-size mSATA/mPCIe x 1 (selectable via BIOS), M.2 2230 (E key) x 1, CE, FCC Class A
| Model name | eIVP-WHU-AI-D0000 |
| Processor | Intel® 8th Generation Core™ i3 SoC i3-8145UE (2C, 2.2GHz, up to 3.9GHz) |
| Main memory | DDR4 2400MHz SO-DIMM x 1 (Max. 32GB) |
| Internal HDD Bay | mini-PCIe (Full) x 1 (PCIe[x1] x 1, USB3.2/2.0, SATA) SATA 6.0Gb/s x 1, (5V power) |
| Ethernet | Realtek 8111GbE 10/100/1000Mbps x 2 |
| Front I/O Panel | RS-232/422/485 x 2 (optional) |

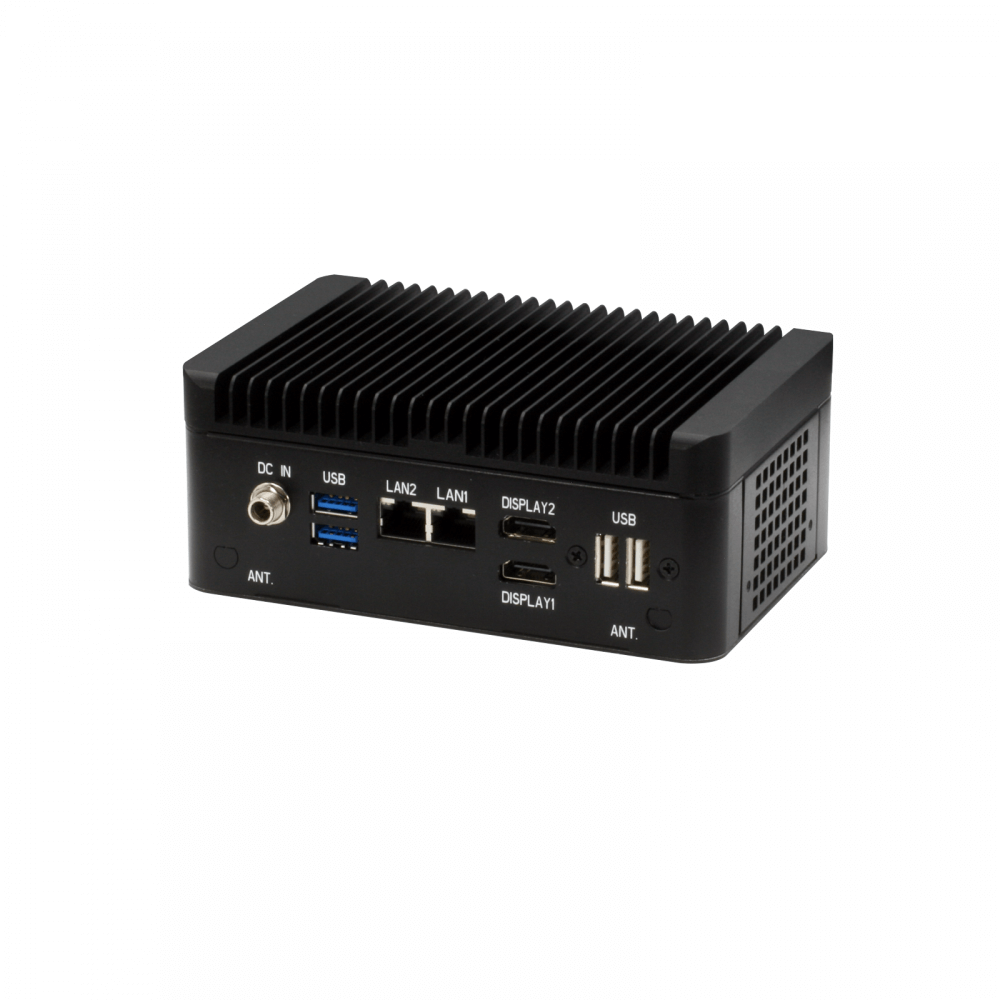

| Rear I/O Panel | USB 3.2 Gen 2 (10Gbps) x 2 USB 2.0 x 2 (pin header) |
| Expansion Slot | M.2 2230 E key x 1 (PCIe/USB signal only) SMBUS/I2C/LPC/eSPI x 1 |
| Power supply | Lockable DC 12V |
| Dimensions (W x D x H) | 5.9" x 3.94" x 2.36" (150mm x 100mm x 60mm) |
| Gross weight | 635g / 1.4lb |
| Operating temperature | 32°F ~ 122°F (0°C ~ 50°C) |
| Storage temperature | -40ºF ~ 176ºF (-40ºC ~ 80ºC) |
| Storage humidity | 0% ~ 90% relative humidity, non-condensing |
| Certification | CE, FCC |
