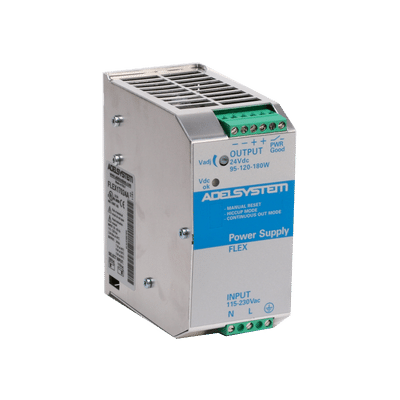

FLEX17024A Power Supply (24 Vdc, 7.5A, up to 180W)
Price excludes VAT
77.88€
Sale price
Price excludes VAT
77.88€
Regular price
Total with VAT (23%): 95.79€
Shipping calculated at checkout.
FLEX17024A
Single-phase power supply, 24 Vdc, 7.5A, 120 ~ 180W
- Single-phase input: 115-230 Vac
- Output: 24 Vdc at 60 °C
- Efficiency of up to 89%
- Overload without shutdown
- Continuous power from 120 to 180W
- Montagem Din Rail
- Compact format
- 3-year warranty
The FLEX industrial power supply range offers 1, 2 and 3-phase inputs, with power ratings of up to 500W, nominal current of up to 25A and power flexibility reaching 50% of the nominal current In.
The declared ambient operating temperature ranges from -25 to 70°C. Three short-circuit overload protection modes (Hiccup Mode, Fold Back and Restart after shutdown), combined with the compact size and compliance with EN 60204-1 for the Safety of Electrical Equipment of Machines, change how power is supplied to the control panel. In addition to the 115-230Vac single-phase units, 230-500Vac two-phase units are available, allowing only one product to be used and stocked.
Main features:
- Competitive price/performance ratio.
- 3 protection functions: Hiccup Mode, Fold Back and Restart after shutdown.
- Operating range at the declared ambient temperatures: 40,50 and 60 °C (suitable for any type of application).
- A single product for 230-400-500 Vac.
- Compliance with EN 60204-1 and EN/IEC 60529 (IP20 protection class).
- DIN-rail mounting.
- Extremely compact size.
The 3 protection functions:
- Hiccup Mode (Standard)
- Fold Back (Continuous Output Mode)
- Restart after shutdown (Manual Reset)
