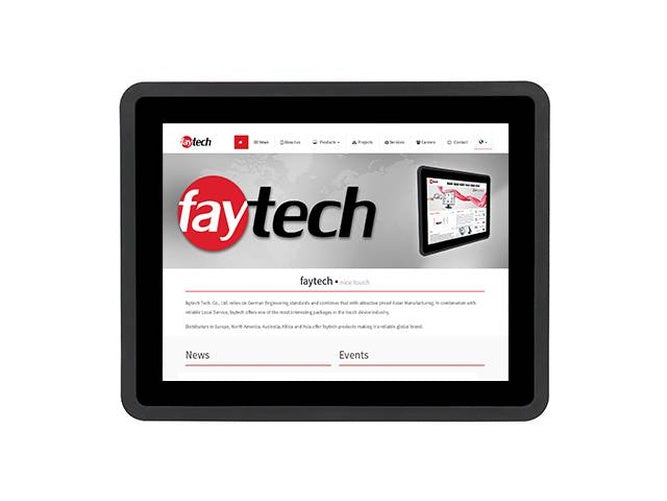

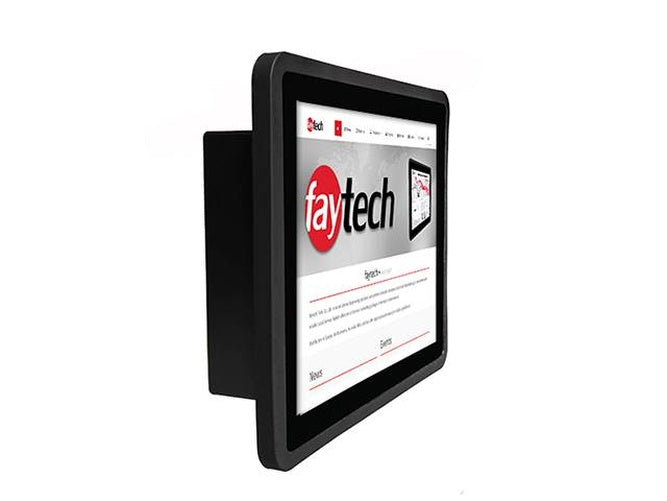

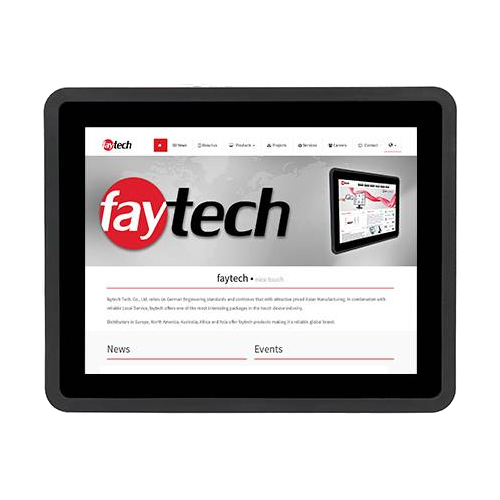

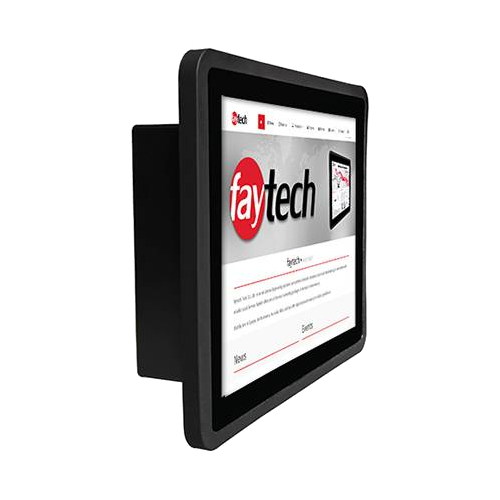

Monitor 8' FT08TMCAPOB Capacitive Touch Optically bonded
Price excludes VAT
256.00€
Sale price
Price excludes VAT
256.00€
Regular price
Total with VAT (23%): 314.88€
Shipping calculated at checkout.
FT08TMBCAPOB
8' Capacitive Touch Monitor with Optical Bonding
- Driver support for all current operating systems.
- Panels with A + quality LED backlighting.
- 10-finger capacitive touch panel with multi-touch.
- Patented IP65-rated front with silicone seal.
- Available with the most common video connectors.
- High-resolution LCD panels.
- Reinforced front glass.
- 2-year warranty
IP Rating
Protection
IP65 Front/ IP40 Back
LCD Panel
Display Size
8"
Display Format
4:3
Physical Resolution
1024x768
Brightness
300 cd/m²
Optical bonding
Optical Bonding
Coverglass
1,1mm
Operation / Mechanical
Housing
Rubber Frame
Backlight Type
Edge Backlight
Touch Panel
Touch Technology
Capacitive
Power
Power supply
12V

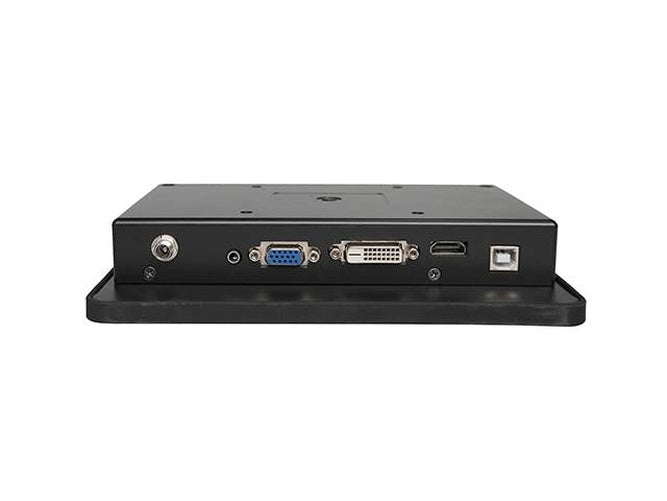

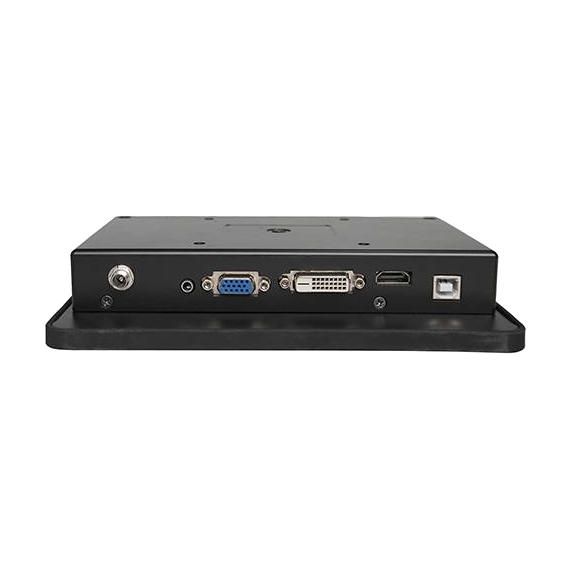

External connections
HDMI
1
VGA
1
DP
0
USB 2.0
0
USB 3.0
0
| Product name | 8" Capacitive Touch Monitor (OB) |
| Model number / EAN number | FT08TMCAPOB / 6920734008100 |
| IP65 front / IP40 rear |
| Screen diagonal (inch/cm) | 8/20.32 |
| Active display area size (cm) | 16.20×12.20 |
| Aspect ratio | 4:3 |
| Physical resolution | 1024×768 |
| Maximum supported resolution | 1920×1080 |
| Displayed colours | 16.7M |
| Brightness (cd/m) | 250 |
| Contrast | 700:1 |
| Typical response time Tr/ Tf (ms) | 6/14 |
| Horizontal/vertical viewing angle (°) | 150/150 |
| Backlight / Backlight lifetime (hours) | LED / 20,000 |
| Touch technology | Projected Capacitive 10-point Multitouch |
| Touch panel drivers | Windows; Linux; Mac; Android |
| Touch life (contacts) | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemical etching) |
| Operating temperature (°C) | -10 ~ +60 |
| Humidity range (RH) | 10% - 90% |
| Net weight (kg) | 0.95 |
| Gross weight (kg) | 2.00 (incl. carton packaging) |
| Housing material | Rubber front case, plastic back case |
| Housing (mm) L × W × H | 201.0 × 160.5 × 35.7 |
| Cut-out for clamp supports (mm) L × H | N/A |
| Number of clamps required | N/A |
| Mounting | VESA 75 |
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC output |
| Operating voltage (V) | 12 |
| Power consumption (W) | 6 |
| Stand-By Consumption (W) | <1 |
| Video | 1x HDMI 1.3 (incl. HDCP) |
| 1x DVI-D | |
| 1x VGA | |
| Audio | 1x PC-Audio |
| Touch connector | 1x USB |
| Connectors | 1x 12V DC-IN |
| Power supply (see Power section) |
| Quick installation guide |
| Cables - VGA, USB touch, audio cable |
