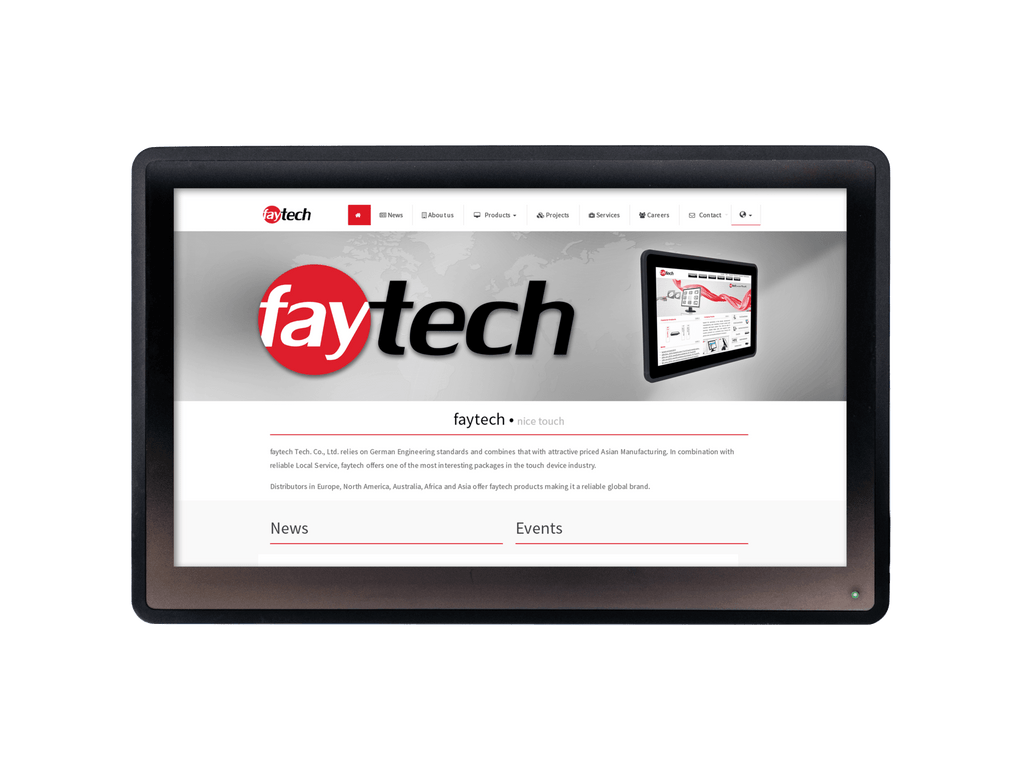

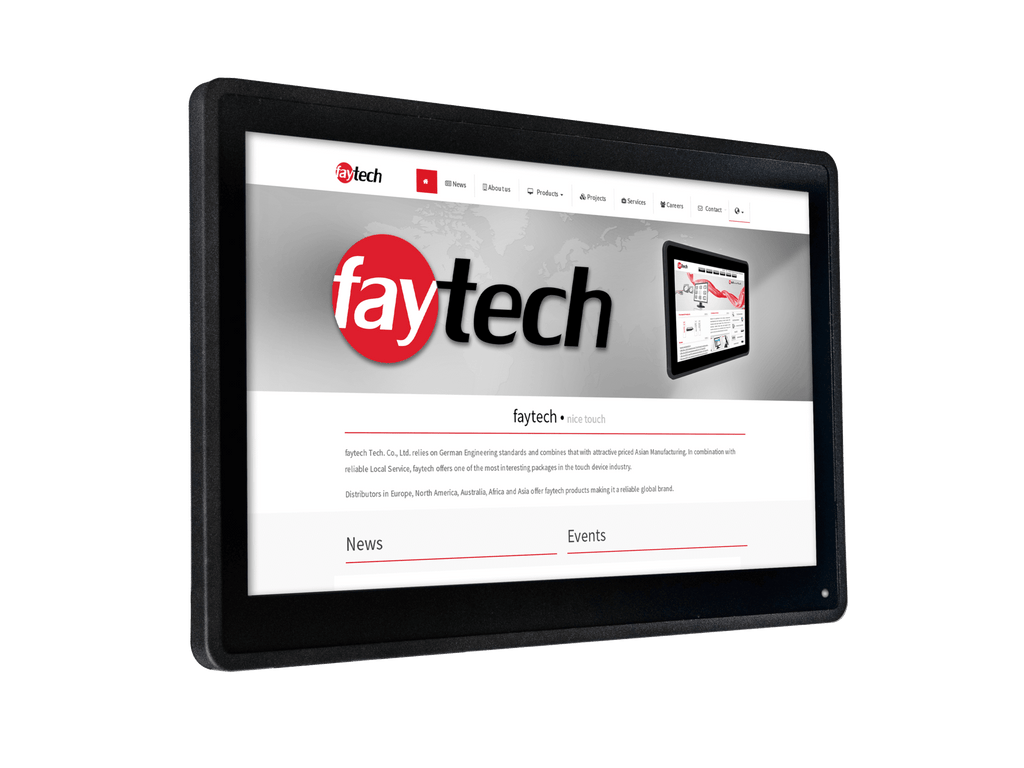

Panel PC 15.6' FT156I5CAPOB (i5-7300U, 8GB RAM/ SSD 128GB)
Price excludes VAT
1,825.00€
Sale price
Price excludes VAT
1,825.00€
Regular price
Total with VAT (23%): 2,244.75€
Shipping calculated at checkout.
FT156I5CAPOB
- Intel® Core™ i5-7300U
- 8GB RAM, SSD 128GB Industrial
- Supports Win10 and Linux (32Bit, 64Bit)
- Anti-glare surface treatment
- 1,1 mm cover glass with 7H surface hardness
- 10-point capacitive multi-touch panel
- Patented IP65 front protection with silicone seal
- Optically bonded
- Supports mounting clamps
- Integrated W-LAN
- 2-year warranty
| Product name | 15.6" capacitive touch PC (i5-7300U) |
| Article Code / EAN Number | FT156I5CAPOB-V2 / 6920734011568 |
| CPU | Intel® Core™ i5-7300U Kaby Lake Processor |
| Graphics GPU | Intel® HD Graphics |
| Audio | Realtek ALC3236 audio CODEC |
| Memory | 8GB DDR4 non-ECC (max. 16GB) |
| Storage | faytech Industrial 128GB SSD |
| Network | 2x Realtek PCIe GB LAN 8111G (1000Mbps), M.2 E-key Wi-Fi module |
| Driver Support | Win10; Linux; 32Bit/64Bit |
| Pre-installed OS | Linux Ubuntu |
| IP65 Front / IP40 Rear |
| Screen Diagonal (Inch/cm) | 15.6/39.6 |
| Active Screen Area Size (cm) | 34.42×19.36 |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920×1080 |
| Maximum external display resolution — DP | 1920×1200 |
| Displayed Colours | 262K |
| Brightness (cd/m²) | 250 |
| Contrast | 800:1 |
| Typical Response Time Tr/ Tf (ms) | 15/15 |
| Horizontal/Vertical Viewing Angle (°) | 170/170 |
| Backlight / Backlight Lifetime (hours) | LED / min. 15,000 |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Antiglare (chemically etched) |
| Operating temperature (°C) | -10 ~ +60 |
| Humidity range (RH) | 10% - 90% |
| Net weight (kg) | 4.40 |
| Gross weight (kg) | 6.30 (incl. cardboard packaging) |
| Housing material | Rubber front case, aluminium IPC back case |
| Housing (mm) L × W × H | 389.3 × 246.8 × 59.3 |
| Cut-out for clamp supports (mm) L × H | 271.0 × 218.0 |
| Number of clamps required | 4 |
| Mounting | VESA 100 |
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC output |
| Operating voltage (V) | 12 |
| Power consumption (W) | 34 |
| Stand-By Consumption (W) | <1 |
| 1x SO-DIMM, max. 16 GB, DDR4 1866/2133 non-ECC, single-channel memory |
| 3x RS232/RS485 COM connectors, switchable in BIOS |
| 2x LCD backlight control/LCD panel voltage box |
| 1x 5V/12V SATA power connector |
| 1x 12V DC power connector (2-pin) |
| 1x 4-pin SATA power connector |
| 1x S/PDIF output pin header |
| 1x 8-bit Digital I/O interface |
| 1x Line-out / Mic-in header |
| 1x front-panel box header |
| 1x Serial ATA 6Gb/s |
| 1x MIPI CSI connector |
| 1x LVDS box header |
| 2x USB 3.0 box headers |

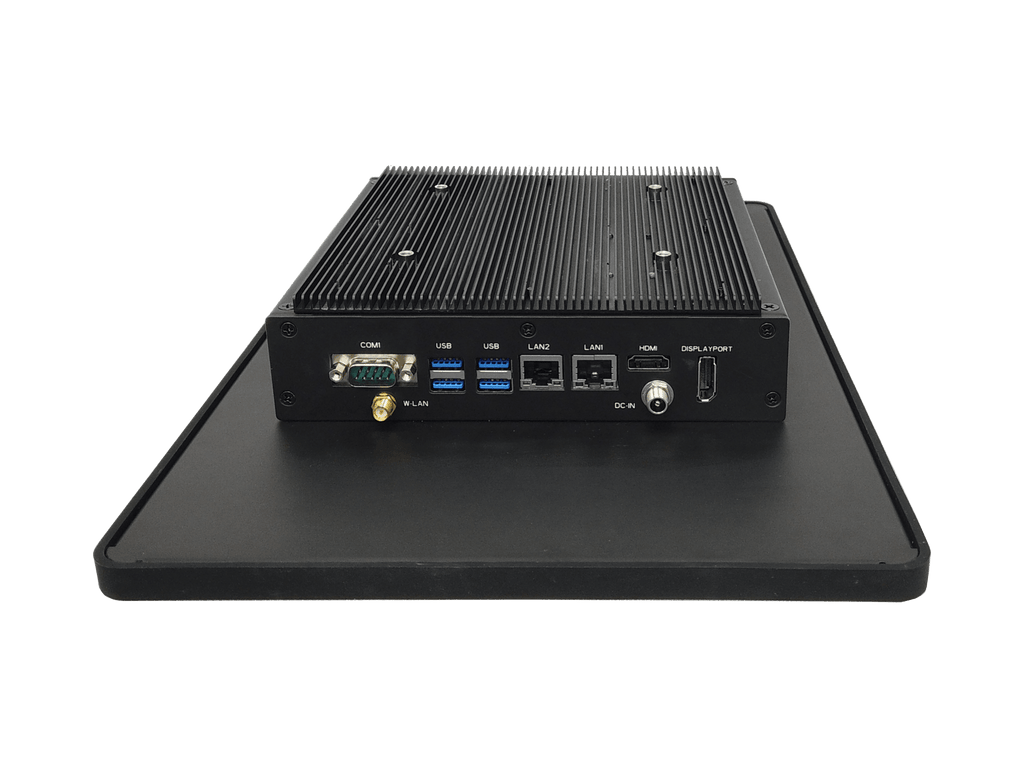

| 1x 12V DC-In (screw-lock) |
| 1x HDMI |
| 1x DisplayPort |
| 2x USB 3.0 ports |
| 2x USB 2.0 ports |

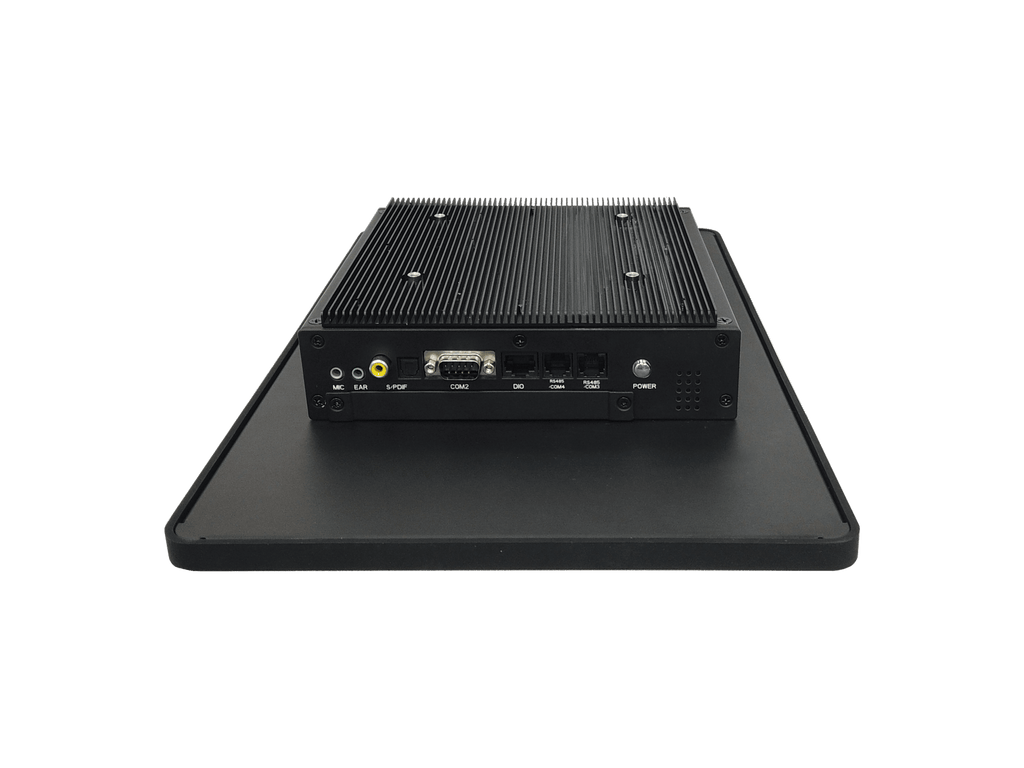

| 1x MIC-In & EAR-Out |
| 1x 8-PIN DIO as RJ45 |
| 1x W-LAN antenna connector (RP-SMA male) |
| 2x Full-PIN COM ports - RS232/485; 5V/12V |
| 2x 3-PIN COM ports - RX, TX, GND; RS232/485; 5V/12V |
| 2x 10/100/1000Mbit RJ45 ports |
| 1x S/PDIF-Out (1x Cinch, 1x Torx module) |
| 1x 2.5" module slot, replaceable SSD included |
| 1x full-size mSATA (occupied by SSD) |
| 1x M.2 E-Key slot (occupied by Wi-Fi card) |
| 1x SATA connector |
| 1x External PCIe x1 Straddle connector |
| Power supply (see Power section) |
| W-LAN antenna (RP-SMA female) |
| Quick installation guide |
| Standard Stand |
