• CPU Intel® Core™ i5-7300U
  • 8GB RAM / 128GB SSD
  • 17" Capacitive Touch Panel
  • Proteção IP65
  • DC 12V
com IVA
2,281.65€

sem IVA
1,855.00€
Sku: FT17I5CAPOB
Product Type: Panel-PC Alta Performance
Vendor: Faytech

FT17I5CAPOB

  • Intel® Core™ i5-7300U
  • 8GB RAM, SSD 128GB Industrial
  • Suporta Win10, Linux (32Bit, 64Bit)
  • Tratamento de superfície anti-reflexo
  • Vidro de cobertura de 1,1 mm com dureza de superfície 7H
  • Painel Multi Touch Capacitivo de 10 toques
  • Protecção IP65 frontal patenteada com selo de silicone
  • Optically bonded
  • Suporta grampos de fixação
  • W-LAN integrada
  • Garantia de 2 anos
Specs
Caraterísticas
IP Rating
Protection
IP65 Front/ IP40 Back
PC System
CPU
Intel i5-7300U Kaby Lake
RAM
8GB
Memory
128GB
Operating System
Ubuntu
LCD Panel
Display Size
17"
Display Format
5:4
Physical Resolution
1280x1024
Brightness
300 cd/m²
Optical Bonding
Optical Bonding
Coverglass
1,1mm
Operation / Mechanical
Housing
Rubber Frame
Backlight Type
Edge Backlight
Touch Panel
Touch Technology
capacative
Power
Power Supply
12V
External connections
HDMI
1
VGA
0
DP
1
USB 2.0
0
USB 3.0
4
Especificações

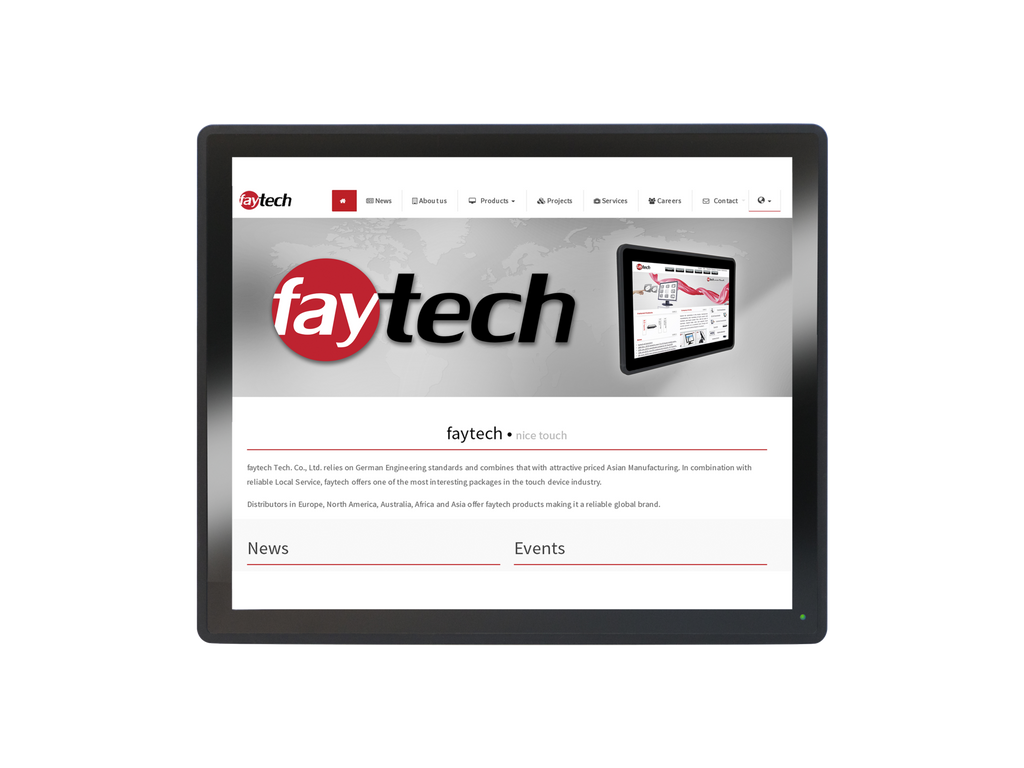

Product name  17" Capacitive Touch PC (i5-7300U)
Article code / EAN number FT17I5CAPOB / 6920734000142



CPU Intel® Core i5-7300U Processor Kaby Lake
Graphic GPU Intel® HD Graphics
Audio Realtek ALC3236 Audio CODEC
Memory 8GB DDR4 non-ECC (max. 16GB)
Storage faytech Industrial 128GB SSD
Network 2x Realtek PCIe GB LAN 8111G (1000Mbps), M.2 E-key Wi-Fi module
Driver Support Win10; Linux; 32Bit/64Bit
Pre-installed OS Linux Ubuntu



IP65 Front / IP40 Back



Screen diagonal (Inch/cm) 17/43.18
Display active screen size (cm) 33.79×27.04
Aspect ratio 5:4
Physical resolution 1280×1024
External maximum showable resolution - DP 1920×1200
Colours displayed 16.7M
Brightness (cd/m²) 250
Contrast 1000:1
Typical reaction time Tr/ Tf (ms) 3.8/1.2
Visual Angle horizontal/vertical (°) 170/160
Backlight / Backlight Lifetime (hours) LED / 30,000



Touch Technology Projected Capacitive 10-point Multitouch
Touch Connector USB
Touch Life (Contacts) Unlimited
Surface Hardness 7H
Surface Treatment Anti-glare (chemical etched)



Operating Temperature (°C) -10 ~ +60
Humidity Range (RH) 10% - 90%
Net weight (kg) 4.05
Gross weight (kg) 5.75 (incl. cartonage)
Housing material Rubber front case, Aluminum IPC back case
Housing (mm) L × W × H 393.0 × 333.0 × 70.0
Cut-out for clamp supports (mm) L × H 369.0 × 316.0
Amount of clamps required 6
Mounting VESA 100



Power Indicator Green LED
Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 12
Power Consumption (W) 37
Stand-By Consumption (W) <1



1x SO-DIMM, max. 16 GB, DDR4 1866/2133 non-ECC, Single channel memory
3x RS232/RS485 COM connectors, switchable in BIOS
2x LCD Backlight control/LCD panel voltage box
1x 5V/12V SATA power connector
1x 12V DC power connector (2-pin)
1x 4-pin SATA power connector
1x S/PDIF output pin header
1x 8-bit Digital I/O interface
1x Line-out / Mic-in header
1x Front Panel box header
1x Serial ATA 6Gb/s
1x MIPI CSI connector
1x LVDS box header
2x USB 3.0 box header



1x 12V DC-In (screwable)
1x HDMI
1x DisplayPort
2x USB 3.0 ports
2x USB 2.0 ports
1x MIC-In & EAR-Out
1x 8-PIN DIO as RJ45
1x W-LAN antenna connector (RP-SMA male)
2x COM port Full-PIN - RS232/485; 5V/12V
2x COM port 3-PIN - RX, TX, GND; RS232/485; 5V/12V
2x 10/100/1000Mbit RJ45 Ports
1x S/PDIF-Out (1x Cinch, 1x Torx module)
1x 2.5" module slot, changeable SSD included



1x mSATA full size (occupied by SSD)
1x M.2 E-Key Slot (occupied by Wifi card)
1x SATA connector
1x External PCIe x1 Straddle connector



Power Supply (see Power section)
W-LAN antenna (RP-SMA female)
Short Installation Manual
Standard Stand
