Panel PC 17' Android FT17V40CAPOB (ARM V40, 2GB/ 8GB Flash, OB)
Price excludes VAT
660.00€
Sale price
Price excludes VAT
660.00€
Regular price
Total with VAT (23%): 811.80€
Shipping calculated at checkout.
FT17V40CAPOB
- CPU Allwinner V40 Cortex® A7 QuadCore 1GHz
- 2GB RAM; 8GB EMMC FLASH
- Android 6.0 pre-installed
- 1.1mm front glass with 7H hardness
- Anti-reflective surface treatment
- Touchscreen optically bonded to the LCD
- 10-point multi-touch capacitive touchscreen
- Patented IP65-rated front panel with silicone seal
- Integrated W-LAN
- 2-year warranty
IP rating
Protection
IP65 front/IP40 rear
PC system
CPU
Arm V40
RAM
1GB
Memory
8GB Flash
Operating system
Android
LCD panel
Display size
17"
Display format
5:4
Physical resolution
1280x1024
Optical Bonding
Optical Bonding
Coverglass
1,1mm
Operation / Mechanical
Housing
Rubber Frame
Backlight Type
Edge Backlight
Touch Panel
Touch Technology
Capacitive
Power
Power Supply
8-18V

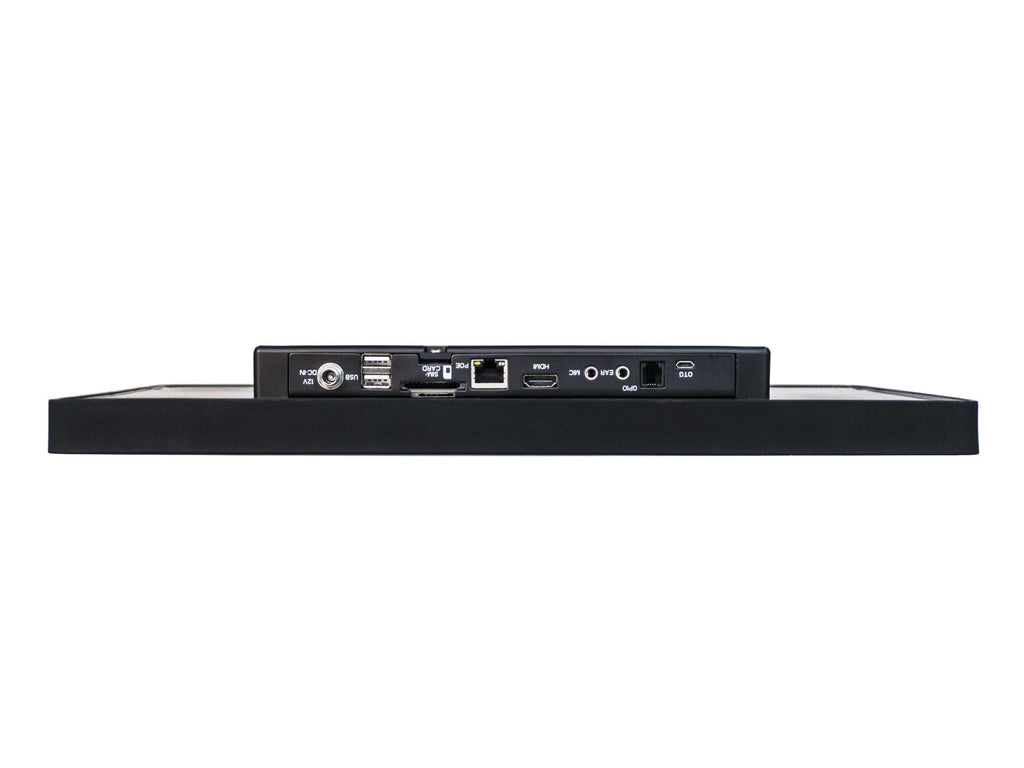

External Connections
HDMI
1
VGA
0
DP
0
USB 2.0
2
USB 3.0
0
| Product name | 17" Embedded Touch PC |
| Article Code / EAN Number | FT17V40CAPOB / 6920734017805 |
| CPU | Allwinner® V40 QuadCore |
| Chipset | Cortex™ A7 |
| GPU | ARM® Mali400 Mp2 compliant with OpenGL ES 2.0/1.1 |
| Audio | Integrated HI-FI 100dB audio codec, dual analog mic and 2x6W amplifier |
| Memory | 1GB DDR3 |
| Storage | 8GB EMMC Flash |
| Network | 10/100Mbits network; W-LAN |
| OS | Android 6.0 |
| IP65 Front / IP40 Rear |
| Screen Diagonal (Inch/cm) | 17/43.18 |
| Active Screen Area Size (cm) | 33.79×27.04 |
| Aspect Ratio | 5:4 |
| Physical Resolution | 1280×1024 |
| Maximum external display resolution — HDMI | 1920×1080 |
| Displayed Colours | 16.7M |
| Brightness (cd/m²) | 250 |
| Contrast | 1000:1 |
| Typical Response Time Tr/ Tf (ms) | 3.8/1.2 |
| Horizontal/Vertical Viewing Angle (°) | 170/160 |
| Backlight / Backlight Lifetime (hours) | LED / 30,000 |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (chemical etching) |
| Operating temperature (°C) | -10 ~ +60 |
| Humidity range (RH) | 10% - 90% |
| Net weight (kg) | 5.10 |
| Gross weight (kg) | 6.10 (incl. carton packaging) |
| Housing material | Rubber front housing, plastic rear housing |
| Housing (mm) L × W × H | 393.0 × 340.0 × 44.0 |
| Cut-out for clamp supports (mm) L × H | 369.0 × 316.0 |
| Number of clamps required | 6 |
| Mounting | VESA 100 |
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC output |
| Operating voltage (V) | 8~18 |
| Power consumption (W) | 16 |
| Stand-By Consumption (W) | <1 |
| 1x SD card |
| 1x SIM card |
| 2x Serial |
| 4x TTL UART |
| 2x USB 2.0 |
| 18/24Bit LVDS |
| 6x GPIO |
| 1x Line-In |
| 1x Line-Out |
| 1x amplifier for 2x 6W loudspeakers |
| 1x SATA port |
| 1x RTC |
| 1x CAN bus |
| 1x 8-18V DC-In (screwable) |
| 1x HDMI |
| 2x USB 2.0 |
| 1x USB OTG |
| 1x 10/100Mbits RJ45 port |
| 1x Audio-In |
| 1x Audio-Out |
| 1x Serial |
| 1x GPIO RJ11 port |
| 1x SD-card slot |
| 1x SIM-card slot |
| 1x W-LAN antenna connector (RP-SMA male) |
| 1x MiniPCIe |
| Power Supply (see Power section) |
| W-LAN Antenna (RP-SMA female) |
| Short Installation Manual |
| Standard Stand |
