21.5 'FT215TMBCAP Capacitive Touch OB Monitor
Price excludes VAT
588.00€
Sale price
Price excludes VAT
588.00€
Regular price
Total with VAT (23%): 723.24€
Shipping calculated at checkout.
FT215TMBCAPOB

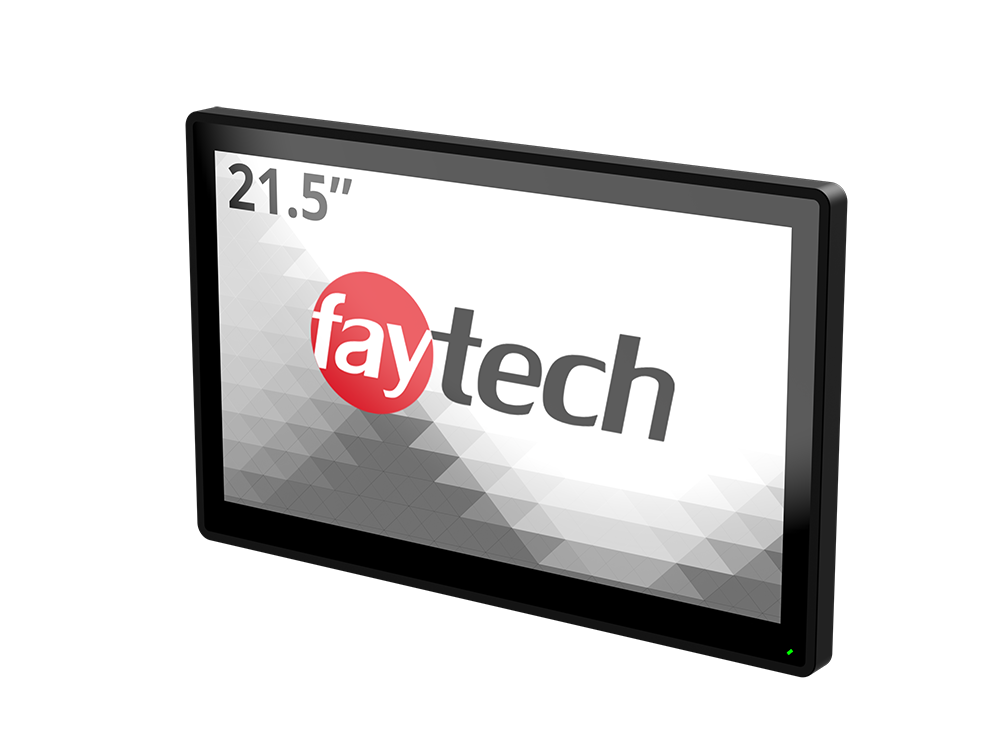

21.5' optically bonded capacitive touch monitor
- Anti-reflective surface treatment (chemical etching).
- 10-touch capacitive multi-touch.
- 1,1 mm cover glass with 7H surface hardness.
- Touch panel optically bonded to the LCD panel.
- Patented IP65 front protection with silicone seal
- Integrated audio (2x2w)
- 2-year warranty
| IP Rating | Protection | IP65 Front/ IP40 Back |
| LCD Panel | Display size | 21,5" |
| Display format | 16:9 | |
| Physical resolution | 1920x1080 | |
| Brightness | 300 cd/m² | |
| Optical bonding | Optical bonding | |
| Coverglass | 1,1mm |
| Operation / Mechanical | Housing | Rubber frame |
| Backlight type | Edge backlight | |
| Betriebstemperatur | ||
| Storage Temperature |
| Touch Panel | Touch Technology | Capacitive |
| Cover Glass Surface |
| Power | Power Supply | 12V |
| External Connections | HDMI | 1 |
| VGA | 1 | |
| DP | 1 | |
| DVI | 0 | |
| USB 2.0 | 0 | |
| USB 3.0 | 0 |
| Product name | 21.5" Capacitive Touch Monitor (OB) |
| Article Code / EAN Number | FT215TMBCAPOB / 6920734022144 |
| IP65 front / IP40 rear |
| Screen diagonal (inch/cm) | 21.5/54.69 |
| Active display area size (cm) | 47.70×26.80 |
| Aspect ratio | 16:9 |
| Physical resolution | 1920×1080 |
| Maximum supported resolution | 1920×1200 |
| Displayed colours | 16.7M |
| Brightness (cd/m²) | 250 |
| Contrast | 1000:1 |
| Typical response time Tr/ Tf (ms) | 1.5/3.5 |
| Horizontal/vertical viewing angle (°) | 170/160 |
| Backlight / Backlight lifetime (hours) | LED / 40,000 |
| Touch technology | Projected Capacitive 10-point Multitouch |
| Touch panel drivers | Windows; Linux; Mac; Android |
| Touch life (contacts) | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemical etching) |
| Operating temperature (°C) | -10 ~ +60 |
| Humidity range (RH) | 10% - 90% |
| Net weight (kg) | 6.40 |
| Gross weight (kg) | 8.00 (incl. carton packaging) |
| Housing material | Rubber front case, plastic back case |
| Housing (mm) L × W × H | 532.0 × 331.0 × 46.0 |
| Cut-out for clamp supports (mm) L × H | 508.0 × 314.0 |
| Max. Wall Thickness for Clamp Supports (mm) | 5.0 |
| Number of Clamps Required | 6 |
| Mounting | VESA 100 |
| Power Indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC-Out |
| Operating voltage (V) | 12 |
| Power consumption (W) | 22 |
| Stand-By Consumption (W) | <1 |

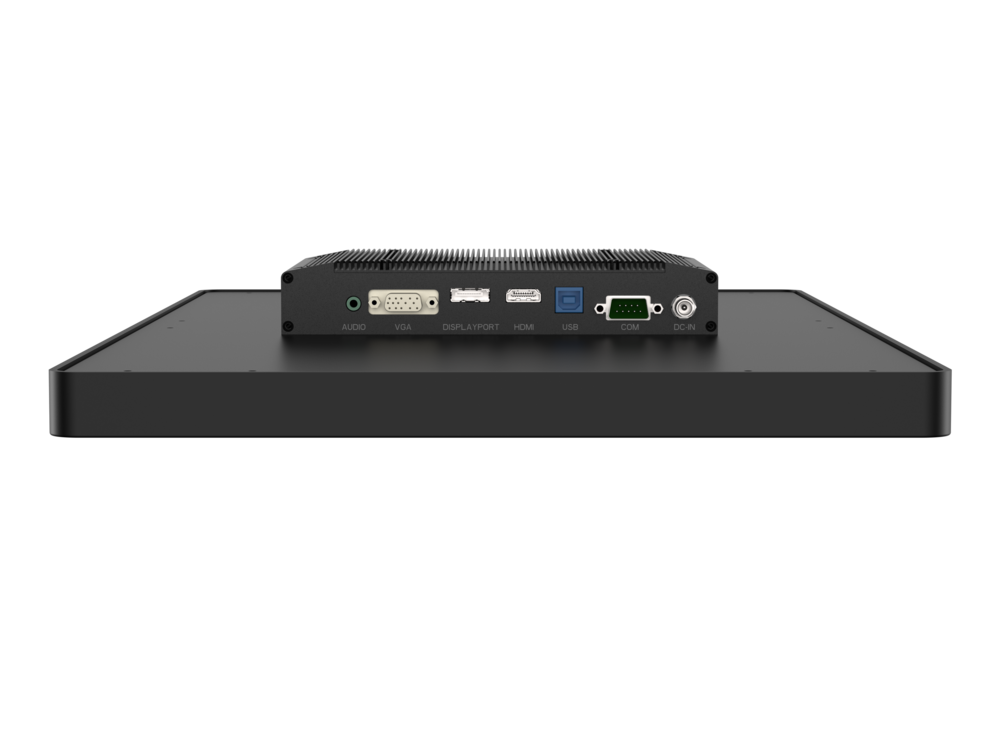

| Video | 1x HDMI 1.3 (incl. HDCP) |
| 1x DP | |
| 1x VGA | |
| Audio | 1x PC-Audio |
| Touch connector | 1x USB |
| Connectors | 1x 12V DC-In (screw-lock) |
| Power Supply (see Power section) |
| Quick Installation Guide |
| Cables — VGA, USB Touch, audio cable |
| Standard Stand |
